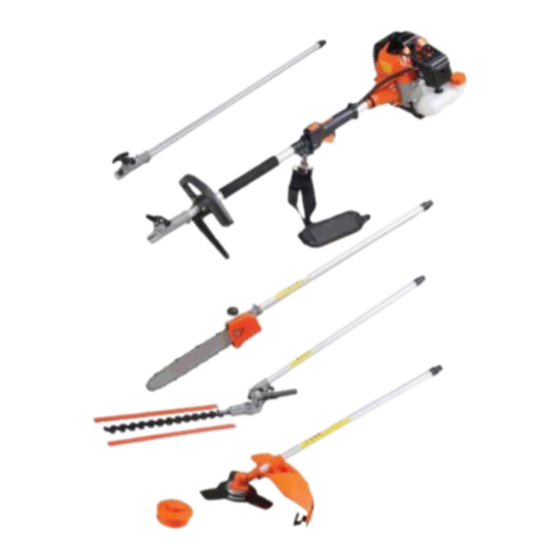

P1PE P5200MT User Manual

Garden multi tool
Hide thumbs Also See for P5200MT:

Advertisement

FOR YOUR SAFETY
You must read and understand
this manual before use.
Keep this manual for future reference.
1

Advertisement

Table of Contents
loading

Summary of Contents for P1PE P5200MT

  • Page 1 FOR YOUR SAFETY You must read and understand this manual before use. Keep this manual for future reference.
  • Page 2: Table Of Contents

    INDEX CONTENTS PAGE NO.S SAFETY 3 - 7 MACHINE SPECIFIC SAFETY 7 - 9 PART LOCATIONS ASSEMBLY 11 - 15 FUEL & OIL 16 - 17 STARTING PROCEDURE 17 - 21 STOPPING PROCEDURE OPERATING INSTRUCTIONS 22 - 26 MAINTENANCE 27 - 34 STORAGE &...
  • Page 3: Safety

    1. SAFETY General Safety Notes. The operator of the machine is responsible for, and has a duty of care in making sure that the machine is operated safely and in accordance with the instructions in this user manual. Keep the manual safe and pass it on if the machine is loaned or sold to another user.
  • Page 4 1.10 Carbon Monoxide (where applicable). 1.11 Carbon monoxide is a colourless and odourless gas. Inhaling this gas can cause death as well as serious long term health problems such as brain damage. 1.12 The symptoms of carbon monoxide poisoning can include but are not limited to the following;...
  • Page 5 1.24 ALWAYS clean up spills promptly using absorbent granules and a lidded bin. 1.25 ALWAYS dispose of waste fuels correctly. 1.30 Fueling/De-fueling (where applicable). CAUTION ALL FUELS ARE FLAMABLE 1.31 ALWAYS fuel and defuel in a well ventilated area outside of buildings. 1.32 ALWAYS wear correct, suitable and fit for purpose Personal Protective Equipment (PPE), suggested items are but not limited to safety gloves, overalls.
  • Page 6 1.50 Batteries (where present). 1.51 Batteries present a risk if they become damaged by the possible leaking of electrolyte. This electrolyte is an acid and can cause serious burn injuries. Care should be taken when working on or near them. NOTE the electrolyte may be in a liquid or gel form.
  • Page 7: Machine Specific Safety

    1.71 The operating noise of the machine can damage your hearing. Wear hearing protection such as earplugs or ear defenders to protect your hearing. Long-term and regular users are advised to have hearing checked regularly. Be especially vigilant and cautious when hearing ear protection because your ability to hear alarm warnings will be reduced.
  • Page 8 2.15 NEVER make adjustments or repairs with the machine running. 2.16 DO NOT use the machine if it is damaged. 2.17 NEVER remove any of the safety devices on this machine. 2.18 Check the area before use to ensure it is clear of any obstructions, cables or obstacles that may cause damage to the cutting heads.
  • Page 9 2.37 Do not rely exclusively on the safety devices built in to your saw. As a chain saw user you should take several steps to keep cutting jobs free from accident or injury. 2.38 With a basic understanding of kick-back you can reduce the element of surprise. 2.39 Keep a good grip on the saw with both hands.
  • Page 10: Part Locations

    3. PART LOCATIONS Loop Handle Choke Lever Suspension Point Air Filter Cover Stop Switch Cutting Attachment Guard Throttle Cable Angle Transmission Throttle Trigger Cutting Line Head Throttle Set Button Blade Main Drive Shaft Transmission Shaft Bolt Guide Bar Spark Arrester Saw Chain Starter Knob Chain Cover...
  • Page 11: Assembly

    4. ASSEMBLY CAUTION For OUTDOOR use ONLY. Petrol machinery produces carbon monoxide – a poisonous, colourless and odourless gas that can cause serious injury or death. Petrol is highly flammable, always handle with extreme care and in a well ventilated area. NOTE Images may vary depending on model.
  • Page 12 (3) Locking Knob (1) Lever (2) Locking Hole INSTALLING THE BRUSH CUTTER 3.15 Fix the cutting guard (1) to the shaft (2) using the screws (3) provided. (2) Shaft (1) Cutting Guard (3) Screws 3.16 Insert the allen key provided (1) into the gear case locking hole to prevent the shaft from rotating.
  • Page 13 INSTALLING THE GRASS TRIMMER 3.20 Insert the allen key provided (1) into the gear case locking hole to prevent the shaft from rotating. 3.21 Screw the nylon spool (2) onto the shaft thread if the spool is threaded. If the spool does not have a threaded centre hole, use the nylon nut and tighten securely (you will have to remove the spool from spool housing).
  • Page 14 3.26 To adjust the angle of the hedge trimmer blade, stop the engine. 3.27 Turn the lever (1) anti-clockwise. 3.28 Adjust the angle of the blades and tighten the lever clockwise to secure. (1) Lever INSTALLING THE PRUNER WARNING The saw chain has very sharp edges. For safety you MUST wear protective gloves. WARNING Pay attention to the correct direction of the saw chain.
  • Page 15 3.29 Loosen the cover nut (1) and remove the chain cover (2). 3.30 Mount the guide bar (3) and loop the saw chain (4) around the bar and sprocket (5). (3) Guide Bar (4) Saw Chain (5) Sprocket (1) Chain Cover Nut (2) Chain Cover 3.31 Fit the chain tensioner nut (1) into the lower hole of the guide bar.
  • Page 16: Fuel And Oil

    5. FUEL AND OIL WARNING All fuels are flammable and must be handled and stored correctly. Always ensure there is adequate ventilation when handling fuels. NOTE This machine is equipped with a two stroke engine and must always be run using a mixture of petrol and two stroke oil.
  • Page 17: Starting Procedure

    After starting the engine (see section 5) run the chain at medium speed and see if the chain oil has scattered off as shown in the image below. 6. STARTING PROCEDURE NOTE This machine is shipped without fuel/oil mix. Therefore you MUST fill the engine with the correct fuel/oil mix before operation.
  • Page 18 Push the primer bulb (1) 6 times or until you can see fuel in the clear pipe. (1) Primer Bulb Move the choke lever (1) to the closed position. (1) Choke Lever (2) Close Open Place the unit on flat level ground. Move the stop switch to the Run/Start position.
  • Page 19 WARNING This machine is equipped with a centrifugal clutch, so the cutting attachment will start to rotate as soon as the engine has started. When starting, place the machine on flat, clear ground to ensure the cutting head does not come in to contact with any obstacles. Once the engine has attempted to fire, move the choke lever downwards to open the choke and restart the engine.
  • Page 20 ADJUSTING THE THROTTLE CABLE NOTE You must only make adjustments after the engine has had time to warm up. 5.14 The normal amount of play is 1 to 2mm when measured at the carburetor end. 5.15 If the cable requires adjustment, remove the air filter housing to expose the adjustment screw.
  • Page 21: Stopping Procedure

    ADJUSTING IDLE SPEED NOTE You must only make adjustments after the engine has had time to warm up. 5.19 If the engine stalls when idling, you will need to adjust the idle adjusting screw. 5.20 The idle adjusting screw can be accessed via the back of the air filter housing next to the choke lever.
  • Page 22: Operating Instructions

    8. OPERATING INSTRUCTIONS WARNING Always wear the appropriate Personal Protective Equipment (PPE) when using this machine. Never lean over the rotating cutting head. Rocks or other debris could be thrown into your eyes or face and cause serious injury. WARNING Keep the cutting attachment guard in place at all times.
  • Page 23 Avoid thrown debris by sweeping from your left to your right. Use a slow, deliberate action to cut heavy growth. The rate of cutting motion will depend on the material being cut. Heavy growth will require a slower action than light growth. Never swing the machine hard as to lose your balance.
  • Page 24 7.13 When clearing a wide area, start working from your left and work towards the right to avoid the interference of cut grass. 7.14 The blade may be clogged by weeds if the engine speed is too low, or if the blade cuts too deeply into the weeds.
  • Page 25 For this reason you should always wear a helmet and face protector when using this machine. 7.27 To adjust the angle of the blades, STOP the engine. 7.28 Turn the lever (1) on the trimmer mechanism anti-clockwise to loosen. 7.29 Adjust the blade angle to the working position required.
  • Page 26 7.34 In order to stop the hanger position from changing. Turn up the extra part of the harness band back through the buckle. 7.35 When correctly adjusted, check the quick release. 7.36 While holding the machine securely in your right hand, press both sides of the buckle (1).
  • Page 27: Maintenance

    9. MAINTENANCE WARNING ALWAYS stop the engine and unplug the spark plug cap before doing any repairs or maintenance. Check and maintain fuel levels regularly and maintain the fuel / oil mix to the correct ratio. Frequently check the auger and make sure that all deposits are removed from the auger drill bit.
  • Page 28 Every Every Every System / Every Procedure Note Component hours hours hours Fuel Leaks and Clean spillages Replace Fuel tank, air and Inspect / fuel filter clean required Replace Idle adjusting See idle carburetor screw adjustment required Re-gap to Engine 0.6 –...
  • Page 29 AIR FILTER CAUTION Never let the engine run without the air filter being installed. A dirty air filter element affects the engine performance, increases fuel consumption and makes it difficult to start. If you notice a loss of engine power, check the air filter. If the air filter is damaged you MUST replace it.
  • Page 30 SPARK PLUG WARNING The spark plug MUST be tightened with a torque of 12-15Nm otherwise the engine will overheat causing damage. Only complete the following steps after the engine has been turned off and allowed to cool. Carefully remove the spark plug HT lead cap. Unscrew the spark plug using the plug wrench provided (1).
  • Page 31 MUFFLER 8.18 Inspect the muffler for loose fasteners, damage or corrosion. 8.19 If any sign of excess exhaust leakage is found, stop using the machine immediately. Failure to do so may result in damage to external engine components from excess heat.
  • Page 32 PRUNER 8.26 Dismount the guide bar and check the oiling port (1) for clogging. (1) Oiling Port 8.27 Remove sawdust from the guide bar (1). (1) Guide Bar 8.28 Grease the nose sprocket (2) from the grease port (1) on the tip of the chain bar. (1) Grease Port (2) Nose Sprocket 8.29...
  • Page 33 CHAIN SHARPENING WARNING It is important the saw chain blade is kept sharp for safe and smooth operation. Always wear gloves when handling the saw chain. 8.31 Your saw chain will require sharpening when: Sawdust becomes powder like. You need to apply extra force to saw wood. The cut way does not go straight.
  • Page 34: Storage & Transporting

    8.37 Make sure every cutter has the same length and edge angles as illustrated below. 1. Cutter length 2.Filing angle. 3. Side plate angle 4. Top plate cutting angle. CLEANING CAUTION DO NOT use a pressure washer or hose pipe to clean the machine. Water could penetrate the engine and cause irreversible damage.
  • Page 35 TRANSPORTING CAUTION NEVER transport the machine with the engine running. Carbon monoxide is a colourless and odourless gas. Inhaling this gas can cause death as well as serious long term health problems such as brain damage. Ensure the machine is turned off and the spark plug HT lead cap has been removed. Make sure no fuel is allowed to leak during transport.
  • Page 36: Troubleshooting

    11. TROUBLESHOOTING NOTE If troubleshooting does not resolve the problem, please contact the dealer. Use only original parts approved by the manufacturer, otherwise a hazard risk arises. Problem Possible Cause Possible Corrective Action Clean or replace the spark Worn, Damaged or Carbon plug.
  • Page 37: Declaration Of Conformity

    12. DECLARATION OF CONFORMITY Genpower Ltd confirms that these P1PE products confirm to the following CE Directives; 2006/42/EC Machinery Directive 2004/108/EC EMC Directive 2000/14/EC Amended by 2005/88/EC Noise Emissions Directive 97/68/EC_2010/26/EC NRMM Emissions Directive...
  • Page 38: Recycling

    13. RECYCLING & PRODUCT DISPOSAL We do not offer a takeback scheme for the recovery of Waste Electrical Electronic Equipment (WEEE) & Batteries. Instead the responsibility to dispose of WEEE and or Batteries is passed onto you by So when it becomes necessary to dispose of your machine you must take it to your local Civic Amenity Site.
  • Page 39: Manual Updates

    We reserve the right to make any modifications without prior notice wherever necessary. 15. WARRANTY To register your machine for the manufacturer’s warranty, please visit: 11.0 http://www.p1pe.co.uk/warranty 16. CONTACT DETAILS Postal Address: Genpower Ltd, Isaac Way, London Road, Pembroke Dock, Pembrokeshire SA72 4RW Website: www.p1pe.co.uk...
  • Page 40 P1PE – Position One Power Equipment Isaac Way, Pembroke Dock, Pembrokeshire, SA72 4RW www.p1pe.co.uk...
