BONFIGLIOLI BMS series Installation Use And Service Manual page 14

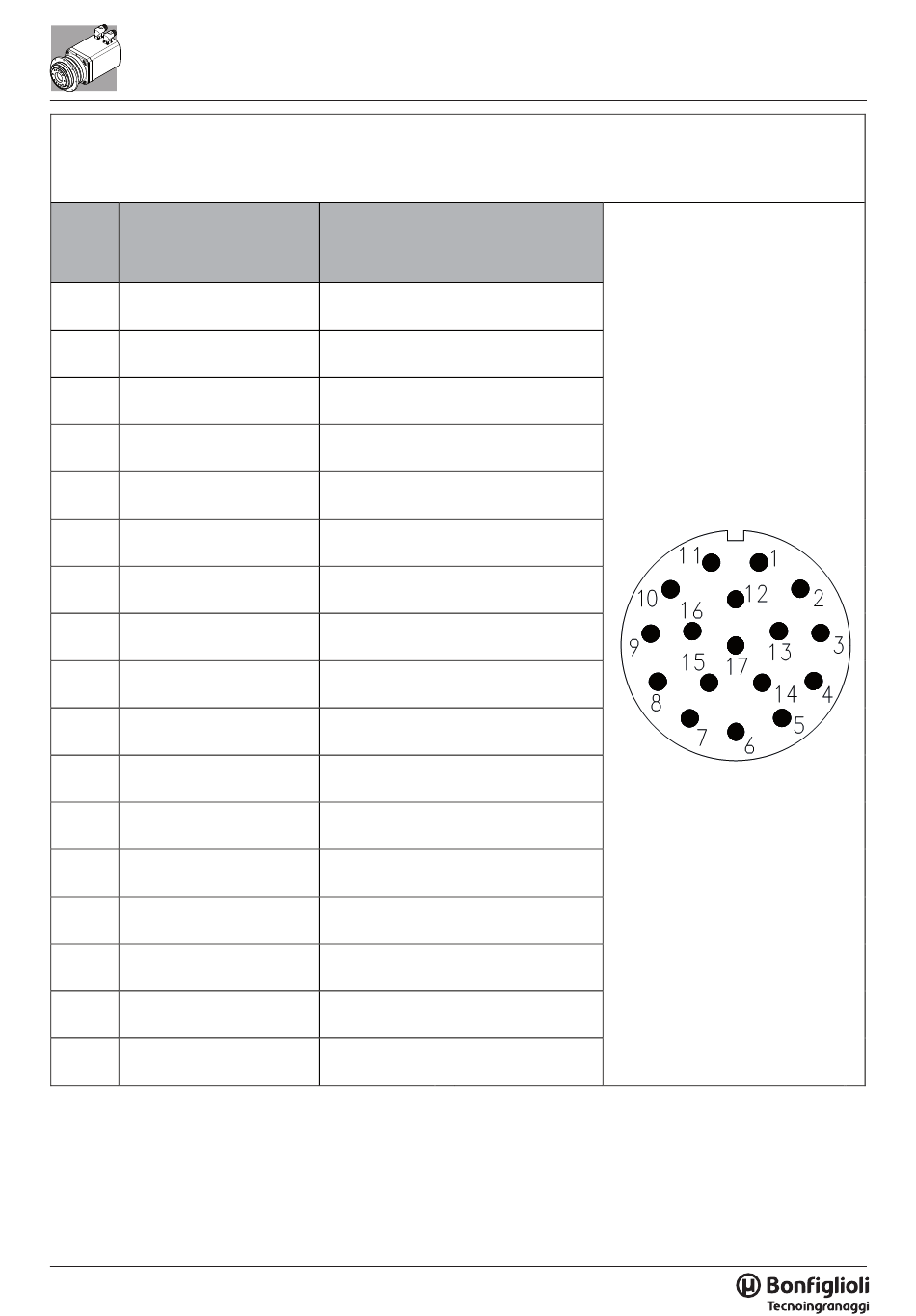

Layout connettore e cavo di segnale per encoder Sick Stegmann ENB3 / ENB4 / ENB5 / ENB6
Signal cable and connector layout for Sick Stegmann encoder ENB3 / ENB4 / ENB5 / ENB6
BMS TAGLIA MOTORE / BMS MOTOR SIZE: 065A...170C
DESCRIZIONE
PIN
DESCRIPTION
1 Sin +
2 Sin -
3 RS485 +
4 -
5 -
6 -
7 Terra / GND
8 Ptc - / Kty -
9 Ptc + / Kty +
10 + Vdc
11 Cos +
12 Cos -
13 RS485 -
14 -
15 -
16 -
17 -
12
COLORE COND. IN CAVO
CABLE LEAD WIRE COLOR
Cable MSC XX EN3 FW
Verde / Green
Marrone / Brown
Blu / Blue
Non connesso / Not connected
Non connesso / Not connected
Non connesso / Not connected
Nero / Black
Bianco / White
2
(0.50 mm )
Marrone / Brown
2
(0.50 mm )
Rosso / Red
Grigio / Grey
Rosa / Rose
Viola / Violet
Non connesso / Not connected
Non connesso / Not connected
Non connesso / Not connected
Non connesso / Not connected
12
