Cleaning centrifugal oil filter
1. Wash rotor cover (3), rotor tube (7), conical disk (8) and rotor base (13) with cold cleaner.
2. Blow out rotor cover (3), rotor tube (7), conical disk (8) and rotor base (13) with compressed air.

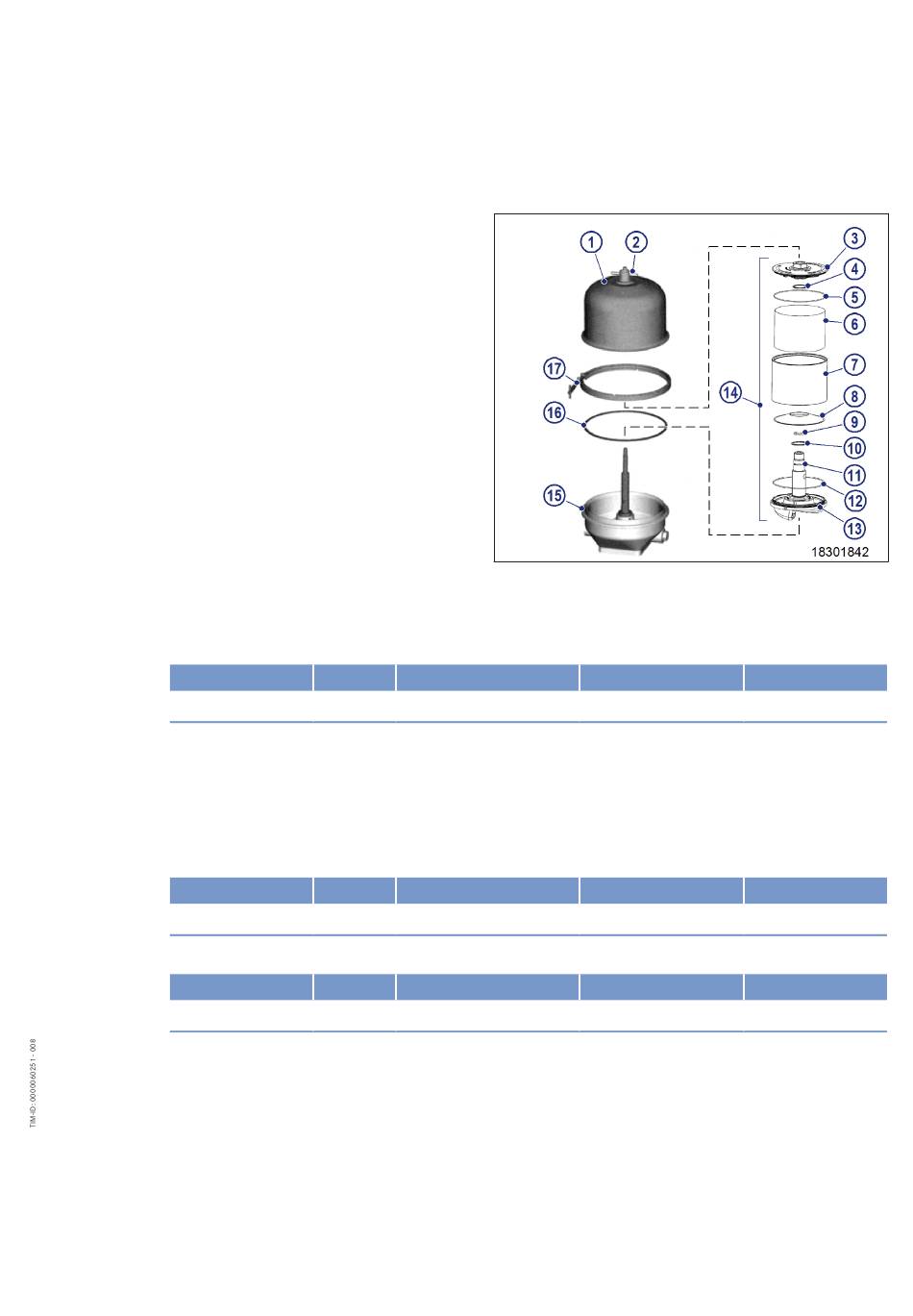

Assembling centrifugal oil filter
1. Coat new sealing rings (9) and (10) with as-
sembly compound and insert in grooves on
bearing shaft (11).
2. Assemble rotor tube (7), conical disk (8) and
rotor base (13) with new sealing ring (12).
Note: Observe marks and information on the paper
element!
3. Insert new filter sleeve (6) in rotor tube (7)
with the smooth paper surface facing the out-
er wall.
Note: Check sealing rings (4) and (5) and replace if
necessary.
4. Fit sealing ring (5) in rotor tube (7) and seal-
ing ring (4) in rotor cover (3).
Note: Do not clamp rotor unit in a bench vise. Use
an oil filter wrench.
5. Screw on rotor cover (3) by turning at hexa-
gon.
6. Tighten rotor cover (3) with torque wrench to specified tightening torque.
Name
Nut
7. Place rotor (14) in housing (15) and check for ease of movement.
Note: Check sealing ring (16), fit new one as necessary.
8. Fit sealing ring (16) on housing (15).
9. Fit cover (1).
10. Tighten cover nut (2) by hand.
11. Install V-band clamp (17) and use torque wrench to tighten to specified tightening torque.
Name
Clamp
12. Use a torque wrench to tighten cover nut (2) to specified tightening torque.
Name
Screw
Size Type
Tightening torque
Size Type
Tightening torque
Size Type
Tightening torque
MS15060/01E 2018-12 | Oil Filtration / Cooling | 183
Lubricant Value/Standard
80 Nm ±12 Nm
Lubricant Value/Standard
20 Nm ±3 Nm
Lubricant Value/Standard
7 Nm ±1 Nm
