3309851/1
This document must be read in conjunction with IM-P330-73.
To avoid the risk of injury to personnel or damage to plant or equipment, the safety
information and technical data in the Installation and Maintenance Instructions
(IM-P330-73) should be read and assessed before attempting any installation work.
To avoid the risk of damage or loss of accuracy, the installation and commissioning
guidelines in the IM-P330-73 should be read and understood.
Essential installation guidelines

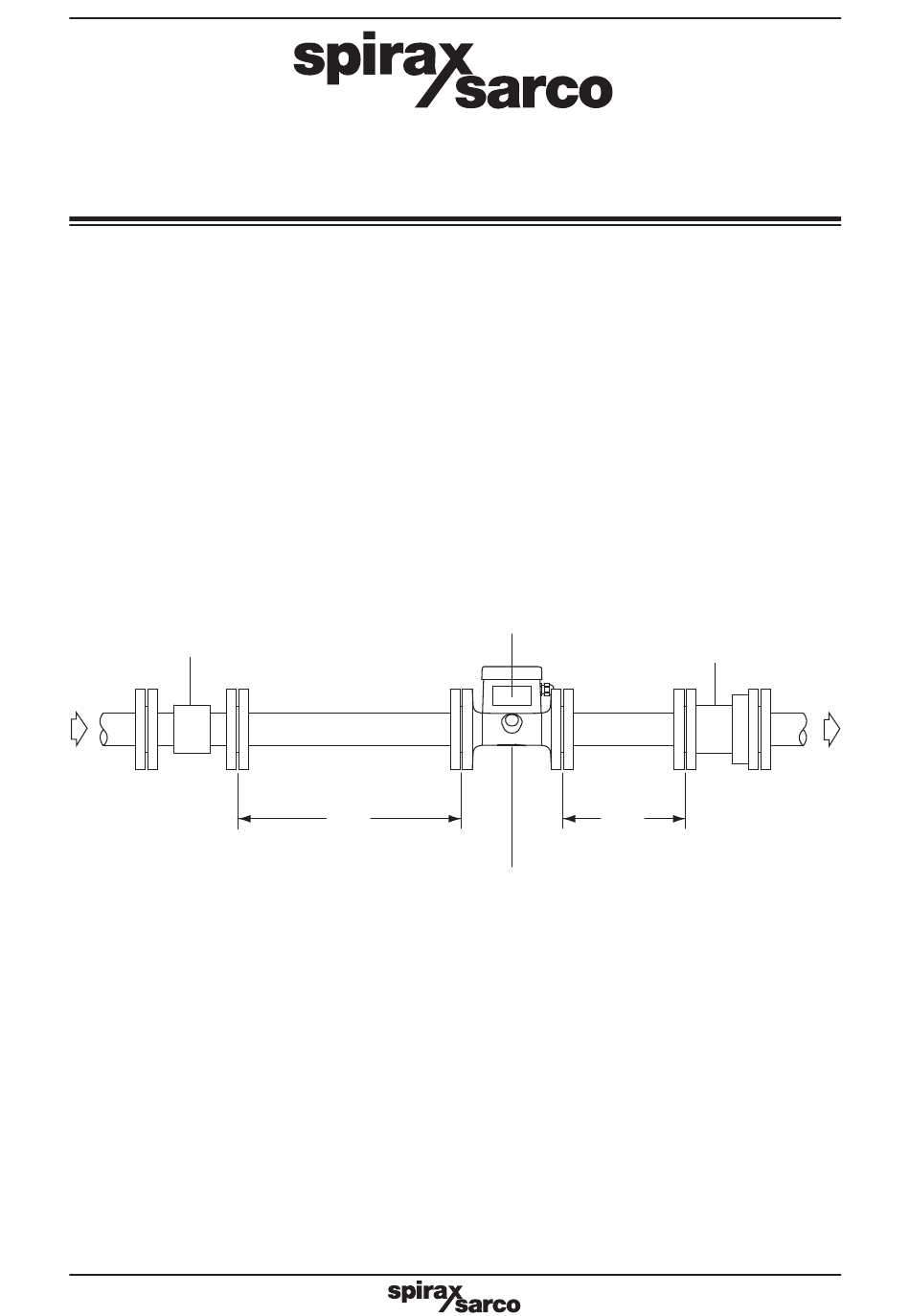

The flowmeter may be installed in a horizontal or vertical pipeline, with flow in any direction.
The preferred orientation for a Flowin 2 natural gas flowmeter is in a horizontal pipeline, with
the flowmeter display facing either upwards or downwards as illustrated in Figure 1.
Filter 250 micron
Fig. 1
D = Nominal bore of the pipe
Caution: Maximum permissible flange bolt tightening torque is 160 N m
Before powering up the Flowin 2 for the first time, complete the following checklist:
1. Are all required connections made?
(a) Loop?
(b) Pulse? (if required)
(c) Grounding to earth of RF braiding at the Flowin end (only) of the loop and pulse cables?
(d) Flange earth connections?
2. Are all the connections secure?
3. Is the polarity of all connections correct?
4. Check that the earth resistance is in accordance with the technical data in IM-P330-73.
5. Ensure there is no possibility of a short circuit occurring when the PCB housing is refitted.
6. Refit the PCB housing to the flowmeter body in the orientation desired before 'powering
up' the flowmeter.
IM-P330-74 MI Issue 1
Printed in the UK
Flowin 2
Natural Gas Flowmeter
Essential Installation Guide
Warning
Caution
flowmeter data label
6'D'
Upstream distance
Location of cast flow
Location of
3'D'
Downstream distance
arrow
IM-P330-74
MI Issue 1
Check valve
© Copyright 2009
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Spirax Sarco Flowin 2
Summary of Contents for Spirax Sarco Flowin 2
- Page 1 The flowmeter may be installed in a horizontal or vertical pipeline, with flow in any direction. The preferred orientation for a Flowin 2 natural gas flowmeter is in a horizontal pipeline, with the flowmeter display facing either upwards or downwards as illustrated in Figure 1.
- Page 2 Caution – The Flowin end of all shielded cables must be grounded to the earth points provided, as described in Section 3 of the Information and Maintenance Instructions (IM-P330-73), otherwise the EMC performance of the Flowin 2 will be impaired, possibly resulting in flowmeter damage or loss of accuracy.
