Spirax Sarco ILVA20 Installation Manual

Flowmeter and mvt10 differential pressure transmitter for saturated and superheated steam service
Hide thumbs Also See for ILVA20:
Table of Contents

Advertisement

Quick Links

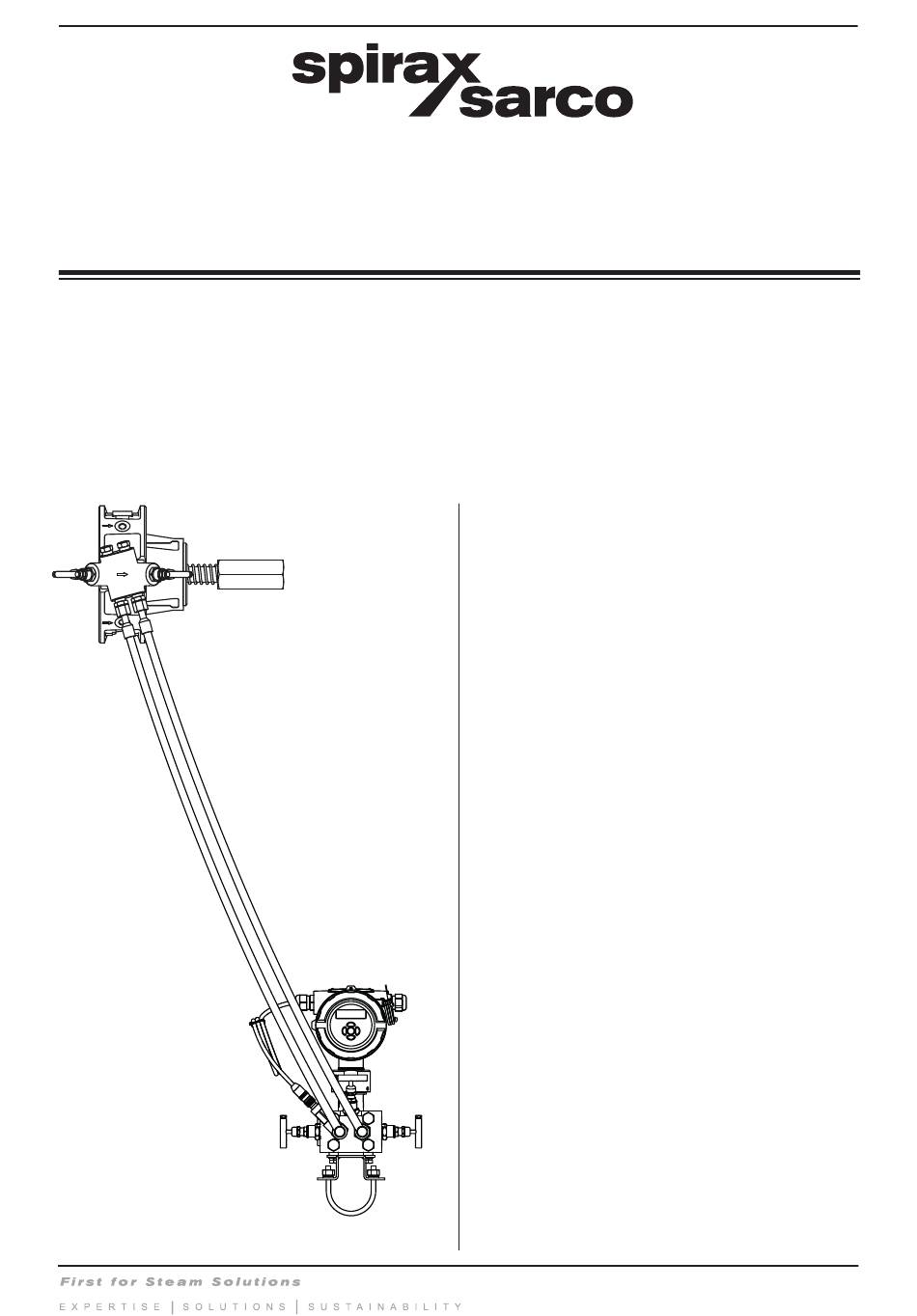

3374350/2
MVT10 Differential Pressure Transmitter
for Saturated and Superheated Steam Service
IM-P337-69 EMM Issue 2
ILVA20 Flowmeter and
Installation and Maintenance Instructions
Abbreviations
1. Safety information
2. General system information
3. General product information
4. Mechanical installation of
ILVA20 pipeline unit
5. Electrical installation
6. Commissioning
7.
MVT10 and menu structure
8. Maintenance
9. Spare parts
10. Fault finding
11. Settings table
12. Appendix
IM-P337-69
EMM Issue 2
© Copyright 2019
1
Printed in GB

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ILVA20 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Spirax Sarco ILVA20

Summary of Contents for Spirax Sarco ILVA20

  • Page 1 3374350/2 IM-P337-69 EMM Issue 2 ILVA20 Flowmeter and MVT10 Differential Pressure Transmitter for Saturated and Superheated Steam Service Installation and Maintenance Instructions Abbreviations 1. Safety information 2. General system information 3. General product information 4. Mechanical installation of ILVA20 pipeline unit 5.
  • Page 2 Abbreviations Multi-variable transmitter Electromagnetic compatibility Electrostatic discharge Pressure Equipment Directive ASME American Society of Mechanical Engineers National Pipe Thread IEEE Institute of Electrical and Electronic Engineers Ingress protection ILVA InLine Variable Area EIA/TIA-485 Electronic/Telecommunication Industrial Association (formally EIA/TIA 485) American wire gauge Differential pressure British thermal unit Digital multimeter...

  • Page 3: Safety Information

    Determine the correct installation situation and direction of fluid flow. iv) Spirax Sarco products are not intended to withstand external stresses that may be induced by any system to which they are fitted. It is the responsibility of the installer to consider these stresses and take adequate precautions to minimise them.
  • Page 4 Warning This product complies with Electromagnetic Compatibility Directive 2014/30/EU and all its requirements. The product may be exposed to interference above the limits of Heavy Industrial Immunity if: The product or its wiring is located near a radio transmitter Excessive electrical noise occurs on the supply. Line protectors can be used with combine filtering, suppression, surge and spike arrestors.

  • Page 5: Tools And Consumables

    Safe lifting of Spirax Sarco products Please note that the Spirax Sarco ILVA20 is supplied with the provision for eyebolts to BS 4278 (to be supplied by others), with tapped holes located in the body. These may be used for lifting purposes at the sole risk and responsibility of the purchaser.

  • Page 6: Returning Products

    Safety data sheets relating to any substances identified as hazardous or potentially hazardous. 1.16 Hot Surfaces On completing the installation its recommended the installer high light potential hot surfaces on the ILVA20 body, these are likely to be the 2-way manifold and the needle valves located on the unit. 1.17 Replacement parts...

  • Page 7: General System Information

    This booklet gives full details of the recommended procedures for the installation, maintenance and use of the Spirax Sarco ILVA20 flowmeter. Abbreviated details of how to install the EL2270 temperature sensor are also given and full details are supplied with the product.

  • Page 8: General Product Information

    3. General product information 3.1 Sizes and pipe connections ILVA20: DN150, DN200, DN250 and DN300. Suitable for fitting between the following flanges: EN 1092-1 PN16, PN25 and PN40 BS 10 Table H ASME B16.5 Class 150 and 300 JIS B2220 20K KS B1503 20K.
  • Page 9 Fig. 2 Balance DN150 shown IM-P337-69 EMM Issue 2...
  • Page 10 3.5 Pressure/temperature limits Steam saturation curve Pressure bar g The product must not be used in this area. Outside of operating range. Steam is superheated in this area. Maximum design pressure 49.6 bar g @ 21 °C Maximum design temperature 400 °C @ 29.4 bar g Minimum design temperature 0 °C (non-freezing)
  • Page 11 3.6 ILVA20 Dimensions/weights (approximate) in mm and kg Size Weight DN150 17.74 DN200 27.94 DN250 46.54 DN300 69.94 IM-P337-69 EMM Issue 2...
  • Page 12 3.7 MVT10 Dimensions/weights (approximate) in mm and kg MVT10 mass flow transmitter, manifold and The ILVA20/MVT10 can be supplied with either impulse hoses and fixing clamp 1 m or 2 m long impulse hoses, with 3/8" NPT screwed ends. It can also be supplied without hoses, where the...

  • Page 13: Environmental Conditions

    Do not install the product outdoors without additional weather protection. Caution: In order for the ILVA20 flowmeter to meet its specified accuracy and performance, it is essential that the following guidelines for installation are followed carefully. For steam flow measurement, good basic steam engineering practices should be followed as detailed in this manual.
  • Page 14 Required installation Isolation valve minimum minimum Strainer Separator Fig. 4a Minimum 100 mm Minimum 100 mm Fig. 4b The MVT10 is supplied with a four bolt bracket and two U bolt fixings for mounting to a suitable structure. The U bolts can be used to clamp the MVT10 to a suitably located pipe or bar up to 60 mm diameter, see Figure 4a. Caution! Do not clamp the MVT to another steam pipe.
  • Page 15 4.1 Orientation The ILVA20 should be installed in a horizontal line. As it has been calibrated in a horizontal attitude, mounting it in a vertical line (flow downwards) may introduce a small flow measurement error. If installation with flow vertically downwards is unavoidable, please consult Spirax Sarco for advice.
  • Page 16 Maximum 45º Fig. 9 The ILVA20 can be rotated in a horizontal line by up to 45° (downwards only), see Figure 9. The filling and hose connector plugs are supplied loose and thus need to be fitted to suit the orientation of the 2 way manifold.
  • Page 17 The ILVA20 normally only requires a minimum of 6 pipe diameters upstream and 3 downstream of clear straight pipe. These dimensions assume a measurement from a single 90° bend.
  • Page 18 If any of the following configurations are present upstream of the ILVA20, then it is recommended that the minimum upstream clear pipework is doubled to 12 diameters. Two right angled bends in two planes. Pressure reducing valve. Partly open valve.
  • Page 19 Fig. 14 It is important that the ILVA20 is located centrally in the pipework as any eccentricity may cause inaccurate readings. The ILVA20 has been designed with integral centering webs which locate on the internal diameter of the pipework.
  • Page 20 4.4 Pressure tappings The ILVA20 has a two way manifold with integral pressure tappings for connection to the MVT10 mass flow transmitter assembly using impulse lines. These are threaded 3/8" NPT and are clearly marked HI (upstream) and LO (downstream). Care should be taken to ensure that these are correctly connected. It also has filling points to commission the assembly.
  • Page 21 4.5 Hard piped impulse lines The ILVA20 and MVT10 can be installed with hard piping for impulse lines (supplied by others). The general arrangement Fig. 16 should be as shown opposite. Hard piping for impulse lines 4.6 How to fit the MVT10 MVT10 is supplied with a bracket which can be clamped to small pipe (Æ60 mm), or fixed to a suitable wall.

  • Page 22: Electrical Installation

    Warning! All wiring procedures must be performed with the power off. Use only the connectors supplied with the product, or spares obtained from Spirax Sarco. Use of different connectors may compromise product safety and approvals. Ensure there is no condensation within the unit before installing and connecting the power.
  • Page 23 Wiring compartment and cable entry The MVT10 contains an integral wiring compartment, located at the rear of the enclosure. To access the compartment, loosen the small grub screw and unscrew the rear cover. A M20 x 1.5 female conduit entry is available for power and signal wiring. The product comes fitted with a cable gland which is suitable for one cable with a 5-12 mm diameter.
  • Page 24 RS 485 Connection 24V Power connection Temperature Pressure Loop input Pulse SEE INSTALLATION MANUAL FOR WIRING INFORMATION SEE INSTALLATION MANUAL FOR WIRING INFORMATION Fig. 19 Wiring terminals IM-P337-69 EMM Issue 2...
  • Page 25 5.2 Loop power wiring Connect 4-20 mA loop power (24 Vdc +/-10% at 25 mA, 1W max.) to the +Loop Power and Loop Power terminals on the terminal block. WARNING Ensure the EIA/TIA 485 power connection is not wired up if connecting a power supply to the loop input.
  • Page 26 Testing the 4-20mA loop current: The 4-20mA loop current can be tested without having to disconnecting the wiring. This enables the user to verify the correct signal is being transmitted for the corresponding flow rate, for fault finding and for calibrating the 4 and 20mA output signal.
  • Page 27 5.3. EIA/TIA-485 communication wiring dc power wiring Connect a 24 Vdc supply (+/-10%, 250 mA min) to the +24V and 0V terminals on the terminal block. The supply must be fitted with a T1A fuse. WARNING: Ensure the 4-20mA loop is not wired up, if connecting power to the DC power input. Signal wiring The product can be connected as a slave to a two or four-wire EIA/TIA-485 multi-drop network.
  • Page 28 SLAVE 20FF WIRE LINKS TEMPERATURE PRESSURE DO NOT USE DO NOT USE +24Vdc +/-10% 250mA (min) EARTH* COMMON EARTH* EARTH* MASTER SLAVE SLAVE SLAVE Fig. 22 2 wire dc wiring terminals IM-P337-69 EMM Issue 2...
  • Page 29 SLAVE PRESSURE TEMPERATURE DO NOT USE DO NOT USE +24Vdc +/-10% 250mA (min) EARTH* COMMON EARTH* EARTH* MASTER SLAVE SLAVE SLAVE Fig. 23 4 wire dc wiring terminals IM-P337-69 EMM Issue 2...
  • Page 30 5.4 External Temperature sensor wiring Caution! Only connect one power source at a time. Maximum cable length for this installation is recommended to be as short as possible, but no more then 3 m. TEMPERATURE SENSOR TERMINAL SUPPLY RETURN SCREEN E L 2 2 7 0 W I R I N G DETAILS...
  • Page 31 5.5 Pressure sensor wiring If it is necessary to replace the pressure sensor cable assembly, the following details the wiring connections: PRESSURE SENSOR (FACTORY WIRED) SCREEN RETURN SUPPLY OUT- BLACK BROWN GREEN/YELLOW PRESSURE OUT+ SENSOR BLUE CONNECTOR (PIN 2 = N/C) Fig.
  • Page 32 6. Commissioning After all mechanical and electrical work has been completed, the initial start-up procedures should be followed. Impulse hose filling ports MVT10 rear view Bleed ports 2 way manifold 3-way manifold Fig. 26 Balance IM-P337-69 EMM Issue 2...
  • Page 33 To put the MVT10 into operation: Step 1 3-way Closed Make sure that all valves on the 3-way manifold manifold and bleed valves are in the closed position. MVT10 Closed Closed Bleed valve Bleed valve Step 2 2-way manifold Fill the impulse hoses/lines with cold water or uncontaminated condensate (no dir t or debris entrained in the condensate) as this will have been chemically treated and reduce the formation of air...
  • Page 34 2-way Step 4 manifold Shut off bleed valves and refill the impulse lines through the 2 way manifold filling port. Open 3-way Open manifold Closed MVT10 Closed Closed Bleed valve Bleed valves 2-way Step 5 manifold Shut off the isolation valves at the 2-way manifold. Closed 3-way Open...
  • Page 35 2-way Step 6 manifold Turn the system pressure on (optional but recommended). Step 7 Closed Open equalization valve. 3-way manifold Open Open MVT10 Equalization valve Closed Closed Bleed valves Bleed valve 2-way Step 8 manifold Check the DP sensor output and zero if required. Follow procedure in Section 7.4.1 and 7.4.2.
  • Page 36 2-way Step 10 manifold Close equalization valve. 3-way Open Closed manifold Closed Equalization valve MVT10 Closed Closed Bleed valve Bleed valves 2-way Step 11 manifold Open the LO isolation valve on the 2-way manifold. Open 3-way manifold Open Closed MVT10 Closed Closed Bleed valve...
  • Page 37 The MVT10 should be commissioned with the flow through the ILVA20 isolated. The MVT10 can not be used with ILVA or Gilflo products, as they are sold paired with a ILVA20. Note: The MVT10 is factory set to display data in metric units. To commission the MVT10 to display imperial units see Section 7.3.2.

  • Page 38: Rotating The Display

    Rotating the display The display can be rotated through +/- 180 degrees. Do not rotate more then 360 degrees, to aid reading and commissioning. To rotate the display, first disconnect the power supply to the MVT10. Unscrew the front housing screw cap (with glass). Unscrew the three display retaining screws and rotate the complete display cassette to the required position.

  • Page 39: Run Mode

    7.1 Run mode Normally, the MVT10 flowmeter will operate in the run mode, displaying the total flow, flow, power, pressure or temperature of the fluid passing through the pipeline. After initial power up, the MVT10 flowmeter will automatically enter the run mode and all commissioning menus can be accessed from this mode.
  • Page 40 The following chart indicates the Metric Imperial run mode data display sequence. Large Small Large Small Depending on the configuration, the flow units will be: Total flow Tonne Total energy MBtu kBtu Flow rate Tonne/h kg/h Ton/h Ib/h Power MBtu/h kBtu/h Pressure bar g...

  • Page 41: Error Display Messages

    7.1.2 Error display messages Any errors that occur will be displayed in the run mode. The errors will alternate with the normal run mode display and will be prioritised. The errors will be latched and can only be cancelled by pressing the 'OK' button.

  • Page 42: Commissioning Mode

    7.2 Commissioning mode The commissioning mode is used to zero the pressure sensor and DP sensor, enable the temperature sensor (for superheat/heat metering applications), set and test the outputs and change the pass code. 8888 8888 All data entry is performed via a menu and sub menu configuration with the key pad buttons used for In-PUtS navigation, i.e.
  • Page 43 7.3 bASIC DAtA Sub menu Default 97% Default (Display either mass total in kg or lb, or the steam energy in kWh or kBtu) 7.3.1 dRy Pressing the right key will display the dryness fraction. This is the dryness fraction of the saturated steam being measured.
  • Page 44 7.4 InPUtS In-PUtS Press and hold 'OK' for 3 seconds to zero pressure sensor Press and hold 'OK' for 3 seconds to zero DP sensor PRES PRES SENSR SENSR PRES 0 CAL PRES 25 CAL tEMP tEMP StEAM STEAM SENSR SENSR HEAt XXXX%...
  • Page 45 7.4.3.1 PRES 0 CAL (ZP) When entering the PRES SENSR menu the 0CAL menu will be displayed. Pressing the right arrow key (>) will display the 0CAL bits values. When the bits values for the 0 CAL have been entered press the OK button to confirm. 7.4.3.2 PRES 25 CAL (EP) Pressing the down arrow key (v) will display the 25CAL bits values.

  • Page 46: Outputs Sub-Menu

    HEAt XXXX% HEAT XXXX% 7.5 OutPutS Sub-menu This sub-menu allows the 4-20mA, Modbus and pulsed outputs of the flowmeter to be configured. (If heat metering and ‘POWER’ are selected, the 4-20mA output will give the net power in kW, MW, kbtu/h and Mbtu/h) (If heat metering and ‘ENRGy’...
  • Page 47 32 bar g. The 20 mA value must always be a minimum of one greater than the 4 mA value. For larger size ILVA20's where the maximum flowrate exceeds the SMALL scale range of 99999, the scale will need to be changed to LARGE to entre the desired value. See 7.3.3.

  • Page 48: Pulse Output

    7.5.2 Pulse Output This sub-menu allows the pulsed output to be configured. (in kg or Tons, MWh or MBtu) x.xxSec (Must not exceed 4 pulses/sec) 7.5.2.1 PULSE This enables or disable the pulsed output, by selecting yes or no. 7.5.2.2 SORCE This selects the source data for the pulsed output.
  • Page 49 7.5.3 Communications x.xxSec The MVT10 has a MODbus EIA 485 compatible communications protocol. This enables users to interrogate the MVT10 for steam data using a MODbus Master (e.g. PC, PLC, BMS etc). Default Default dELAy 7.5.3.1 bAUD This allows the communication speed to be set to either 1200, 9600 or 19200. This must match the rate set within the device it is communicating to.
  • Page 50 7.5.3.4 DELAY Response Time and Delay Time: The response time of the MVT10 is between 0 and 0.25 seconds. This is the time the MVT10 can take to reply to a request from the master. This takes into account time the master sends a request and when the MTV10 is ready to return a reply.

  • Page 51: Alarm Sub-Menu

    7.6 ALARM sub-menu This sub menu where the alarm functions can be set. (O/P Alarm = 22mA) Default Default (Only shows if tEMP SENSR is enabled) XXXX Default XXXX COMMS COMMS ALARM ALARM COMMS COMMS Default ALARM ALARM dISP 7.6.1 O/P (output) Alarm ALARM dISP If the self-diagnostic electronics determine HIGH...

  • Page 52: Test Sub-Menu

    XXXX 7.7 tESt sub-menu COMMS COMMS The tESt sub-menu allows access to the MVT10 flowmeter's diagnostic tools. From here the display, 4-20 mA ALARM ALARM and pulse outputs can be tested. dISP (Differential pressure in mbar) xx.xxmA Sets pulsed output permanently on Sets pulsed output permanently off 7.7.1 dISP This allows the display to be tested.
  • Page 53 7.8.2 SIZE This is factory set to match the size of the paired ILVA20, and is displayed by pressing the right key (150-300). 7.8.3 CLEAR tOtAL This function is used to clear the total by pressing and holding the OK key for 5 seconds.

  • Page 54: Maintenance

    Before carrying out any maintenance on the ILVA20/MVT10 refer to the safety information in Section 1. 8.1 Impulse hoses Spirax Sarco recommend periodic cleaning of the impulse lines to prevent excessive build-up of sludge or deposits. 8.1.1 Cleaning impulse hoses It is recommended that the impulse lines are periodically cleaned to prevent the excessive build-up of sludge or deposits.
  • Page 55 2 way manifold isolation valves Impulse hoses Bleed valves Fig. 30 IM-P337-69 EMM Issue 2...
  • Page 56 8.1.1.2 Visual checks of ILVA20 It is also possible to carry out some simple checks on the ILVA20, though to do so the ILVA20 would need to be removed from the line. Checks possible: With the ILVA20 held in a vice (with soft jaws) with the cone and shaft below, check that the cone is free to move up and down on the shaft.

  • Page 57: Replacing Spare Parts

    Loosen the hose lock nuts and unscrew the hoses from the two way manifold. Loosen and remove the four screws connecting the two way manifold to the ILVA20 body. Carefully remove the manifold from the ILVA20.
  • Page 58 8.2.3 How to replace the MVT10 pressure sensor. Ensure that the steam flow through the ILVA is isolated and the line pressure has returned to atmospheric pressure and the temperature cooled. Close the isolation valves on the two way manifold and open the bleed valves on the MVT10 to allow the condensate to drain.
  • Page 59 BROWN Brown BLUE Blue BLACK Black GRN/YEL Green/Yellow SCREEN Screen Cable gland Pressure sensor calibration data shown on label ZP = 0 CAL EP = 25 CAL Fig. 34 Bleed valves IM-P337-69 EMM Issue 2...

  • Page 60: Spare Parts

    How to order spares Always order spares by using the description given in the column headed 'Available spares' and state the size and type of equipment. Example: 3374380 - Gasket and fastener spares kit for an ILVA20 flowmeter IM-P337-69 EMM Issue 2...

  • Page 61: Fault Finding

    10. Fault finding Fault Findings on MVT10 Symptom Possible Cause Action Check that the pressure sensor is Ensure correct bits values have been operating correctly. entered for the 0 and 25 cal points. See section 7.4 for further details. Unit is reading no flow or very little flow Check impulse lines, manifold Ensure Impulse lines aren't blocked...
  • Page 62 If the shaft is severily scratched, the flow is known to be ILVA20 will need to be replaced. fluctuating 1) Ensure the two needle vales on the body are fully open. The unit is reading 2) Ensure the needle valve on the three way manifold is fully open.

  • Page 63: Settings Table

    11. Settings table Menu Default Range, options Dryness fraction Range 70 to 100 % Units Metric Metric, imperial Basic Data tOtAL Mass Mass, ENRGy Atmospheric pressure 1.01 bar a 0.7 - 1.10 bar a Scale Large/small Small Input 4-20 mA Source FLOW FLOW, POWER...
  • Page 64 Setting table: Imperial figures Menu Default Range, options Dryness fraction Range 70 to 100 % Units Metric Metric, imperial Basic Data tOtAL Mass Mass, ENRGy Atmospheric Pressure 14.64 10.5 - 15.95 psi MAX - flow @ 32 bar g (Ton/h) DN150: 24.67 DN200: 48.50 DN250: 66.29...

  • Page 65: Read Holding Registers

    Bit field Refer to Table 7 - Alarm Status 0x0000 – RESERVED 0x0001 – RESERVED 0x0002 – RESERVED 0x0004 – RESERVED 0x0100 – ILVA20 50mm 40,011 SxS Device ID 0x0101 – ILVA20 80mm 0x0102 – ILVA20 100mm 0x0103 – ILVA20 150mm 0x0104 –...
  • Page 66 Table 3 Flow Meter Values Address Parameter Units Notes 40,101 Total low 16 bits Single Precision IEEE 754 Tonne 40,102 Total high 16 bits 40,103 Flow low 16 bits kg/hour Single Precision IEEE 754 Tonne/hour 40,104 Flow high 16 bits 40,105 Pressure low 16 bits bar g...
  • Page 67 12.1.2 Floating Point Format IEEE-754-1985 standard for 32-bit (single precision) floating point values are stored in adjacent registers with the low 16 bits on an even address and the high 16 bits on the following odd address. The floating point value is store in the registers as follows: Register High 16 bits (Address XXX1)
  • Page 68 ILVA20/MVT10 Configuration menu IM-P337-69 EMM Issue 2...
  • Page 69 IM-P337-69 EMM Issue 2...
  • Page 70 ILVA20/MVT10 Configuration menu (continued) IM-P337-69 EMM Issue 2...
  • Page 71 IM-P337-69 EMM Issue 2...
  • Page 72 Spirax-Sarco Limited, Charlton House, Cheltenham, Gloucestershire, GL53 8ER, UK T +44 (0)1242 521361 F +44 (0)1242 573342 E enquiries@uk.spiraxsarco.com Spirax Sarco is a registered trademark of Spirax-Sarco Limited www.spiraxsarco.com IM-P337-69 EMM Issue 2...
