Edit a signal classification region

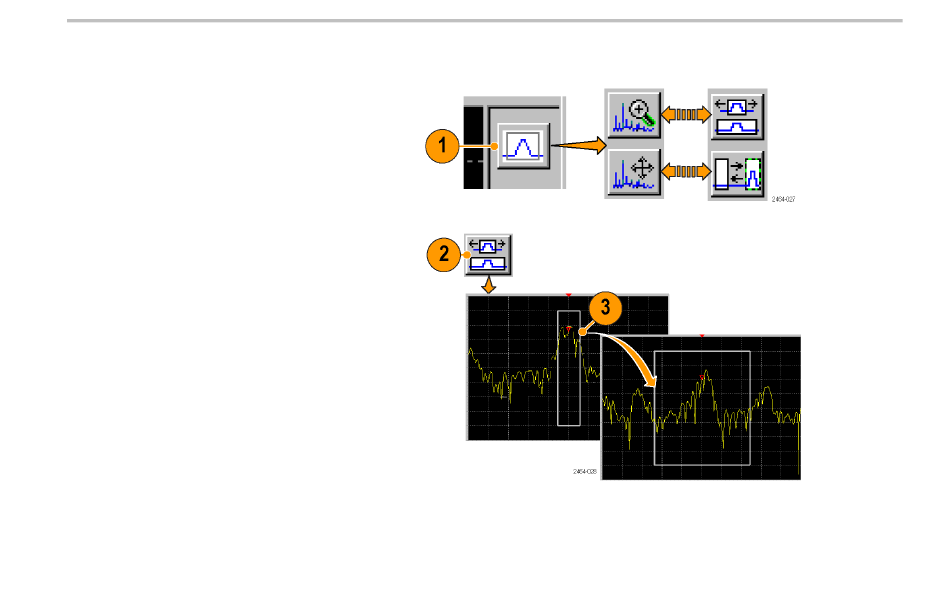

1. Tap the Edit Region button to switch the
Zoom and Move buttons with Change
Region and Move Region buttons. This
button is only shown while in the Signal
Classification mode.
2. To change the width (frequency span) if a
region, tap the Change Span button.
3. Tap the region to change. Then press and
drag, with firm pressure, inside the region
box to change the span of the region in
the direction of the drag. Dragging from
the center to outside of the box expands
the region; dragging from the edge of the
box towards the center reduces the region.
Use a stylus to make tapping and dragging
easier.
You can only move an undeclared region
(Classification = None).
