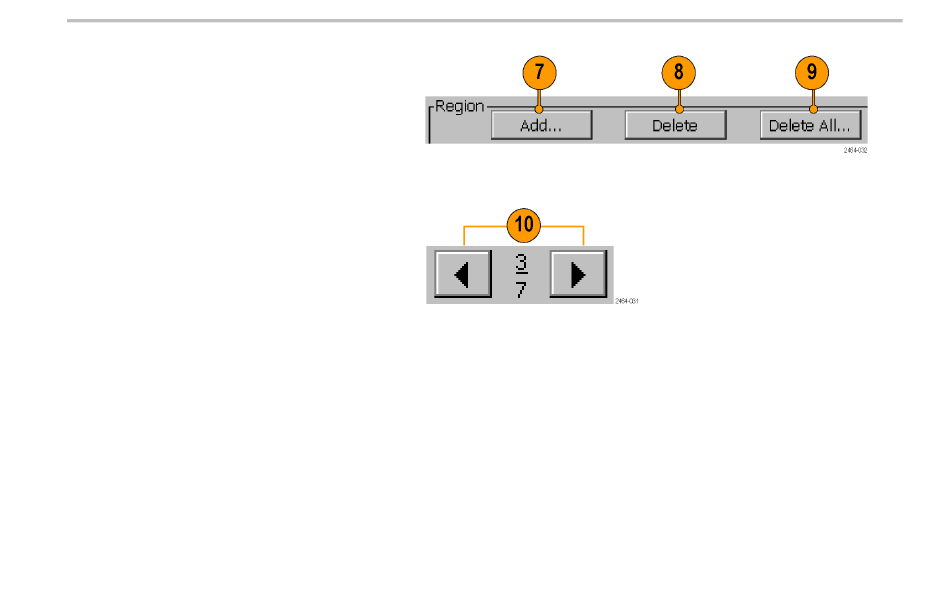

7. Tap the Region Add button to define a new
region on the signal.
8. Tap the Region Delete button to delete the
current selected region.
9. Tap the Region Delete All button to delete
all defined regions from the signal.
10. Tap the Previous Region or Next Region
arrow buttons to display and select the
previous or next defined region on the
signal. The region order is based on the
region measurement frequency (from left to
right on the waveform), not in the order that
they were created. If the region is off the
screen, the instrument displays the region.
The numbers indicate the current region
(top number) and the total number of
regions (bottom number). Regions are
listed from the lowest frequency (left end
of signal) to highest frequency. As regions
are added or deleted, the number assigned
to a particular region may change.
