Calibrate the touch screen

Before using the instrument for the first time, calibrate the touch screen display to respond correctly to your taps. The instrument
user interface is based on touch screen technology. You tap (touch) virtual controls on the instrument screen to select and operate
instrument controls. Virtual controls behave the same way as physical controls.

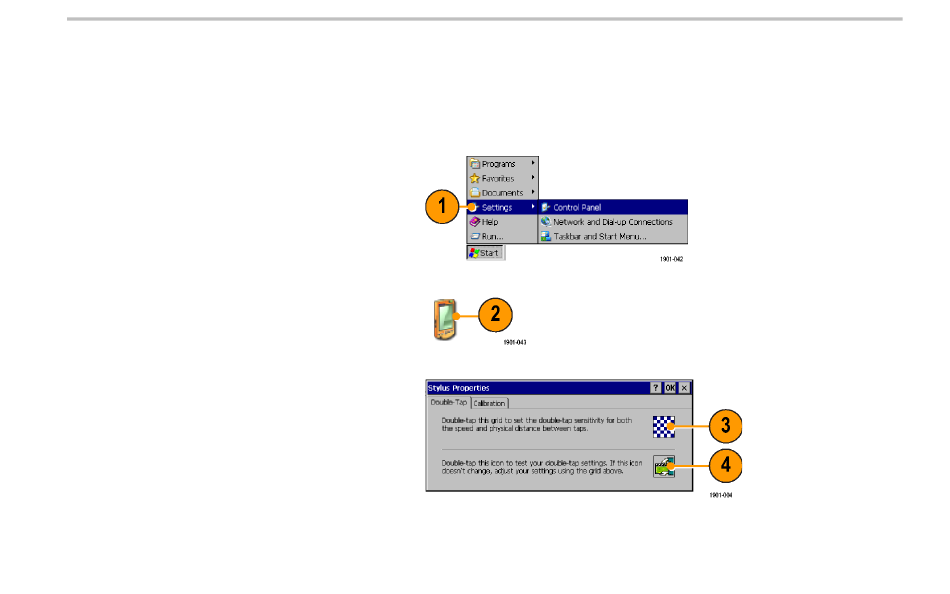

1. Tap Start > Settings > Control Panel to
open the Control Panel screen.
2. Double-tap the Stylus icon on the Control
Panel screen.
3. In the Double-Tap tab, double-tap the
checkerboard grid at a comfortable speed
with your stylus or finger to set the tap rate.
4. Double-tap the test icon to verify your
settings.
