SAM3Gplus User Guide V2.5

6.2 RJ45 Socket

Pin Signals
1 VIN
2 DCD
3 DTR
4 GND
5 RXD
6 TXD
7 CTS
8 RTS

6.3 MiniB USB Connector

Pin Signal
1 VIN
2 D-
3 Dplus
4 N/C
5 GND
Important Note : RS232 and USB ports must not be connected/operated simultaneously
9
Description
Input voltage 5Vdc - 30Vdc
Data Carrier Detect
Data terminal Ready
Common Ground
Serial Data out of the SAM
Serial Data into the SAM
Clear to Send
Ready to Send

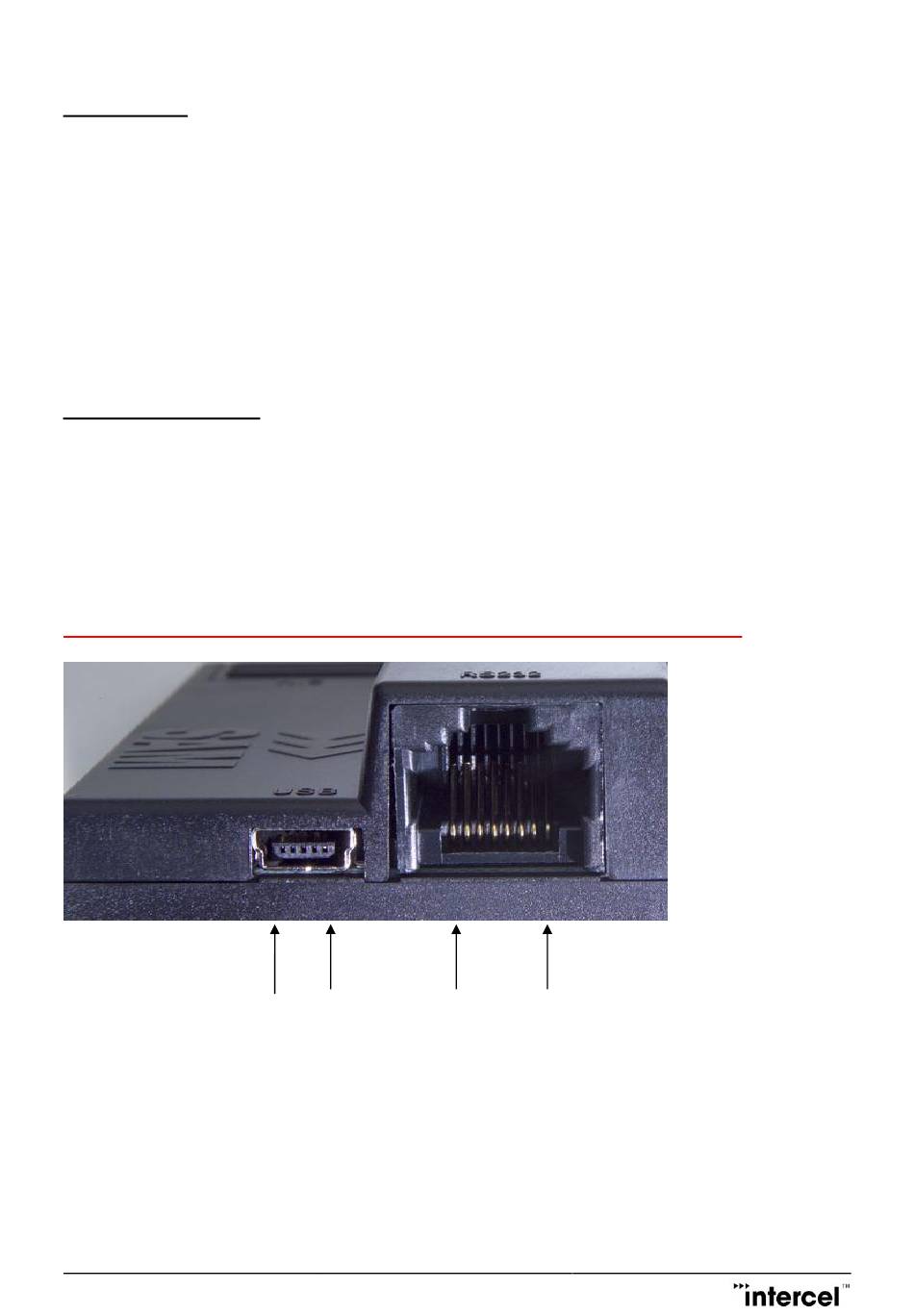

Pin5 Pin1 Pin8 Pin1
