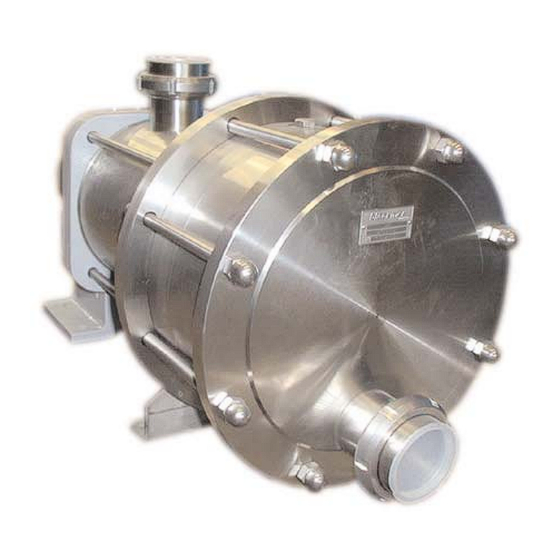

  • Page 1 Section 1001 Effective November 2008 Replaces March 2008 Original instructions C24 i - C36 i PUMPS INSTALLATION OPERATION MAINTENANCE Your distributor : Z.I. La Plaine des Isles - F 89000 AUXERRE - FRANCE Tel. : +33 (0)3.86.49.86.30 - Fax : +33 (0)3.86.49.87.17...

  • Page 2: Table Of Contents

    • Pump stopped, the pressure must not exceed 6 bar (87 psi). - Maximum differential pressure : Commissioning date : • C24 i ..9 bar (130,5 psi)* • C36 i ..6 bar (87 psi)* - Cylinder capacity :...

  • Page 3: Overall Dimensions

    1. OVERALL DIMENSIONS NT 1001-C00 11.08 C24 i - C36 i e 3/21...
  • Page 4 1. OVERALL DIMENSIONS (continued) NT 1001-C00 11.08 C24 i - C36 i e 4/21...
  • Page 5 1. OVERALL DIMENSIONS (continued) NT 1001-C00 11.08 C24 i - C36 i e 5/21...
  • Page 6 1. OVERALL DIMENSIONS (continued) NT 1001-C00 11.08 C24 i - C36 i e 6/21...

  • Page 7: Installation

    When looking at the front cover, the direction of rotation specified for this application. will be anti-clockwise. Verification of the correct rotation direction : Turn the pump the wrong way is not dangerous for the pump. NT 1001-C00 11.08 C24 i - C36 i e 7/21...

  • Page 8: Hoisting Devices

    2.5 UNIT ASSEMBLY can cause personal injury The following instructions apply to pumps delivered with or property damage. a bare shaft or for MOUVEX motor-driven pump units (if the latter have no specific instruction notice). CAUTION 2.5.1 INSTALLATION OF UNITS WARNING...
  • Page 9 The motors should be protected with circuit breakers and suitable fuses. Connect the regulatory electrical grounding. NT 1001-C00 11.08 C24 i - C36 i e 9/21...

  • Page 10: Utilisation

    3.4 PUMP STOP conditions without the drive is less than 83 dB(A). So as not to damage the pump, make sure that the pump is completely stopped before closing the valves. NT 1001-C00 11.08 C24 i - C36 i e 10/21...

  • Page 11: Clean In Place (Cip) & Sterilisation In Place (Sip)

    It can be reduced for easier types of The bypass valve is adjusted to divide the flow bet- cleaning. ween the circuit flowing through the C Series pump and the bypass circuit. NT 1001-C00 11.08 C24 i - C36 i e 11/21...

  • Page 12: Pumps Arranged In Parallel

    Cleaning the installation : Max P 6 bar C Series pump C Series pump The pump must not run during this operation. The C Series pump is stopped when cleaning the instal- lation. NT 1001-C00 11.08 C24 i - C36 i e 12/21...

  • Page 13: Successive Cycles

    • 13-32 Open-end spanner • Hub puller • 85 Open-end spanner or Monkey wrench Tightened torques : • M8 : 18 Nm • M16 : 100 Nm • M24 : 200 Nm NT 1001-C00 11.08 C24 i - C36 i e 13/21...

  • Page 14: Opening Of The Pump

    • Disconnect the pump from the discharge pipe. • Unscrew the 8 nuts 106 and remove the 8 tierods 105 and 107. • Remove the outlet tube 402 and its seals 205. NT 1001-C00 11.08 C24 i - C36 i e 14/21...

  • Page 15: Checking Of Parts

    (i.e. with a steam ste- rilization), then remove any impurities from the external threads by washing with a brush follo- wed by rinsing with a bactericide solution before reassembly. NT 1001-C00 11.08 C24 i - C36 i e 15/21...

  • Page 16: Assembly Of Cylinder/Piston

    (8 x M16 assembly torque 100 Nm). • Place thread locking adhesive (Loctite ® 243* or equivalent) on the thread of the transmission hub 596. Loctite ® is a registered trademark. NT 1001-C00 11.08 C24 i - C36 i e 16/21...

  • Page 17: Protection Of The Bellows

    117 and 513. The nuts 115 must be re-mounted with thread locking adhesive (Loctite ® 243* or equivalent) : 4 x M16 : Assembly torque 100 Nm. Loctite ® is a registered trademark. NT 1001-C00 11.08 C24 i - C36 i e 17/21...

  • Page 18: Changing The Lip Seal

    90°C (in an oil bath or at HF). * Standard oil provided by MOUVEX : CS05 Food synthe- tic oil (Safety data sheet is supplied with the new pump and on inquiery).

  • Page 19: Changing The Orientation Of The Ports

    • Replace the 8 rods 107 and tighten the nuts 106. • Make sure that the seal 205 is secured in its housing. Secure it with a grease that is compatible with the transferred product if necessary. NT 1001-C00 11.08 C24 i - C36 i e 19/21...

  • Page 20: Draining Of Bearing

    Oi level Min : 1 mm Max : 5 mm * Standard oil provided by MOUVEX : CS05 Food synthe- tic oil (Safety data sheet is supplied with the new pump and on inquiery). * Other oil provided by customer.

  • Page 21: Options

    T connection with the pump that under the pressure switch setting, it cuts the electrical must be reused circuit. Pump bearing support To connect the pressure switch, follow the manufacturer instruction. NT 1001-C00 11.08 C24 i - C36 i e 21/21...
