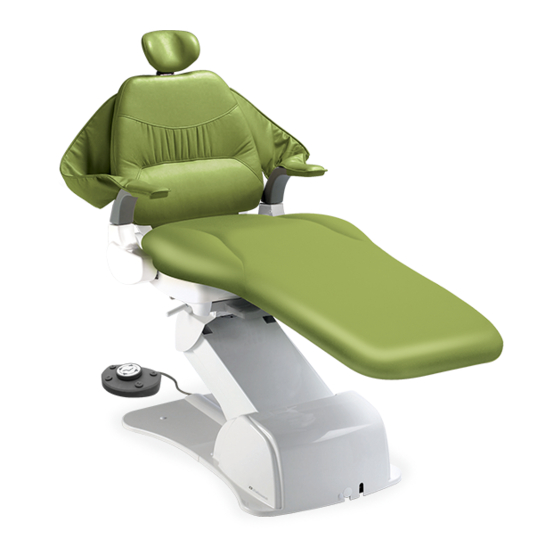

DENTAL CHAIR
This manual provides operating instructions for the
The instructions contained in this booklet should be throughly read and
understood before operating the chair.
After the installation has been completed, keep this manual in a safe place
future
reference.
OPERATING
INSTRUCTIONS
IMPORTANT
B50N
B50N
Chair.
for
1E0571AE
R
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Belmont X-Calibur V
Summary of Contents for Belmont X-Calibur V
- Page 1 B50N DENTAL CHAIR OPERATING INSTRUCTIONS IMPORTANT This manual provides operating instructions for the B50N Chair. The instructions contained in this booklet should be throughly read and understood before operating the chair. After the installation has been completed, keep this manual in a safe place future reference.
- Page 2 Table of Contents 1. Overview and Major Components ------------------------------------------- 1 2. Dimensions and Specifications ------------------------------------------------ 2 3. Operations ------------------------------------------------------------------------ 3 4. Care and Maintenance --------------------------------------------------------- 6 Intended Use of the Product This product is intended exclusively for use in conjunction with procedures that are limited to the examination and treatment of dental patients, and must be operated by qualified dentists, or by dental staff that are under the supervision of the dentist.
- Page 3 Keep patient’s and operator’s hands, fi ngers or parts of the body away from moving parts of the chair. • In the case of any malfunction, contact an authorized Belmont dealer. • This product may be affected by sources that generate excessive electromagnetic waves.
-
Page 4: Overview And Major Components
1. Overview and Major Components Figure 1 1. Headrest Assembly 9. Seat Cushion 17. Sub Link Cover (Lower) 2. Backrest Cushion 10.Backrest Cover 18. Main Power Switch 3. Armrest 11.Seat Back Support 19. Fuse Holder 4. Main Link Cover 12.Dome Casting Cover 20. -
Page 5: Dimensions And Specifications
2. Dimensions and Specifications 2-1. Dimensions (Inches) 74-1/4 23-5/8 18-1/2 17-9/16 34-3/4 74-1/4 15-7/8 34-3/4 23-1/4 23-7/8 24-1/2 34-3/4 70˚ 20˚ 6˚ 20˚ 6˚ 10˚ 34-3/4 22-1/4 2-2. Specifications * Power sealed hydraulic system powered by 3.5A motor pump * Base plate: 1/2" steel * Bearings at link points - low friction in steel jacket. -
Page 6: Operations
Always observe the patient and the equipment to ensure patient safety. • If any problem is observed with the chair, other equipment or the patient during treatment, stop operation immediately, for patient safety. Contact an authorized Belmont service technician to resolve all equipment-related issues before resuming use of equipment. •... - Page 7 Foot & Touch Pad 3-2. Controls Backrest Control Controls Seat Height Adjustments Raise the seat by pressing foot, backrest or touchpad control labeled with chair symbol identified by an arrow pointing in the UP direction. Lower the seat by pressing foot, backrest or touchpad control labeled with chair symbol identified by an arrow pointing in the DOWN direction.
- Page 8 3) Safety Shutoff/ Motion Cancellation safety plate is provided below base link cover to stop motion of chair when the plate comes into contact with an object when the seat is being lowered. Seat motion can be stopped at any time by depressing foot control, backrest control or chair control touchpad switches.
-
Page 9: Care And Maintenance
4. Care and Maintenance 4-1. Cleaning and Disinfection CAUTION Do not spray liquids directly onto chair surfaces and operation panel. In order to prevent damage to electrical components and systems, do not apply excess cleaning solution onto chair surfaces. Routine Care Clean plastic and upholstery surfaces regularly using a mild soap and water solution. - Page 10 (Daily, Weekly & Monthly). If it is determined that any part of the product requires service or repair, discontinued use of the product and immediately contact an authorized Belmont dealer. No. Item...
- Page 11 • should be scheduled with an authorized Belmont dealer. • For any and all product repairs, please contact an authorized Belmont dealer. Parts and components that require a periodic check-up s t r i t e Electric wiring of moving parts...
- Page 12 Company or person authorized to install this equipment Name : Address : Importer for U.S.A. BELMONT EQUIPMENT, Division of Takara Belmont USA, Inc. 101 Belmont Drive, Somerset, New Jersey 08873 U.S.A. TEL.: (732) 469-5000 / (800) 223-1192 FAX.: (732) 356-1035 Importer for Canada TAKARA COMPANY, CANADA, LTD.
