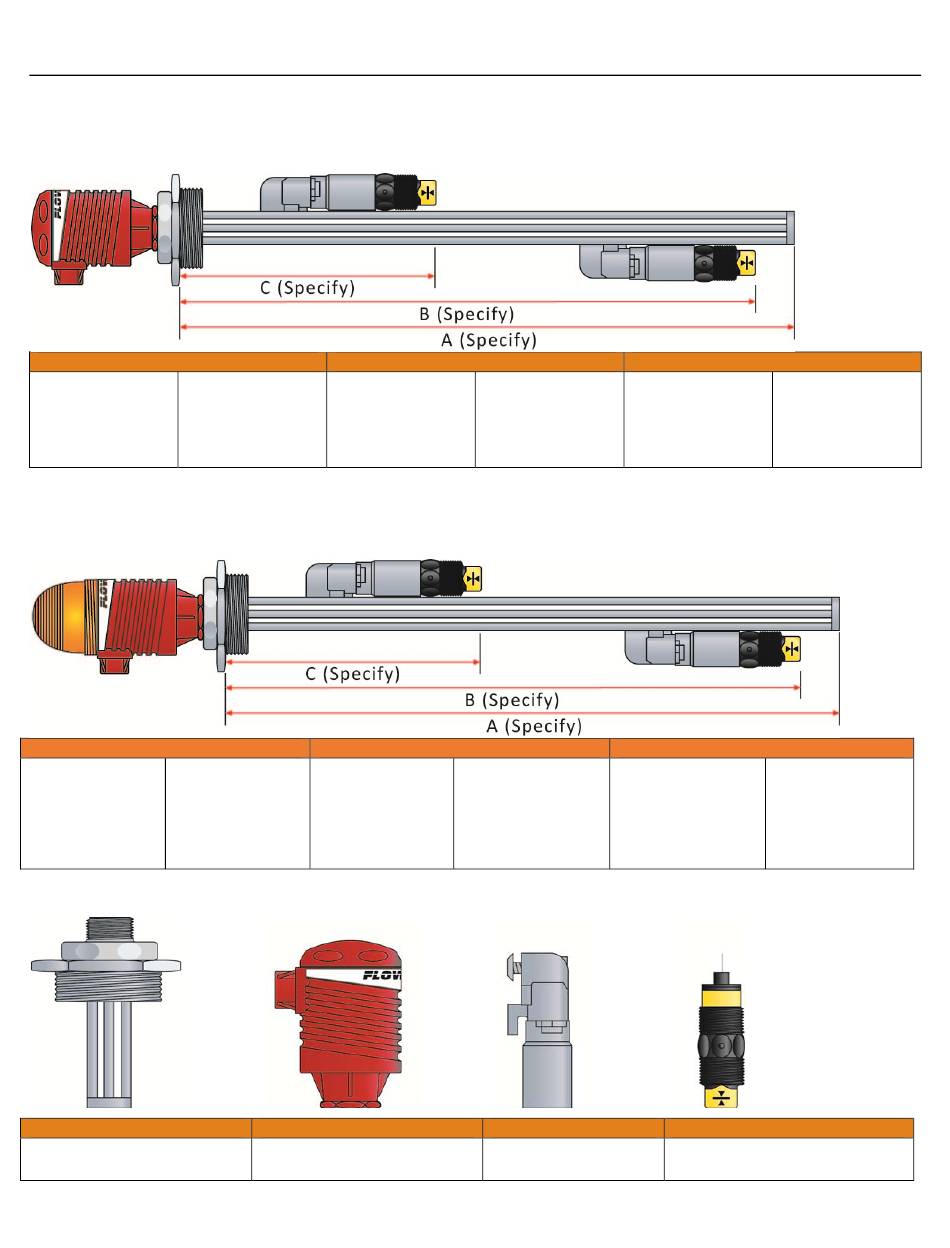

Specifications / Dimensions
STANDARD CONFIGURATION:
(AU23-431_, AV23-431_ or AZ23-431_)
Ultrasonic
AU23-4313
AU23-4317
2 x LU10-1305
2 x LU10-1305
1 x LM10-1_01
1 x LM10-1_61
2 x LM30-1001
2 x LM30-1001
1 x LC11-1001
1 x LC11-1051
STANDARD CONFIGURATION:
(AU23-432_, AV23-432_ or AZ23-432_)
Ultrasonic
AU23-4323
AU23-4327
2 x LU10-1305
2 x LU10-1305
1 x LM10-1_01
1 x LM10-1_61
2 x LM30-1001
2 x LM30-1001
1 x LC11-1002
1 x LC11-1052
COMPONENT LIST:
Smart Trak™ Fitting P/N:
LM10-1_01 or LM10-1_61
LM900006 Rev 0_3
Buoyancy
AV23-4313
2 x LV10-1301
1 x LM10-1_01
2 x LM30-1001
1 x LC11-1001
Buoyancy
AV23-4323
2 x LV10-1301
1 x LM10-1_01
2 x LM30-1001
1 x LC11-1002
Relay Controller P/N:
LC11-1001, LC11-1051,
LC11-1002 or LC11-1052
Vibration
AV23-4317
AZ23-4313
2 x LV10-1301
2 x LZ12-1405
1 x LM10-1_61
1 x LM10-1_01
2 x LM30-1001
2 x LM30-1001
1 x LC11-1051
1 x LC11-1001
Vibration
AV23-4327
AZ23-4323
2 x LV10-1301
2 x LZ12-1405
1 x LM10-1_61
1 x LM10-1_01
2 x LM30-1001
2 x LM30-1001
1 x LC11-1052
1 x LC11-1002
Switch Car Kit P/N:
LM30-1001
Step Two
AZ23-4317
2 x LZ12-1405
1 x LM10-1_61
2 x LM30-1001
1 x LC11-1051
AZ23-4327
2 x LZ12-1405
1 x LM10-1_61
2 x LM30-1001
1 x LC11-1052
Switch-Tek™ P/N:
LU10-1305, LV10-1301
or LZ12-1405
5
|
