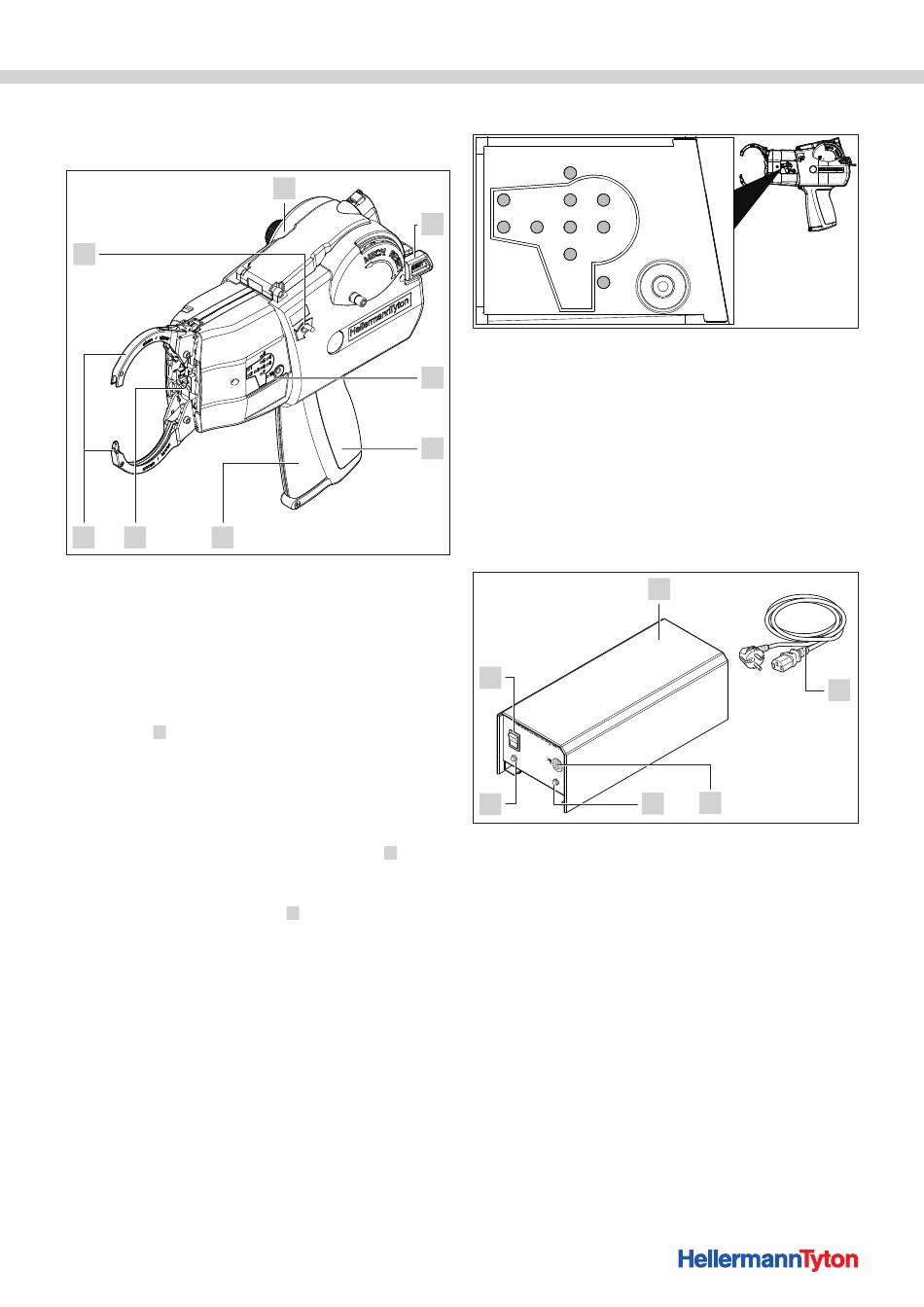

Functional description

3 2 1 Tool ATS3080

8
7 6 5
1 ATS3080
2 Reset lever
3 Display
4 Grip
5 Triggering lever (trigger)
6 End cap with front sensor
7 Upper and lower jaws
8 Release lever
The ATS3080 is an electrically powered system for
1
bundling electrical wires, for example, and for securing parts
of various kinds with tie ribbon and tie heads, à "Tie heads
and tie ribbons" on page 25.
The force and binding can be set on the ATS3080.
The items to be bundled have to be positioned between the
jaws and against the end cap. The triggering lever
pressed.
If a fault occurs, the user is shown information about the
location of the fault on the display
LED illuminates in red, à "Display" on page 10
Operating Instructions • ATS3080 • 02-2017 • v01 • 102-01002
1
2
3
4
is then
5
and the corresponding
3
Display
4
1 5 8
2 3 6 9
7
10
1 Lock position
2 Switch
3 Start position
4 Lock material
5 Motor
6 Time
7 Overload
8 Ribbon material
9 Roller block
10 Reset

3 2 2 Power pack 3080

6
A T
S 3
0 8
0 P
o w
e r
0
P a
c k
P ow
er
S ig
na
l
5
1 Housing
2 Power cable (socket and fuse on the rear of the housing)
3 Connection for ATS3080
4 LED indicator Signal
5 LED indicator Power
6 Main switch
The power pack 3080 supplies electricity to the ATS3080. To
the interfaces on both sides of the housing, à "Interface
overview, power pack 3080" on page 25.
Design and function
1
4 3
2
10
