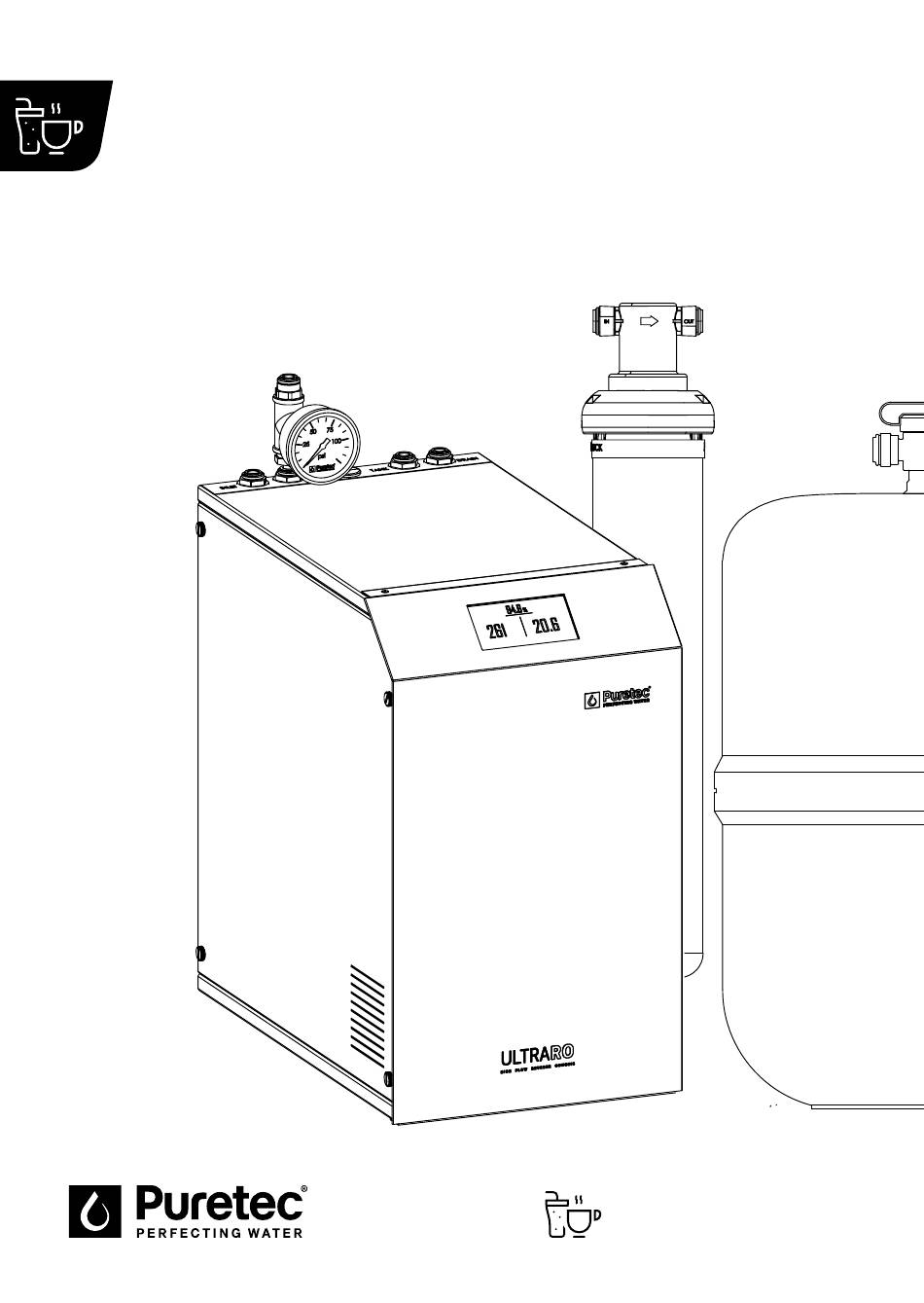

- Page 1 Ultra RO DynamicFlow Reverse Osmosis System User Guide F O O D S E R V I C E...
-
Page 2: Table Of Contents
Warranty ................................20 Puretec Customer Service Thank you for purchasing a Puretec Ultra Reverse Osmosis System. Your system is a proven performer manufactured from only quality materials and components. It will give years of reliability and trouble free operation if installed and maintained properly. -
Page 3: Important Notes
The systems are designed for metropolitan supply water but can be used in other situations. For other types of water supply, please contact your local Puretec dealer. Flush systems for 2 minutes after any period of non-use more than 2 days. For a period of non-use of 2 weeks or more, it may be necessary to replace the cartridges. -
Page 4: Consumables
To maintain the high quality of the purified water the cartridges need changing every 6 - 12 months, depending on water quality and usage. You can obtain replacement cartridges from your local Puretec dealer. To maintain performance standards and warranty, use only genuine Puretec replacements. -
Page 5: Parts Included

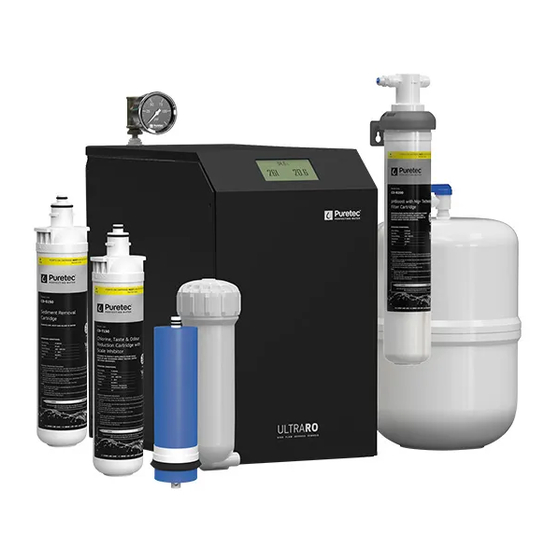

Reverse Osmosis Unit 16 L Pressure Tank 3/8" yellow x 2m 3/8" blue x 2m Spanner Power Cord User Guide & Warranty Card Pressure Limiting Pressure Gauge Quick Connect Remineralising Valve (500 kPa) Fittings Filter Kit Ultra RO Series User Guide... -
Page 6: Exploded Diagram
Stage 1 RO3C Model: CO-S150 RO3HC Model: CO-I150 (closest to the back of the unit) Display Panel Stage 2 CO-T150 (closest to the front of the unit) Ultra RO Unit Shell Installation & Operation Manual Copyright © Puretec Pty Ltd 2023... - Page 7 Exploded Diagram CO-R200-K Remineralising Filter Kit Right Side Access Panel (Membrane) Black Thumbscrews Stage 3 Reverse Osmosis Membranes RET3012-500 Membrane Assembly Ultra RO Series User Guide...
- Page 8 Dimensions Fig. 2 - Dimensions Installation & Operation Manual Copyright © Puretec Pty Ltd 2023...
-
Page 9: Model Information
Replacement Cartridges & Parts Stage 1 - Sediment / Hardness Reduction Cartridge: CO-S150 Stage 2 - Taste & Odour Reduction Cartridge: CO-T150 Stage 3 - Reverse Osmosis Membranes (3 x required): RET3012-500 Stage 4 - Remineralising Cartridge: CO-R200 Ultra RO Series User Guide... - Page 10 Stage 1 - Sediment / Hardness Reduction Cartridge: CO-I150 Stage 2 - Taste & Odour Reduction Cartridge: CO-T150 Stage 3 - Reverse Osmosis Membranes (3 x required): RET3012-500 Stage 4 - Remineralising Cartridge: CO-R200 10 Installation & Operation Manual Copyright © Puretec Pty Ltd 2023...
-
Page 11: Installation Diagram
Inlet 3/8" Green Tubing Tank Line 3/8" Yellow Tubing Pressure Limiting Valve COLD Storage Tank WATER LINE Drain Line Ultra RO Unit Remineralsing Filter Kit 3/8" Black DRAIN Tubing Power Cord BACK VIEW TOP VIEW Ultra RO Series User Guide... -
Page 12: Installation
Remove the right and left side panel from the unit by unscrewing the 4 black thumbscrews. Remove the package (3 x reserve osmosis membranes) inside the unit. Undo the first membrane housing cap, using the supplied membrane housing spanner. 12 Installation & Operation Manual Copyright © Puretec Pty Ltd 2023... - Page 13 17. Open an outlet after the filtration and open the flush valve on the left-hand side of the unit located after the pre-filtration and directly above the pump and flush the system for 3-5 minutes, until air bubbles are not present. Ultra RO Series User Guide...
-
Page 14: Operation & Maintenance
Ultra RO Unit - Unscrew the 4 black thumbscrews on the left side of the unit, remove the access panel, exposing the filter cartridges. Remove all packaging from the new cartridge, including any wraps or caps (if applicable). 14 Installation & Operation Manual Copyright © Puretec Pty Ltd 2023... - Page 15 10. If leaks occur, shut off the water supply, unscrew the cartridges & re-insert the cartridges into the filter heads. If leaks persist discontinue use and call Puretec. 11. Flush the filters for 2-5 minutes. Close the flush valve and the downstream tap.
-
Page 16: Membrane Replacement
Undo the 3/8" tube from the fitting at the top of the membrane housing. Fig. 5 - Membrane Replacement Diagram Membrane Housing Thumbscrews Head Ultra RO Unit Membrane Membrane Access Panel Housing 16 Installation & Operation Manual Copyright © Puretec Pty Ltd 2023... -
Page 17: Leak Detector
• If the metal plate on the control box has come in contact with water and the solenoid valve cannot be switched off, call Puretec to advise or have a plumber clean and repair the leak. •... -
Page 18: Use Guidelines
Maximum operating pressure 600* kPa. Note: Where line pressure exceeds 500 kPa, an approved pressure limiting device must be installed to comply with Australian & New Zealand Plumbing Standards. • Maximum operating temperature 50°C. 18 Installation & Operation Manual Copyright © Puretec Pty Ltd 2023... -
Page 19: Troubleshooting
Blocked filter cartridge. Replace filter cartridges. Scaled or fouled RO Membrane. Replace membranes. In the event of any other breakdown, call Puretec on 1300 140 140 (AU) 0800 130 140 (NZ) for advice. Ultra RO Series User Guide... -
Page 20: Warranty
1300 140 140 (AU) or 0800 130 140 (NZ). To make a warranty claim, contact us directly or the place of original purchase. All costs relating to a warranty claim must be approved by Puretec prior to any work being carried out. 1 year warranty is 1 year parts and labour. Excludes consumables. - Page 21 Ultra RO Series User Guide...
- Page 22 22 Installation & Operation Manual Copyright © Puretec Pty Ltd 2023...
- Page 23 Ultra RO Series User Guide...
- Page 24 AUG2023...
