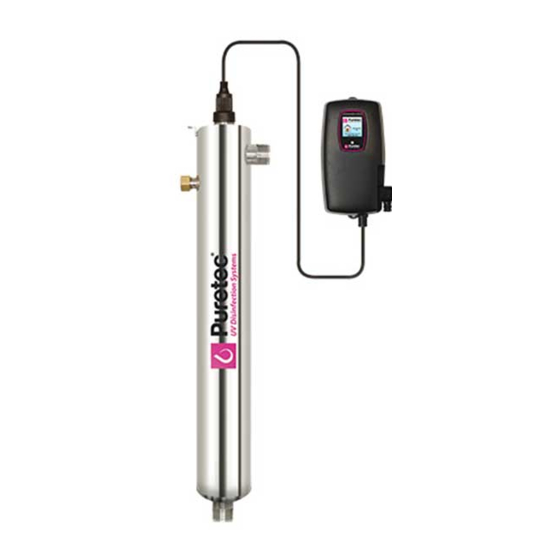

- Page 1 User Guide RI Series Puretec Radfire Commercial UV Water Sanitiser For correct operation & installation it is essential to observe these instructions. FEB2021...
-
Page 2: Table Of Contents
This is chemical free process which is simple in its concept and effective in its abilities to inactivate microorganisms present in the water supply. Simple maintenance, continuous disinfection and ultimately safe water. Puretec makes it that easy. Customer Service Helpline 1300 140 140 (Australia) 0800 130 140 (New Zealand). -
Page 3: Safety Considerations
UV lamp without adequate eye protection and always protect your skin from direct exposure to the UV light. For complete disinfection, use ONLY genuine Puretec replacement parts. Do not operate the unit if it has any damaged or missing components. -
Page 4: Water Quality Parameters
You can have your water tested at a private analytical laboratory or by your local dealer. It is always recommended to install pre-filtration of at least 5 microns prior to a Puretec UV disinfection system. Not designed for brackish or sea water. -
Page 5: Assembly
Fig. 1 - Puretec RI-6K Controller RI-CON1 Gland Nut RI-GNP O-ring RI-ORP UV Lamp RL6K Sleeve Spring RI-SLSP Quartz Sleeve RQS6K Glow Plug UV Chamber UV Sensor RI-SEN1 (optional for RI-6K) Copyright © Puretec Pty Ltd 2021 Puretec Radfire RI Series... - Page 6 Assembly Fig. 2 - Puretec RI-10K, RI-17K & RI-17KA Controller RI-CON2 Gland Nut RI-GNP O-ring RI-ORP UV Lamp RL10K, fits RI-10K Series RL17K, fits RI-17K & RI-17KA Sleeve Spring RI-SLSP Glow Plug Quartz Sleeve RQS10K, fits RI-10K RQS17K, fits RI-17K & RI-7KA...
-
Page 7: System Sizing
System Sizing System Sizing All Puretec UV systems are rated for a specific flow rate in water that meets the quality parameters on page 5. NOTE: that increasing the flow above this rating or disinfecting water that does not meet the quality parameters will decrease the dose and therefore compromise the microorganism inactivation. -
Page 8: Installation
The controller will require a ground fault circuit interrupter (GFCI or GFI) outlet and should be mounted beside or above the chamber. NOTE: All Puretec UV disinfection systems are intended for indoor use only as they should not be exposed to the elements. - Page 9 (see Figure 7). Insert the sensor so it is fully seated and hand tighten the sensor nut. Copyright © Puretec Pty Ltd 2021 Puretec Radfire RI Series...
- Page 10 With the key removed from the lamp, orient it so the label is upright and facing you. The key will plug into the lamp key port on the right side of the controller (Figure 9). 10 Installation & Operation Manual Copyright © Puretec Pty Ltd 2021...
-
Page 11: System Disinfection
Plug in the UV system and wait until it is ready for operation. 2. Remove the filter cartridge from the last sump and fill it with 1-2 cups of Puretec TankSafe™. Replace the sump and slowly turn on the water supply. -
Page 12: Cleaning - Quartz Sleeve
4. Reinstall the filter cartridge into the sump and flush the TankSafe™ by opening all faucets for at least 10 minutes. Your home has now been completely disinfected with your Puretec UV system ready to inactivate any microorganisms that enter the home. -
Page 13: Cleaning - Uv Sensor
For Puretec standard UV systems, even though they have a visual and audible warning built into the controller, a green status screen does not necessarily indicate that the water coming from this system is in fact potable (safe to drink). -
Page 14: Controllers
The Puretec RI-17KA includes a UV intensity monitor, but all controllers include an “infinite expandability port” located on the right side of the controller. Simply plug in an optional UV... -
Page 15: Optional Modules Check
On systems without the UV monitor, the default screen shows the Puretec Home Screen. At any point during operation the user is able to scroll through the Puretec Home Screen, Lamp life remaining, QR Code, Contact Info and Maintenance Parts screens by pressing the button located on the front of the controller. - Page 16 RI-10K, RI-10KA, RI-17K & RI-17KA RI-17KA Operational Screens On systems with the UV monitor, the system will display the same screens as on the Puretec standard RI systems except the UV Intensity replaces the home screen. The UV Intensity screen displays the level of UV light detected by the sensor. UV intensity can be affected by poor water quality, scaling on the quartz sleeve and/or sensor, lamp failure or lamp expiring.
- Page 17 Once the deferral expires, the alarm will sound once again. The deferral can be repeated up to three times. NOTE: At any point after lamp expiration, the water may be unsafe for consumption and should not be consumed without another form of disinfection. Copyright © Puretec Pty Ltd 2021 Puretec Radfire RI Series...
- Page 18 Refer to Installation for instructions on installing the new lamp. QR Codes Puretec uses the QR code to store a link to a specific page on our website. Camera phones equipped with the correct reader application can scan the image of the QR code and connect to a Puretec web page.
-
Page 19: Troubleshooting
Replace any module that is not A bad connection has been detected when plugged directly into detected in the IEP port. the controller. Copyright © Puretec Pty Ltd 2021 Puretec Radfire RI Series... - Page 20 Warning: After any hard alarm, the home or facility should be disinfected. Follow the steps under the “System Disinfection” heading. Boil Water Advisory: If any failure occurs on a Puretec UV system, the water must not be used for human consumption until the system is returned to a safe operational mode.
-
Page 21: Temperature Management Devices
Temperature Management Temperature Management Devices Your Puretec UV system is designed to run continuously to ensure optimal disinfection. However during periods when no water is drawn through the system, the energy from the disinfection process can cause the temperature of the water inside the chamber to rise. In extreme situations elevated water temperature or the fluctuation in temperature can lower the output of the UV lamp. - Page 22 By harnessing the power of ultrasonic waves, it enables your UV system to dim power in times of low to no flow, saving you money on energy, reducing water temperature, and decreasing the risk of fouling. 22 Installation & Operation Manual Copyright © Puretec Pty Ltd 2021...
-
Page 23: Specifications
4-20mA Module RI-MOD420 (sold separately) Temperature Mgmt. RI-TMS4 RI-TMS4 RI-TMS5 Valve: Optional Cooling Fan: RI-FAN (sold separately) RI-FAN (sold separately) Lamp Change Reminder: Lamp Out Indicator: Shipping Weight: 8 kg 7.3 kg 9.8 kg Copyright © Puretec Pty Ltd 2021 Puretec Radfire RI Series... - Page 24 4-20mA Output: 4-20mA Module RI-MOD420 (sold separately) Temperature RI-TMS4 (sold separately) Management Valve: Optional Cooling Fan: RI-FAN (sold separately) Lamp Change Reminder: Lamp Out Indicator: Shipping Weight: 9.8 kg 24 Installation & Operation Manual Copyright © Puretec Pty Ltd 2021...
-
Page 25: Ri-17Ka Performance Data
NSF/ANSI standard shall be installed upstream of the system. While testing was performed under standard laboratory conditions, actual performance may vary. The systems and installation shall comply with applicable provincial/state and local regulations. Copyright © Puretec Pty Ltd 2021 Puretec Radfire RI Series... -
Page 26: Warranty
2 years from date of purchase. To make a claim under the warranty, take the product and proof of purchase to place where you purchased the product, and they will lodge a Warranty Request with Puretec. 2 year warranty is 1 year parts and labour, plus 1 year parts only. Excludes consumables. - Page 27 Warranty Warranty/Australia This warranty is given by Puretec Pty Ltd, ABN 44 164 806 688, 37-43 Brodie Road, Lonsdale SA 5160, telephone no. 1300 140 140 and email at sales@puretec.com.au. This warranty is provided in addition to other rights and remedies you have under law: Our goods come with guarantees which cannot be excluded under the Australian Consumer Law.
