replacing the cable

Cables must always be replaced at the first sign of wear, even if only the outer rubber protection is worn.
WArnInGS
Carefully check the state of the cables once a month.
ALWAYS use cables supplied directly by Technogym.
To replace the cable, proceed as follows:
- remove the protective panel covering the weight stack, following the
instructions found in the paragraph headed Removing the front weight stack
panel;
- unscrew the screws (A) of both cams (B) and remove the cable; as soon as
they are released from the cables, the two levers will rise slightly;
- insert the new cable and retighten screws (A) on one cam only (follow the

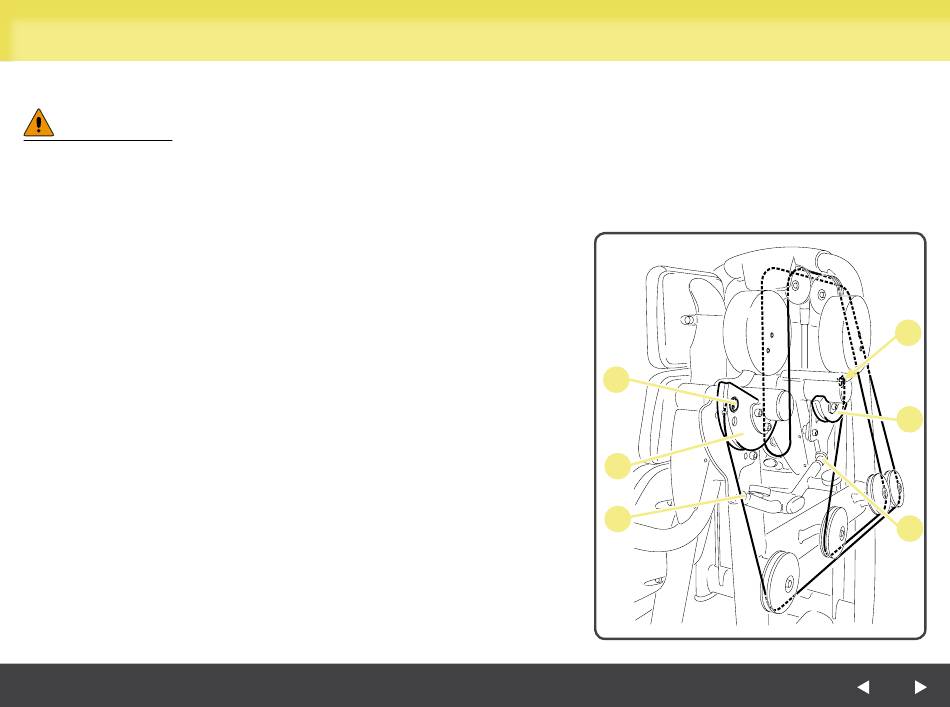

original path of the cable as shown in the drawing);
- insert a thickness of approx. 10 mm (1/2 inch) under the first weight in the
weight stack;
- bring the two levers into contact with the rubber travel stops (C);
- tighten the cable and tighten screws (A) on the other cam, always keeping
the levers in contact with the rubber travel stops;
- remove the 10 mm (1/2 inch) thickness from the weight stack.
- refit the protective panel on the weight stack.
