- Page 1 S E L E C T I O N T H E S T R E N G T H E V O L U T I O N Abductor User manual All equipment...
-
Page 2: Table Of Contents
Contents Identification of the manufacturer and equipment ......3 Description of the equipment ............4 Technical data ................... 5 Safety devices and warnings ............6 Place of installation ................8 Fitting the number holder ..............9 Lifting and moving the equipment ........... 10 Routine maintenance .............. -
Page 3: Identification Of The Manufacturer And Equipment
C Serial number D Maximum user weight E Equipment classification F Consultation of user manual required Technogym S.p.A. - Via Perticari, Gambettola (FC) - Italy Designed by Technogym - Made in Slovakia - EU SELECTION MED C97900 - ALJP Maximum user’s body weight: 180 kg... -
Page 4: Description Of The Equipment

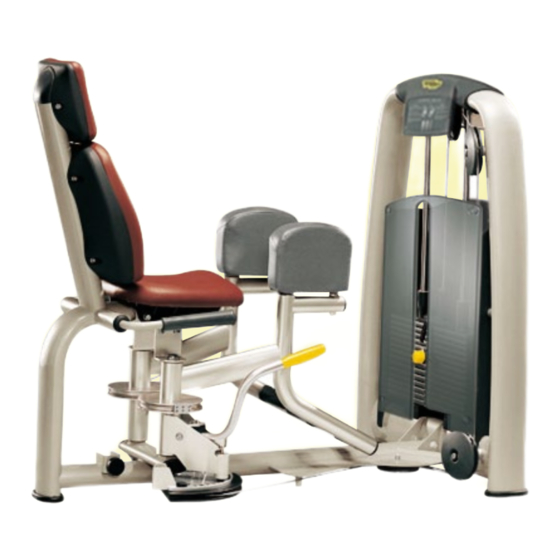

Description of the equipment A Seat: where the user sits to perform the exercise. B Levers: operated by the user by means of the kneepads (C); before starting to exercise, or between one set and the next, the starting position can be adjusted so as to modify the range of motion by using the ROM device. D ROM device: system for adjusting the Range of Motion and the starting position. -
Page 5: Technical Data
Technical data 1420 mm (56") 1400 mm 850 mm (55") (34") 193 kg (425 lb) 229 kg 505 lb) 70 kg (140 lb) 100 kg (200 lb) Abductor... -
Page 6: Safety Devices And Warnings
Safety devices and warnings The maximum user weight is 180 kg (397 lb). The weight stack is covered on the outside by protective panels. The equipment has no sharp corners. All parts which come into contact with the user's body are suitably protected with rubber coverings or padding. Pay particular attention to the parts of the equipment with labels indicating “BEWARE OF CRUSHING”. - Page 7 Safety devices and warnings WARNINGS Attention must be paid to the labels attached to the equipment, as they provide information about possible risks and hazards. We recommend immediately replacing the labels when they become damaged or difficult to read. This symbol accompanies safety warnings. It is used to draw attention to potential risks of personal injury. Pay attention to all safety warnings accompanied by this symbol to avoid possible injury.
-
Page 8: Place Of Installation
Place of installation To ensure safe, comfortable and effective use of the equipment, the place of installation must comply with certain specific requirements; in particular, before choosing where to install the equipment we recommended that you check that the following conditions are available: a temperature between +10°C and +25°C;... -
Page 9: Fitting The Number Holder
Fitting the number holder The number holder must be fixed immediately underneath the top: standing facing the equipment, attach the number holder on the left, on the cover of guide rail (A). Find the place where the two screws (B) are to be inserted. Attach the number holder using the two screws;... -
Page 10: Lifting And Moving The Equipment
Lifting and moving the equipment Snap-on castors (optional) must be used to move the equipment. WARNING Move the equipment very carefully, because it may become unstable and tip over. The castors for moving the equipment snap on under the feet of the equipment, after it has been raised, and are held in place by the special straps. - Page 11 Lifting and moving the equipment Proceeding in the same way, lift the equipment on seat side and insert the swivel castor. Lastly, lift the equipment again, remove the safety wedges and place the wheels on the floor. WARNINGS When moving the equipment, we recommend pushing it only from the weight stack side, and not from any other side.
-
Page 12: Routine Maintenance
Call in the Technogym Technical Support Service for instructions on any maintenance operations not described in this manual. Abductor... -
Page 13: Replacing The Padded Parts
Replacing the padded parts If any of the padding shows signs of wear, especially in the interests of hygiene, we recommend replacing them completely. To replace seats and backrests loosen the screws on the opposite side to the padding. Kneepads can be removed towards the top, after loosing the screws (A). Abductor... -
Page 14: Replacing The Cable
WARNINGS Carefully check the state of the cables once a month. ALWAYS use cables supplied directly by Technogym. To replace the weight stack cable, you must: remove the protective panel covering the weight stack, following the instructions found in the paragraph headed Removing the front weight stack panel;... -
Page 15: Adjusting Cable Tension
Adjusting cable tension It is possible to take up some of the slack in the weight stack cable using adjuster (C), after loosening lock nut (B). WARNING To pull the cable taut after replacement, it may be helpful, when tightening the screws (A), to insert a thickness of approx. 10 mm (1/2”) under the first weight in the weight stack. -
Page 16: Removing The Front Protective Weight Stack Panel
Removing the front protective weight stack panel The front protective weight stack panel is fixed to the frame by eight screws. To remove the panel, you must: unscrew the four screws (A); unscrew the four screws (B) while holding the panel with one hand; remove the panel. -
Page 17: Technical Service
When contacting the Technogym Technical Support Service, please specify the following details: equipment model, date of purchase, serial number, precise description of the problem. WARNING Any operations carried out by persons not authorized by Technogym on the equipment will invalidate the warranty. Abductor... -
Page 18: Storage
Storage If the equipment will not be used for a prolonged period, we recommend storing it: in a clean and dry place, covered with a cloth to protect it from dust; in an environment with a temperature between +10°C and +25°C and a humidity between 20% and 90%. Use the original packing materials, to better preserve the equipment. -
Page 19: Disposal
Disposal It is always good practise to ensure that the equipment can never constitute a hazard; therefore do not leave the equipment where children may play with it. Do not dump the equipment in the environment, or in public areas or private areas accessible to the public. The equipment is made from recyclable materials such as steel, aluminium and plastic, which must be disposed of in the manner prescribed by the urban refuse collection regulations in force, by firms specialised in urban and environmental hygiene. -
Page 20: Using The Equipment
