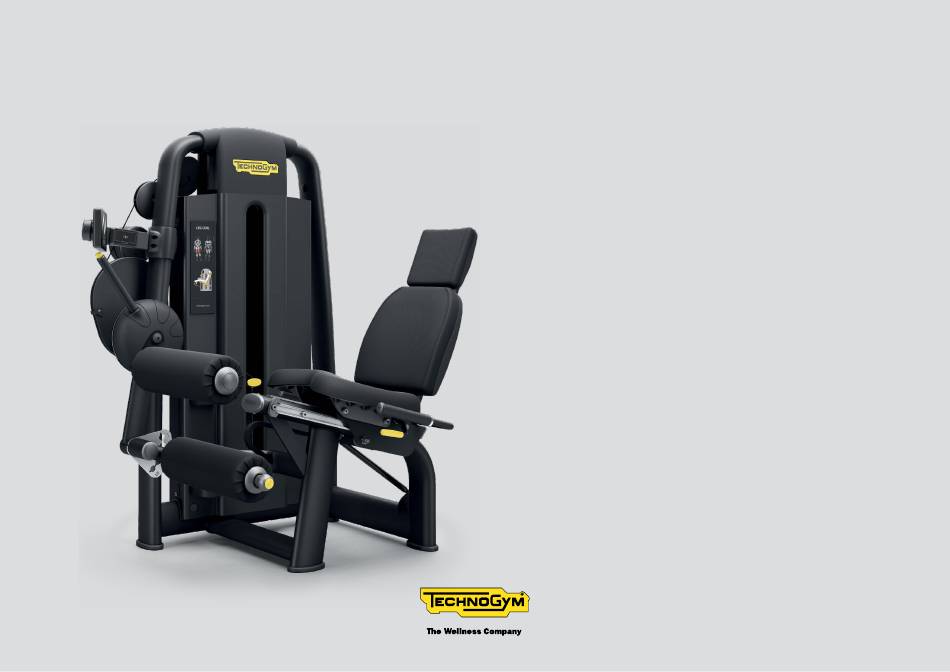

- Page 1 SELECTION PRO CONNECTED STRENGTH LEG CURL User manual...
-
Page 2: Table Of Contents
Contents Important safety instructions ................... 3 Personal safety ........................5 Identification of the manufacturer and equipment ............8 Description of the equipment .................... 9 Technical data ........................10 Place of installation ......................11 Fitting the number holder ....................12 Lifting and moving the equipment ................. 13 Adjusting the equipment .................... -
Page 3: Important Safety Instructions
Close supervision is necessary when any equipment is used by, on or near children or disabled persons. Never operate any equipment if it has damaged power supply cord, if it is not working properly or if it has been dropped or damaged. In these circumstances, contact the Technogym Technical Support service. Leg Curl... - Page 4 Important safety instructions Keep hands away from moving parts. Never drop or insert any object into any opening. Do not use outdoors. Do not leave the equipment outdoors, exposed to the elements. Do not expose the equipment to water jets. The maximum user weight is 397 lb (180 kg).
-
Page 5: Personal Safety
Before each use check the equipment, check that the cable is correctly routed inside the races of all the pulleys and the state of wear of the cable. If there are signs of wear, contact the Technogym Technical Support service. - Page 6 The weight stack is covered externally with protective panels. Do NOT use the equipment is even only one of them is missing. The instruction label must be applied on each piece of equipment. Technogym declines all responsibility in the event of the equipment being used before the instruction label has been affixed.
- Page 7 We recommend immediately replacing the labels when they become damaged or difficult to read. Technogym is not responsible for any damage due to any failures or damage caused by unauthorized service, misuse, accident, negligence, improper assembly or installation, debris resulting from construction activities in the product’s environment, rust or corrosion as a result of the product’s...
-
Page 8: Identification Of The Manufacturer And Equipment
Identification of the manufacturer and equipment The equipment and manufacturer identification plate, affixed on the right side of the seat, gives the following details: A Manufacturer's name and address B CE Mark C Serial number D Maximum user weight E Equipment classification F Consultation of user manual required Leg Curl... -
Page 9: Description Of The Equipment

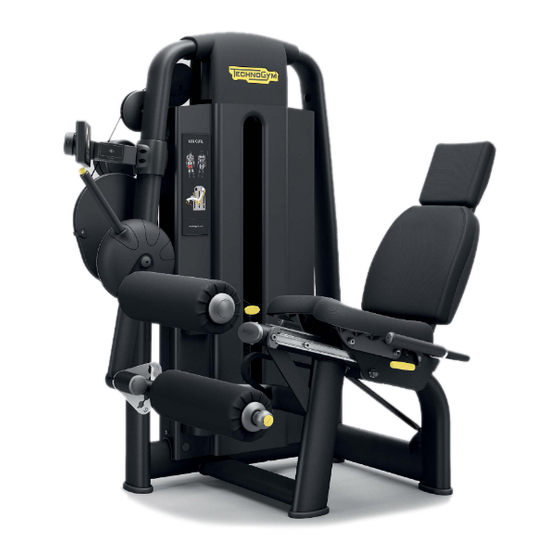

Description of the equipment A Seat: where the user sits to perform the exercise. It has a backrest (G). B Exercise lever: operated by the user by means of the roller (D). C ROM device: allows the starting position to be adjusted, therefore the Range of Motion. E Weight stack: lever (B), operated by the user, moves the weights along two guide rails by means of a cable. -
Page 10: Technical Data
Technical data 1410 mm (56") 1130 mm (45") 1070 mm (42") 260 kg (573 lb) 290 kg (639 lb) 95 kg (190 lb) 125 kg (250 lb) Leg Curl... -
Page 11: Place Of Installation
Place of installation To ensure safe, comfortable and effective use of the equipment, the place of installation must comply with certain specific requirements; in particular, before choosing where to install the equipment we recommended that you check that the following conditions are available: a temperature between +10°C and +25°C;... -
Page 12: Fitting The Number Holder
Fitting the number holder Standing facing the equipment, attach the number holder on the left, on the cover of the weight pack guide rail. Proceed as follows to apply the number holder: Remove the cover (A). Find the place (B) where the two screws are to be inserted. Use a drill to complete the holes. -
Page 13: Lifting And Moving The Equipment
Lifting and moving the equipment Snap-on castors (optional) must be used to move the equipment. WARNINGS Move the equipment very carefully, because it may become unstable and tip over. Do not use the equipment with the castors fitted. The castors are to be used only for moving the equipment and must be removed before exercising on it. - Page 14 Lifting and moving the equipment Proceeding in the same way, lift the equipment on seat side and insert the swivel castors. Lastly, lift the equipment again, remove the safety wedges and place the wheels on the floor. WARNINGS When moving the equipment, we recommend pushing it only from the weight stack side, and not from any other side. When lifting the equipment, do not press against the weight stack guard.
-
Page 15: Adjusting The Equipment
Adjusting the equipment The equipment must be level for proper operation. If necessary, use the adjuster screw located under foot (A), clearly indicated by two raised arrows. Raise the equipment and adjust the screw until the equipment is level. WARNING Given the weight of the equipment, we recommend that it should always be lifted by more than one person. -
Page 16: Routine Maintenance
Do not use chemicals or solvents. WARNING Be careful not to rub too hard on the drawings and instructions shown on the labels. Call in the Technogym Technical Support Service for instructions on any maintenance operations not described in this manual. Leg Curl... -
Page 17: Replacing The Padded Parts
Replacing the padded parts If any of the padding shows signs of wear, especially in the interests of hygiene, we recommend replacing them completely. To replace the seat padding, unscrew the screws located on the opposite side of the padding.. Proceed as follows to replace the rollers: remove the cap (A);... -
Page 18: Replacing The Cable
Cables must always be replaced at the first sign of wear, even if only the outer rubber protection is worn. WARNINGS Carefully check the state of the cables once a month. ALWAYS use cables supplied directly by Technogym. To replace the cable, you must: remove the rear protective weight stack panel; unscrew screws (A);... - Page 19 Replacing the cable insert the new cable from the adjuster side (ensuring that it follows the same route as the original cable, as shown in the illustration); tighten screws (A); screw in adjuster (C) and screw on lock nut (B); refit the protective panel on the weight stack.
-
Page 20: Adjusting The Cable Tension
Adjusting the cable tension Use the adjuster (C) to adjust the tension of the weight stack cable: loosen the locknut (B); tighten or loosen the adjuster (C) to correctly adjust the cable tension; tighten the locknut (B). WARNING To pull the cable taut after replacement, it may be helpful, when tightening the screws (A), to insert a thickness of approx. -
Page 21: Removing The Rear Protective Weight Stack Panel
Removing the rear protective weight stack panel Remove the rear protective weight stack panel to access the cable. Do not use the product even if only one of the protective weight pack panels is missing. Proceed as follows to remove the panel: unscrew the four screws (C);... - Page 22 Removing the rear protective weight stack panel remove the two covers (E); loosen the two nuts (F); unscrew the two nuts (G); remove the panel. To reassemble the panel, carry out the above steps in reverse order. Leg Curl...
-
Page 23: Technical Service
When contacting the Technogym Technical Support Service, please specify the following details: equipment model, date of purchase, serial number, precise description of the problem. WARNING Any operations carried out by persons not authorized by Technogym on the equipment will invalidate the warranty. Leg Curl... -
Page 24: Storage
Storage If the equipment will not be used for a prolonged period, we recommend storing it: in a clean and dry place, covered with a cloth to protect it from dust; in an environment with a temperature between +10°C and +25°C and a humidity between 20% and 90%. Use the original packing materials, to better preserve the equipment. -
Page 25: Disposal
Disposal It is always good practise to ensure that the equipment can never constitute a hazard; therefore do not leave the equipment where children may play with it. Do not dump the equipment in the environment, or in public areas or private areas accessible to the public. The equipment is made from recyclable materials such as steel, aluminium and plastic, which must be disposed of in the manner prescribed by the urban refuse collection regulations in force, by firms specialised in urban and environmental hygiene. -
Page 26: Using The Equipment
Using the equipment Select the workload with the pin (F). To access the seat comfortably push the button on the lever (A), and move the lever forward to lower the roller pads. Lift the lever (B) under the handgrip on your left to adjust the seat. Your knees rest against the upper roller (C) while the lower roller (D) is behind your legs. - Page 27 Using the equipment Flex and extend the legs at the same time with a slow and controlled motion. For greater stability during the exercise, grasp the side handgrips. Maintain control of the workload during the movement; during the return phase the weight stack must not return completely to the rest position.
- Page 28 Activate the Internet connection on your device (for example, on your smartphone). Identify the position of the NFC sensor on your device. Place your personal device on the equipment, with its sensor over the NFC logo. In this way, the personal device will connect to the Technogym cloud.
- Page 29 Leg Curl_en_AA 0SM00964...
