- Page 1 Technical Specifications V1.7 vCam-6 Technical Specifications V1.7 Page 1 of 11...
- Page 2 Technical Specifications V1.7 Worldwide Locations World Headquarters, United States of America Central/South America and the Caribbean Vivax-Metrotech Corporation Ventas para América Latina 3251 Olcott Street, Santa Clara, CA 95054, USA 3251 Olcott Street, Santa Clara, CA 95054, USA T/Free : 1-800-446-3392...
-
Page 3: Typical Applications

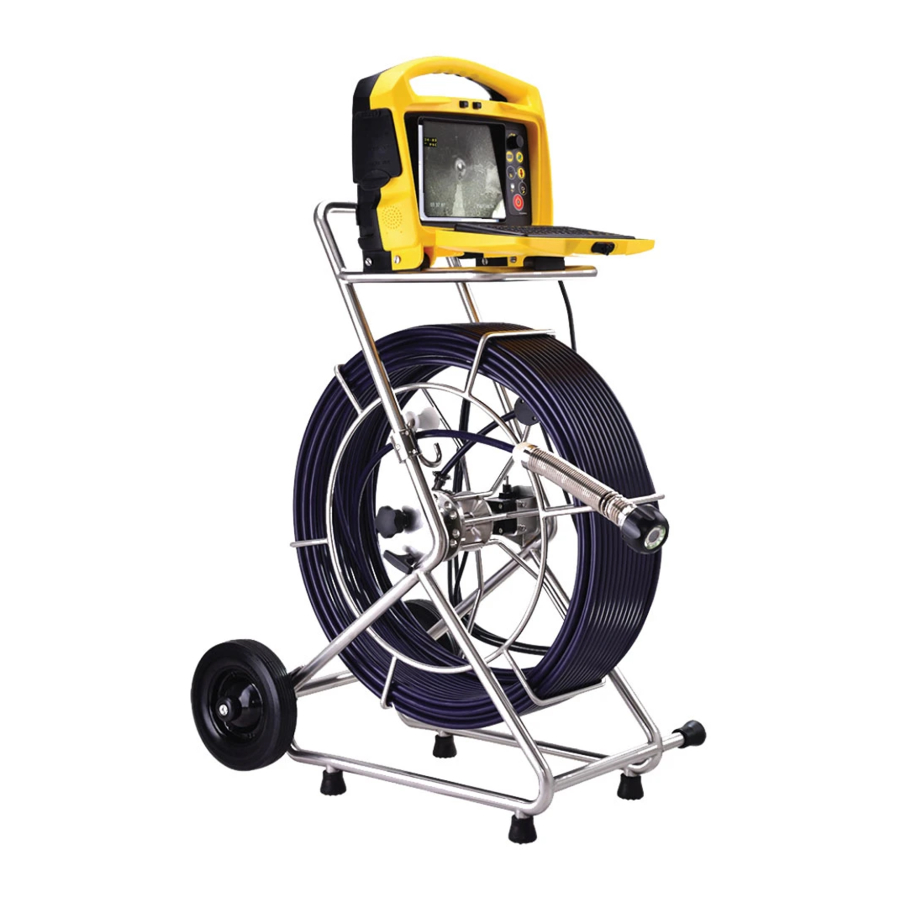

D18-MX 0.70” / 18mm Fixed position color camera D26-MX 1” / 26mm Self-leveling color camera The vCam-6 control module is backward compatible with previous camera heads supplied with legacy Type-C, Type-P, Type-M, and Type-M2 reels and camera heads. vCam-6 Control Module... - Page 4 Technical Specifications V1.7 Type-MX Reel D18-MX Camera Head D26-MX Camera Head Mini size systems B. vCam-6 Control Module Component Specification Dimensions 14.2" (L) x 5.91" (W) x 12.6" (H) (360mm(L) x 150mm(W) x 320mm(H)). Weight 12.1 lbs. (5.49kg) •...
-
Page 5: Operator Controls
Technical Specifications V1.7 Mounting Mounts directly atop standard size Type-CP reel Operating System Firmware is updatable via USB port with files available from the Vivax-Metrotech website, local distributor or factory Options and Accessories vCam Live View Mobile phone/tablet app for video streaming, image capturing, adding text and file sharing C. - Page 6 Technical Specifications V1.7 Text Colors - Use to change the color choice of the Text Writer. White, black, yellow or green Ctrl + F3 Text - Use to turn the Text Writer on and off Background - Use to add a background to the text from the text writer, white, black or grey...
- Page 7 Technical Specifications V1.7 Minimum Break Strength 4000lbs (1800kg) Bend Radius Approximately 40 x the rods OD, Minimum bend radius approximately 5.5"/139mm Sonde Frequencies 512Hz, 640Hz, or 33kHz selectable and set as default in the control module setup menu Sonde Output/Range 5-Watt output power provided by the control module.
- Page 8 Technical Specifications V1.7 Auto Upright Cantilever self-leveling design Construction Stainless steel housing with scratch-resistant Sapphire lens Environmental Water resistance up to 11 BAR pressure Temperature Range Storage: -4º F to 158º F (-20º C to +70º C), Operating: 14º F to 122º F (-10º C to +50º C)
- Page 9 Technical Specifications V1.7 2.41" / 61.2mm Diameter with standard skid installed Total Dimensions 1.8" (Dia.) x 2.6" (L) / 46mm (Dia.) x 68.4mm (L) without standard skid 2.41" / 61.2mm Diameter with standard skid installed Weight 0.73lbs (0.33kg) Shipping Weight 0.84lbs (0.38kg)
- Page 10 Technical Specifications V1.7 Options and Accessories Drip Bag - Attaches around the reel cage to catch debris from the pushrod G. Camera Heads (For MX Mini Reel) Fixed D18-MX, Position Color Camera, 0.70 inch / 18mm diameter Component Specification Application Used on MX Reel, in pipe diameters from 1.5"...
-
Page 11: Shipping Weights
Technical Specifications V1.7 Aperture / FOV F2.0/88.4º Light Sensitivity 0.01 Lux Lighting 20.39 Lumens Auto Upright Cantilever self-leveling design Construction Stainless steel housing with scratch-resistant Sapphire lens Environmental Water resistance up to 10 BAR pressure Temperature Range Storage: -4º F to 158º F (-20º C to +70º C), Operating: 14º F to 122º F (-10º C to +50º C). -
Page 12: Warranty
Technical Specifications V1.7 Weight: 34 lbs. (16 kg) • 200 ft / 60m (North America Markets only) Dimension: 22.6" (L) x 13.5" (W) x 24.2" (H) (574 (L) x 343 (W) x 615 (H) mm) Weight: 48 lbs. (23 kg) D18-MX Camera Head * Dimensions: 9"...
