VK2-1080BIR37e
Quick Guide
Please read this manual thoroughly before use, and keep it handy for future reference.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VK2-1080BIR37e and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Vista VK2-1080BIR37e

Summary of Contents for Vista VK2-1080BIR37e

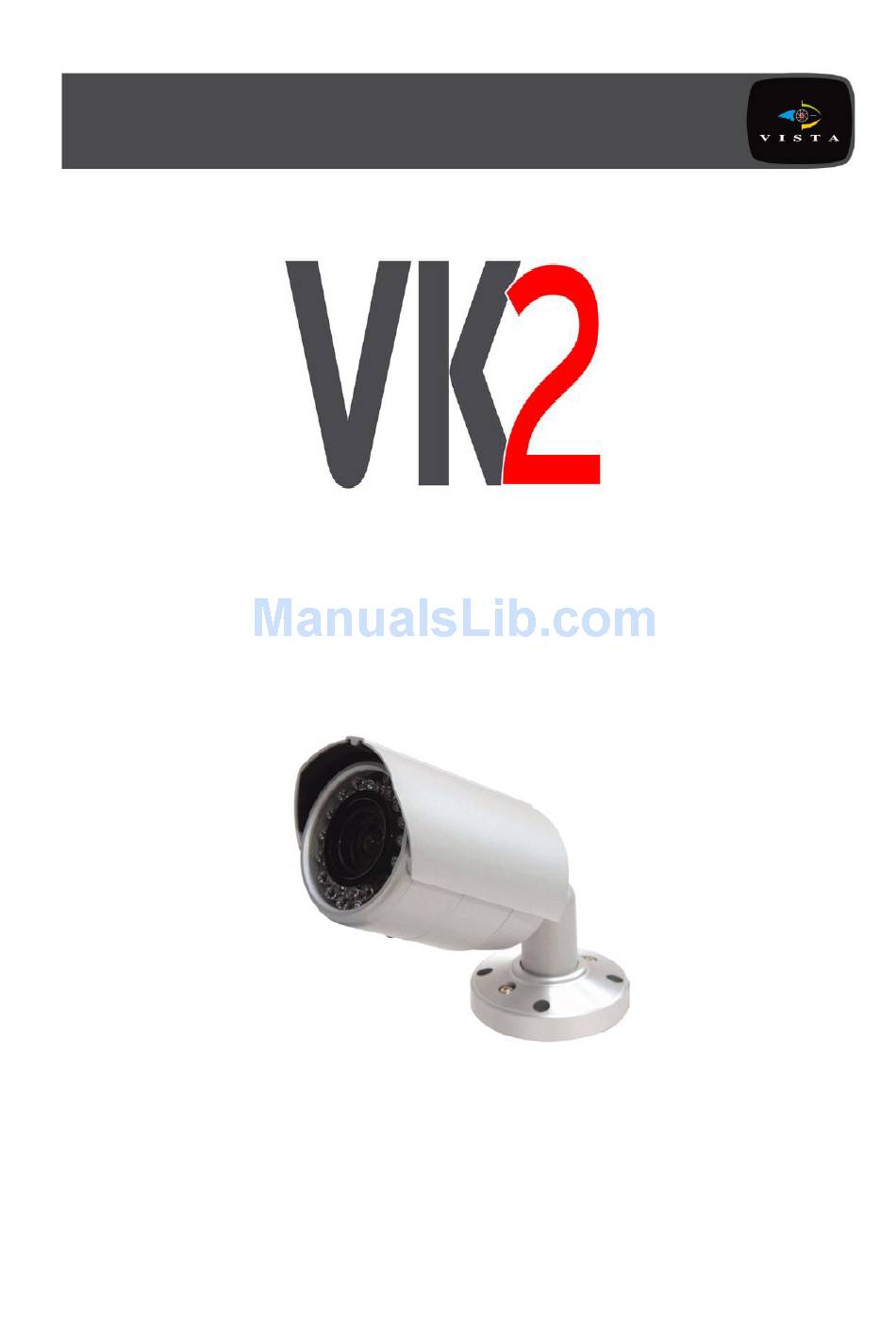

  • Page 1 VK2-1080BIR37e Quick Guide Please read this manual thoroughly before use, and keep it handy for future reference.

  • Page 2: Quick Installation Guide

    Quick Installation Guide VK2-1080BIR37e Quick user guide V1.0...
  • Page 3 Quick Installation Guide 1. Description This manual applies to the VK2-1080BIR37e full HD Bullet camera with IR illumination. • Installation Steps Follow these steps to install the VK2-1080BIR37e on your local network (LAN): 1. Check the package contents against the list below.
  • Page 4 See the diagrams below for the exact dimension Dimensions Unit: mm  Base Installation(Cable through the wall or ceiling with the mount base) Secure the camera to the wall or ceiling by the camera stand Ceiling Mount Wall Mount VK2-1080BIR37e Quick user guide V1.0...

  • Page 5: Installation

    Remove the front cap of the camera to insert the SD memory card. SD memory card slot Remove the front cap • Connecting the Power Connect the DC 12V power adaptor to the camera. (This connection is not used if using PoE power) VK2-1080BIR37e Quick user guide V1.0...

  • Page 6: Network Connection And Ip Assignment

    IP address to the device using the “Smart Manager” utility found on the supplied CD. (Default IP 192.168.30.220) Connect the VK2-1080BIR37e to the network and power up. Start SmartManager utility (Start>All programs>SmartManager>SmartManager), the main window will be displayed, after a short while any network devices connected to the network will be displayed in the list.

  • Page 7: Operation

    3.1 Access from a browser Start a browser. (Internet Explorer will be used in this example.) Enter the IP address or host name of the VK2-1080BIR37e in the Location/Address field of your browser. You can see a starting page. Click Live View or Setup to enter web page.
  • Page 8 Note: The default administrator username and password is “admin”. If the password is lost, the VK2-1080BIR37e must be reset to the factory default settings. See “3.6 Resetting to the Factory Default Settings”. 3.4 Live View Page...
  • Page 9 Basic, Live View, Video & Image, Event, and System Configuration. You can configure the VK2-1080BIR37e by clicking Setup in the top right-hand corner of the Live View page. Click on this page to access the online help that explains the setup tools When accessing the VK2-1080BIR37e for the first time, the “Admin Password”...

  • Page 10: Resetting To The Factory Default Settings

    (described in “3.5.6 System>Maintenance” of the User’s Manual) or use the Reset button on the network camera, as described below: Follow the instructions below to reset the VK2-1080BIR37e to the factory default settings using the Reset button. Reset Button Remove the front cap Switch off the VK2-1080BIR37e by disconnecting the power adapter.
  • Page 11 Quick Installation Guide VK2-1080BIR37e Quick user guide V1.0...
  • Page 12 Quick Installation Guide Printed in Korea VK2-1080BIR37e Quick user guide V1.0...
