2.13.1 Transmitter Mounting - Sample Block (Optional)

To mount the transmitter into the sensor block (preferred method), proceed as follows,
refer to Figure 18.
1. Ensure that the protective cover (2), and its desiccant capsule (2a), have
been removed from the tip of the transmitter.
2. Fit the bonded seal (4) over the threaded part of the transmitter body.
3. Screw the transmitter (1) into the sample block (3) and tighten to a
minimum torque setting of 30.5 Nm (22.5 ft-lbs). NOTE: Use the fl ats
of the hexagonal nut and not the sensor body.
4. Fit the transmitter cable/connector assembly to the plug located on the
base of the transmitter and tighten the fi xing screw (see Section 2.3).
Michell Instruments
The following procedure must be carried out by a
WARNING: Under no circumstances should the sensor
guard be handled with the fi ngers.
2
2a
1

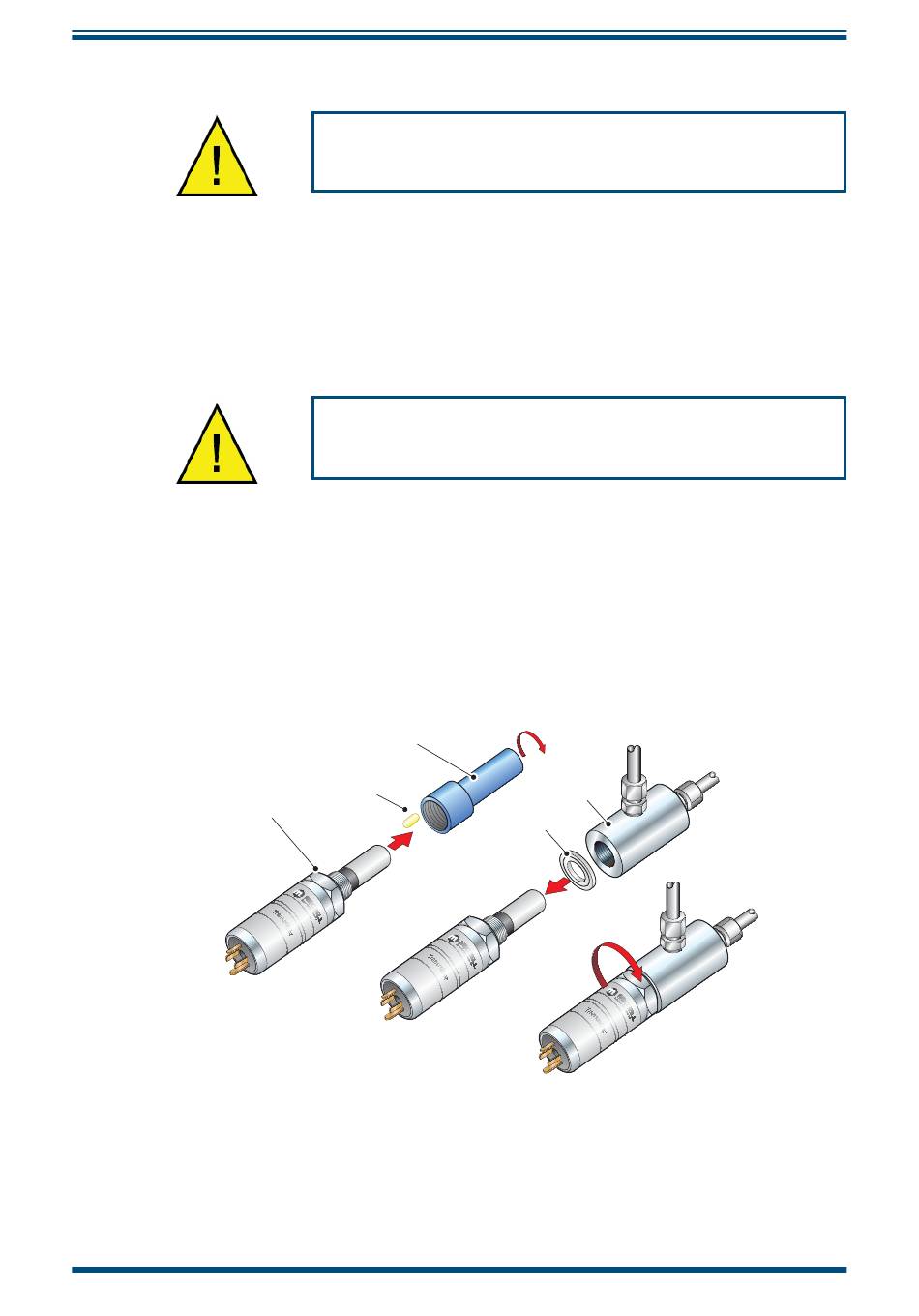

Figure 18 Transmitter Mounting - Sensor Block
qualifi ed installation engineer.
3
4
