2.12.1 Electrical Boundaries

600
500
400
300
200
100
Figure 17
2.13

Transmitter Mounting

Prior to installation of the transmitter, unscrew and remove the blue plastic cover and
retain for future use. Take care to prevent any contamination of the sensor before
installation (handle the transmitter by the main body only, avoiding contact with the
sensor guard).
The Easidew can be mounted into either a fl ow-through sensor sampling block (optional)
or directly inserted into a pipe or duct and can be operated at pressures of up to 45 MPa
(450 barg / 6500 psig) when fi tted with the bonded seal provided.
The recommended gas fl ow rate, when mounted in the optional sampling block, is 1 to
5 Nl/min (2.1 to 10.6 scfh). However, for direct insertion applications, gas fl ow can be
from static to 10 m/sec (32.8 fps).
NOTE: Pass the bonded seal over the 5/8"- 18 UNF mounting thread and
assemble into the sampling location by hand using the wrench fl ats only. DO
NOT grip and twist the sensor cover when installing the sensor.
When installed, fully tighten using a wrench until the seal is fully compressed and to the
following torque setting:
5/8" - 18 UNF
18
12 14 16 18
Supply Voltage

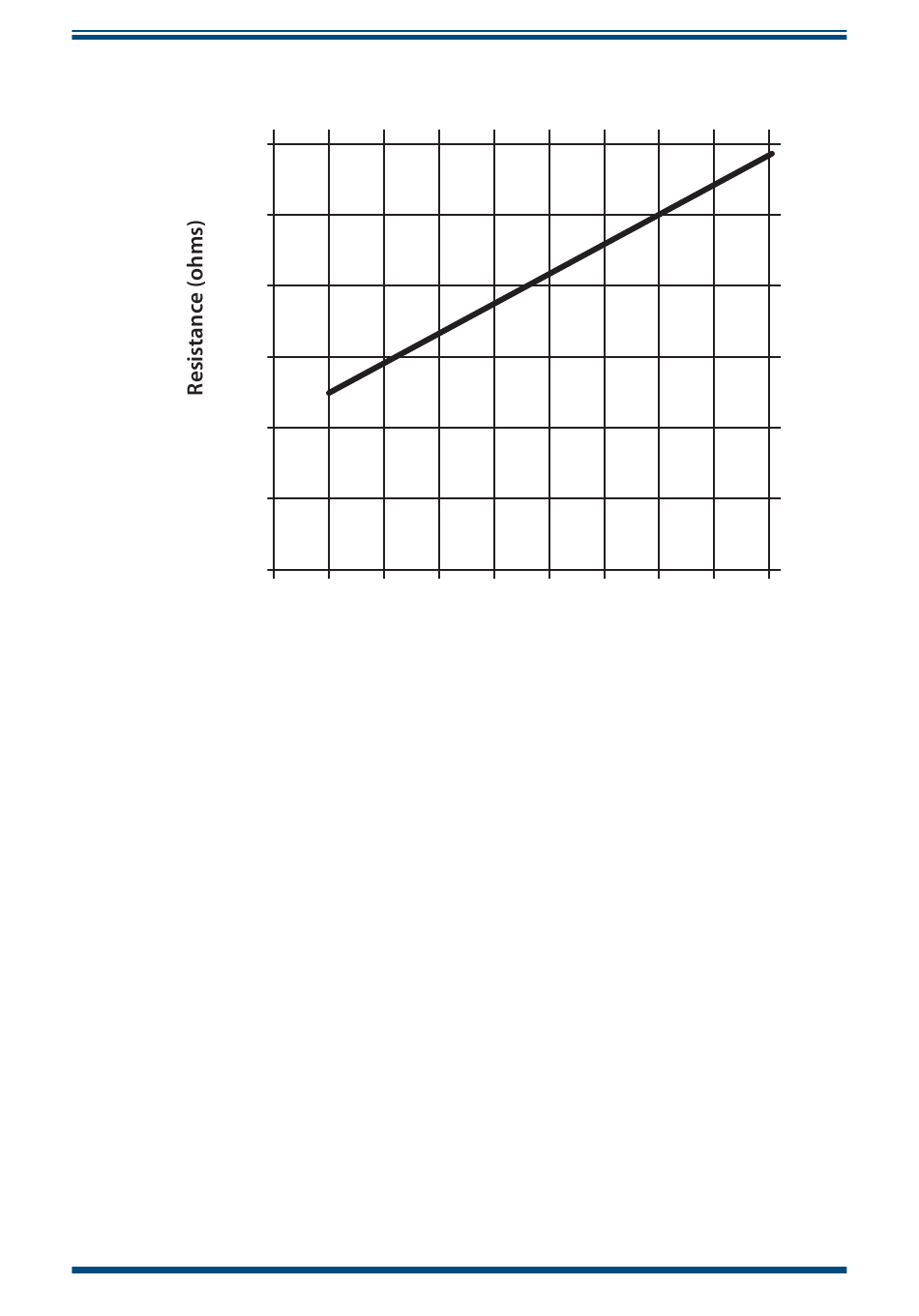

Maximum Load of Easidew - Including Cable Resistance
30.5 Nm (22.5 ft-lbs)
