INSTALLATION
2.10

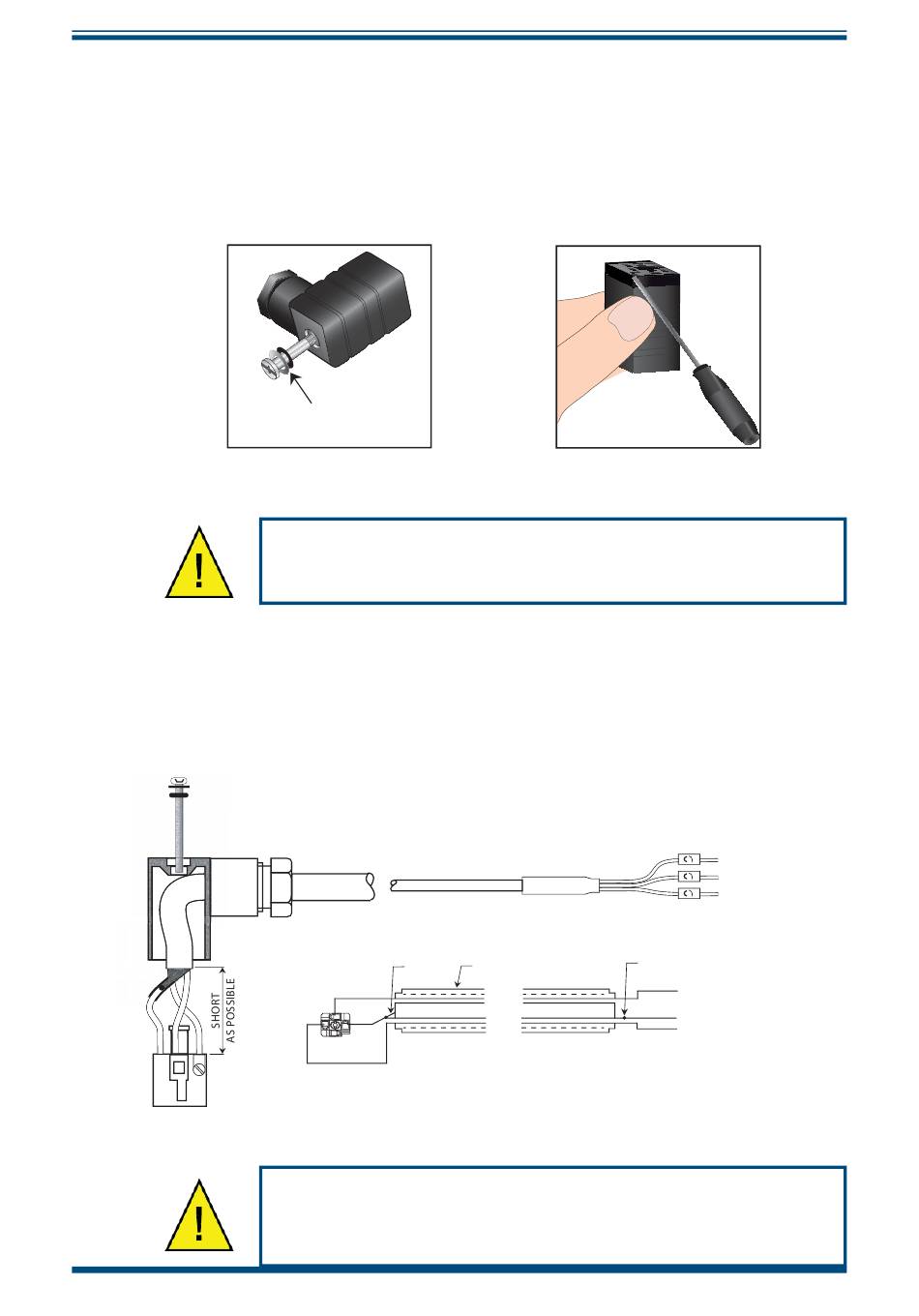

Preparation of the Transmitter cable

The transmitter cable is supplied as standard. A cable can be obtained by contacting
your local distributor or Michell Instruments (see www.michell.com for details).
Cable connection to the Easidew transmitter is made via the removable connector.
Removing the central screw enables the connector terminal block to be removed from
the outer housing by using a small screwdriver to prise it clear.
For the transmitter to work properly, and to achieve maximum performance, the
transmitter cable must be connected to the sensor connector as shown in the drawing
below:
Note: The drawing below shows the identity of the connector terminals and
wiring connections of the cable manufactured by Michell Instruments:
SCALE 2:1
16
O-ring
and washer
Connector Terminal Block Removal
Figure 13
Caution: When removing the central screw ensure that the
small sealing O-ring and the washer are retained on the screw
and are present during re-installation.
BRAID
GREEN
SIGNAL (SOURCE)
1
BLUE
3
GND
RED
2 4
+POWER
VIEW ON REAR
OF CONNECTOR
Figure 14
Always connect the 4-20 mA return signal to a suitable load
(see Figure 14) before the power is applied. Without this
connection, the transmitter may be damaged if allowed to
operate for prolonged periods.
Easidew Online User's Manual
BRAID
SCREEN
GREEN
YELLOW
BLUE
RED
Wiring Connections
97094 Issue 18.5, March 2016
GN
GREEN - 4-20 mA
RD
RED + POWER
BL
BLUE - SCREEN
GREEN - 4-20 mA
(SOURCE)
BLUE - SCREEN
RED + POWER
