12. FINISHING THE INSTALLATION

1. Secure all wire connections with supplied wire ties to assist in
canopy installation.
2. Tuck connections neatly into ceiling outlet box.
3. Slide the canopy up to the hanger bracket and place the key hole
on the canopy over the screw on the hanger bracket. Turn canopy
until it locks in place at the narrow section of the key holes
(Fig. 18).
4. Align the circular hole on canopy with the remaining hole on the
hanger bracket. Secure by tightening the one screw previously
loosened and the one screw previously removed.
5. Lock the canopy ring onto the screws in step 4. Adjust the screws
as necessary until the canopy and canopy ring is snug (Fig. 18).
WARNING: Make sure the tab at the bottom of the mounting bracket
is properly seated in groove of the hanger ball before attaching canopy
to the bracket. Failure to properly seat tab in groove could cause dam-
age to electrical wiring.
FR - W 1 8 10
Canopy
Canopy ring

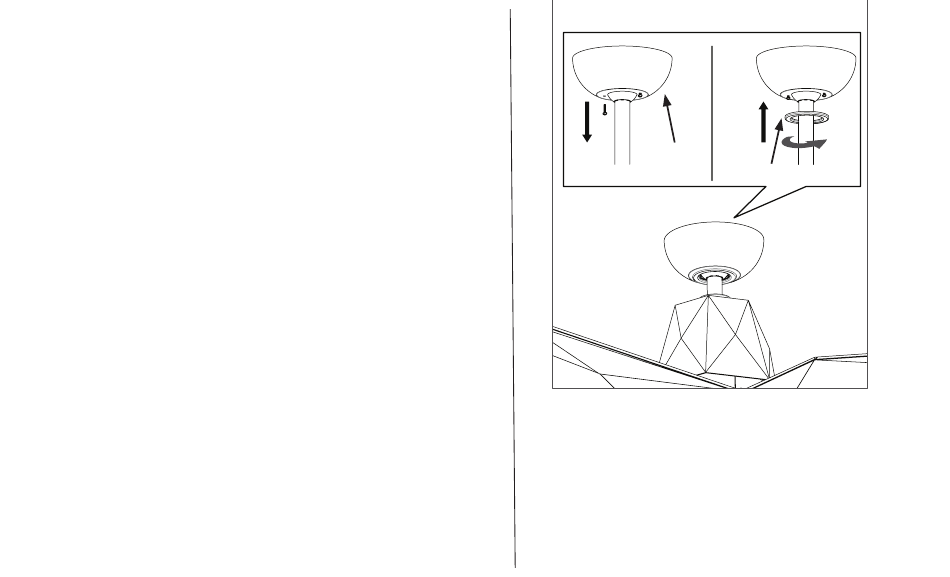

FIGURE 18
