10. MAKING THE ELECTRIC CONNECTIONS
(cont.)
Motor to receiver electrical connections: (Fig. 15)
1.
Connect the hanger ball/downrod assembly ground wire, mount-
ing bracket ground wire and receiver ground wire to the ground
wire in outlet box.
WARNING: Failure to connect ground wires could result in poor
fan control functionality.
2.
Connect the red wire from the fan to the red wire marked "TO
MOTOR" from the receiver.
3.
Connect the gray wire from the fan to the gray wire marked "TO
MOTOR" from the receiver.
4.
Connect the yellow wire from the fan to the yellow wire marked
"TO MOTOR" from the receiver.
5.
Cap the white wire marked "for light" from the receiver with a
blue wire nut,
6.
Cap the blue wire marked "for light" from the receiver with a blue
wire nut.
Receiver to house supply wires electrical connections: (Fig. 15)
1.
Connect the black (hot) wire from the ceiling to the black wire marked
"AC in L" from the receiver.
2.
Connect the white (neutral) from the ceiling to the white wire marked
"AC in N" from the receiver.
FR -W 1 8 1 0
Outlet box
Black (hot)
Black ("AC IN L")
Receiver
Red (to motor)
Gray (to motor)
Yellow (to motor)
Yellow (motor)
Gray (motor)
Red (motor)

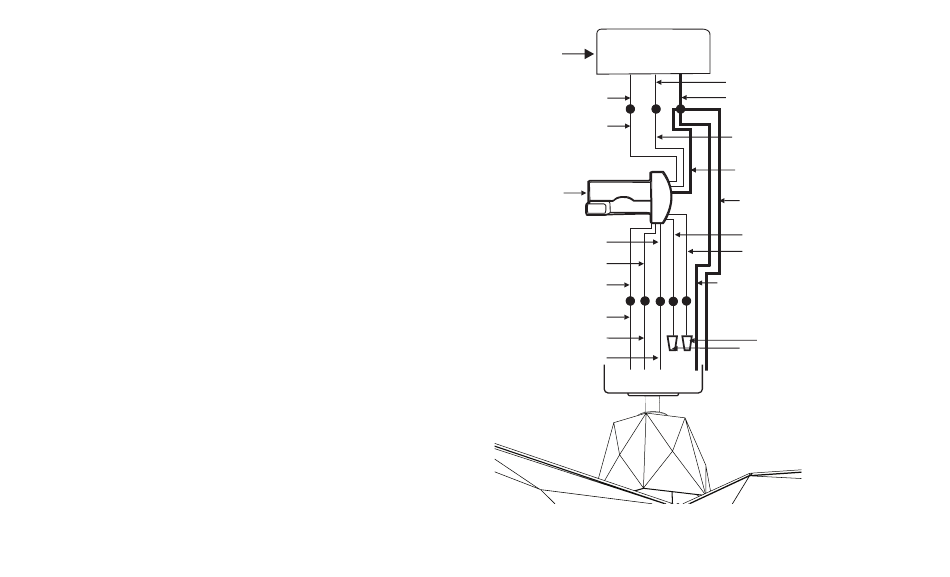

FIGURE 15
White (neutral)
Green (Ground)
White ("AC IN N")
Green (Ground)
Green (Ground)
White (for light)
Blue (for light)
Green (Ground)
Wire Nuts (blue and white
wire)
14
