9. HANGING THE FAN

1. Remove the clevis pin and cotter pin and loosen the two collar
screws from the motor collar (Fig.11).
2. Feed motor wires through coupling cover, canopy ring, and
canopy
3. Feed motor wires through downrod assembly.
4. Thread the downrod assembly onto motor collar. Align the holes
of down- rod and collar and insert the cotter pin and clevis pin.
Tighten the two collar screws (Fig. 11).
WARNING: Failure to properly install the cotter pin and/or tighten the
screws could result in the fan loosening and possibly falling.
F R- W1 8 1 0
8
Canopy
Canopy Ring
Coupling Cover
Clevis pin
Downrod Assembly
Cotter pin

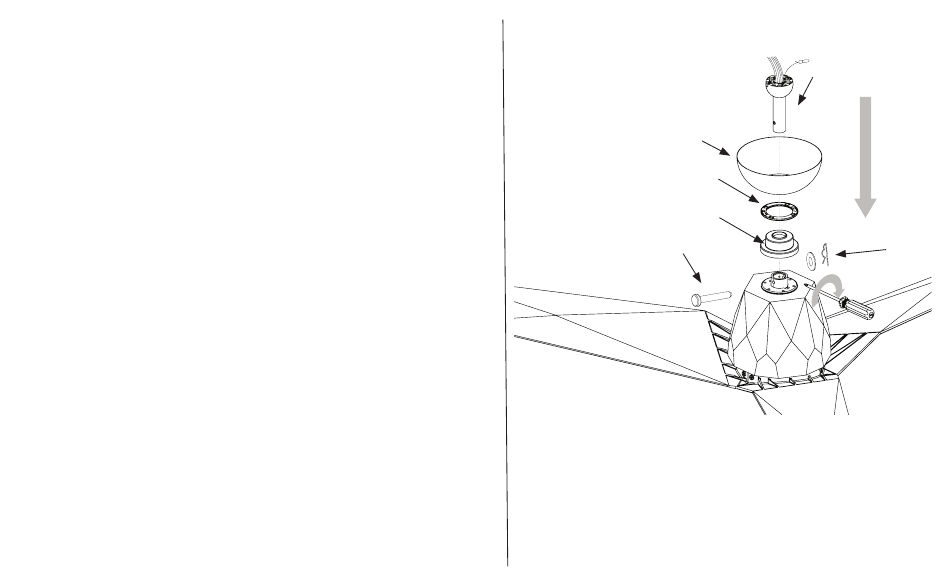

FIGURE 11
