11. INSTALLING THE WALL CONTROL (cont.)
1. Carefully tuck the wire connections inside the junction box.
Secure the wall control with the two wall control mounting screws
provided. (Fig. 15)
2. Attach the wall mounting plate over the wall control and secure
with the two wall mounting plate screws provided.
3. Fasten the wall plate to the wall mounting plate.
NOTE: Maximum of 2 fans can operate on a circuit through the wall
control.
NOTE: A maximum of 12 fans can operate on a circuit through an on
off switch or breaker when utilizing the app for the fan control (with
out the wall control in the circuit).
FR -W 1 8 1 0
Wall transmitter
Wall outlet box
Mounting screws
Mounting screws

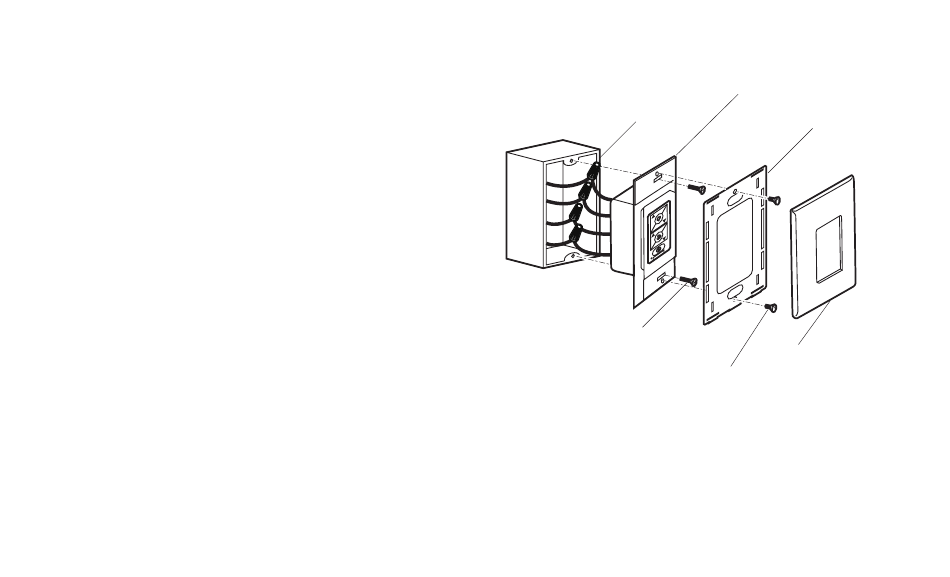

FIGURE 17
Wall mounting
plate
Wall plate
