11. INSTALLING THE WALL CONTROL

WARNING: Remember to shut the power off at the circuit breaker or fuse box.

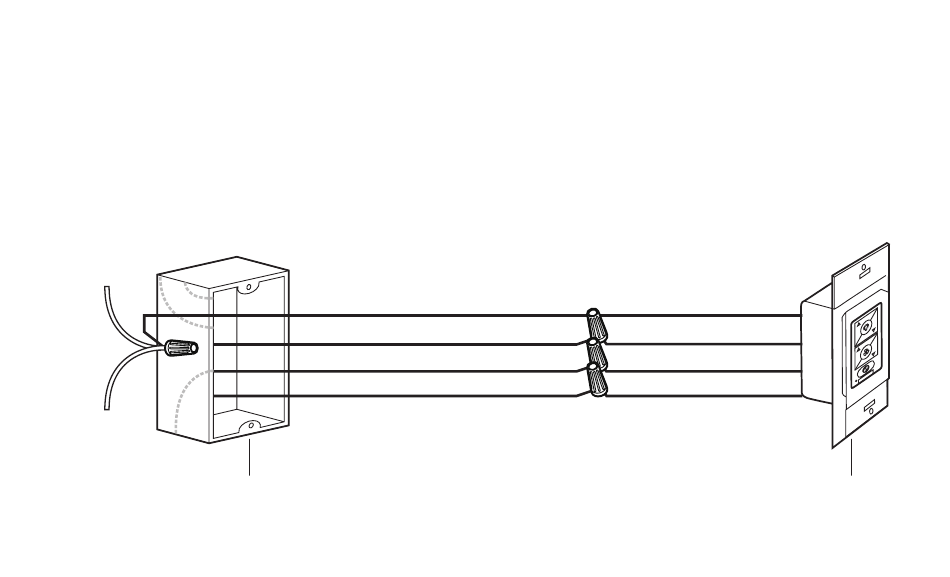

Wall control to wall outlet box electrical connections: (Fig. 14)
1. Connect ground wires - Important for proper control function.
2. Connect the black wire marked "LINE IN" from the control to the black LINE VOLTAGE wire from the outlet box that
feeds back to the breaker.
3. Connect the red wire from the control to the black wire from the wall outlet box that feeds up to the fan.
4. Connect the white wire from the control to the white (neutral) wire from the wall outlet box.
White
(Neutral)
Wall outlet box
FR - W 1 8 10
White
Black (to fan)
Black (from Breaker)
Copper
Ground
White
Red
Black
Green (Ground)
FIGURE 16
Wall control
15
