9. HANGING THE FAN (cont.)

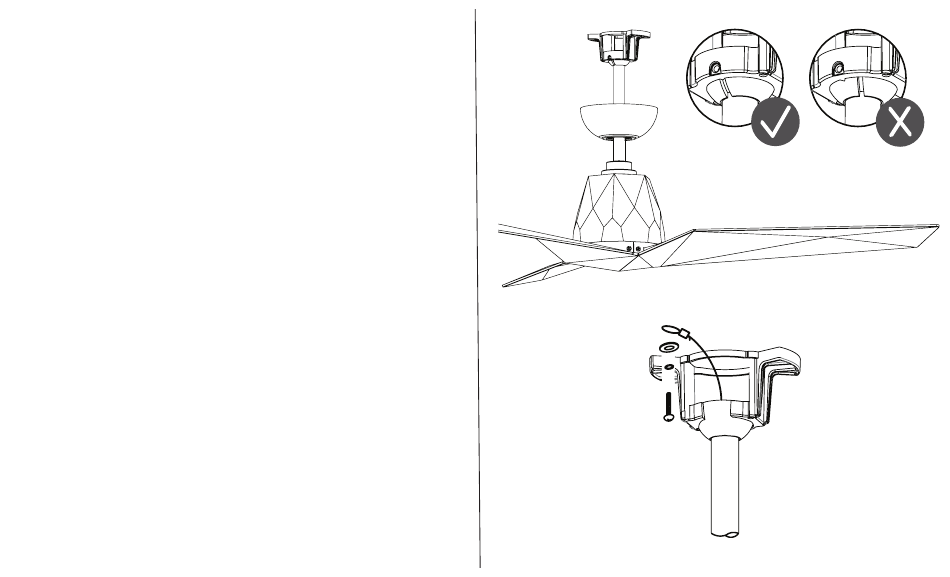

1. Carefully lift the fan motor assembly up to the mounting bracket
and seat the hanger ball in the mounting bracket socket. Make
sure the tab on the mounting bracket socket is properly seated
in the groove in the hanger ball. Rotate the socket assembly until
the ball drops and locks into the hanger bracket screw (Fig. 12).
2. Secure the safety cable to the building structure using a spring
washer, flat washer and wood screw provided (Fig. 13).
FR -W 1 8 1 0
FIGURE 12
FIGURE 13
