tM-P8
8-channel Isolated Digital Input Module
Quick Start Guide
Product Website:
https://www.icpdas-usa.com/tm_p8
http://www.icpdas-usa.com/dcon_utility_pro.html

1. Introduction

The tM-P8 offers 8 channels for digital input, each of which features
photocouple isolation. In addition input can be either sink- or source-type
using wire connections and all channels can be used as 16-bit counters. 4
kV ESD protection and 3750 VDC intra-module isolation are also provided.

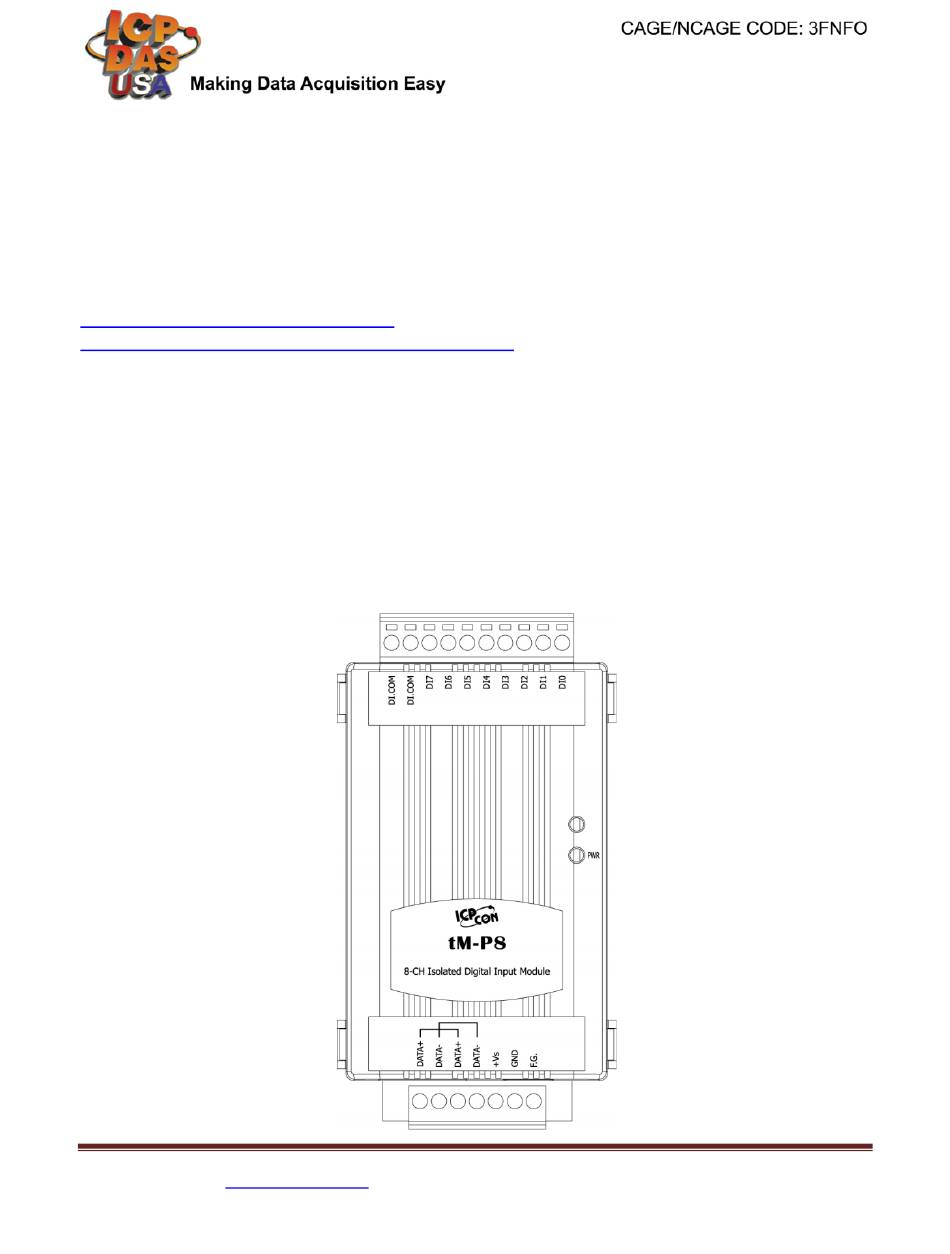

2. Terminal Assignment

tM-P8 8-channel Isolated Digital Input Module - QuickStart (Aug/2017)
ICP DAS USA, Inc. |
www.icpdas-usa.com
| 1-310-517-9888 | 24309 Narbonne Ave. Suite 200. Lomita, CA 90717
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the tM-P8 and is the answer not in the manual?

Questions and answers

Related Manuals for ICP DAS USA tM-P8

Summary of Contents for ICP DAS USA tM-P8

  • Page 1 1. Introduction The tM-P8 offers 8 channels for digital input, each of which features photocouple isolation. In addition input can be either sink- or source-type using wire connections and all channels can be used as 16-bit counters. 4 kV ESD protection and 3750 VDC intra-module isolation are also provided.
  • Page 2 24 AWG wire, e.g. Belden 9841. 4. Default Settings Default settings for the tM-P8 module are as follows: 。 Protocol: Modbus RTU 。 Module Address: 01 。 DIO Type: Type 40 。 Baud Rate: 9600 bps tM-P8 8-channel Isolated Digital Input Module - QuickStart (Aug/2017) ICP DAS USA, Inc.
  • Page 3 3. Connect the module to the power supply using the +Vs and GND terminals. Note that the voltage supplied should be in the range of +10 to +30V DC. tM-P8 8-channel Isolated Digital Input Module - QuickStart (Aug/2017) ICP DAS USA, Inc. | www.icpdas-usa.com...
  • Page 4 It can select multi-options such as Baud Rate, Protocol, Checksum, and Format to search module. The default settings for the module can be found in Section 3. Click OK after selecting the COM port setting. tM-P8 8-channel Isolated Digital Input Module - QuickStart (Aug/2017) ICP DAS USA, Inc. | www.icpdas-usa.com...
  • Page 5 DCON Utility Pro supports DCON and Modbus protocol for all ICPDAS and the others modules. 6. Configuration I/O module setting on PC tM-P8 8-channel Isolated Digital Input Module - QuickStart (Aug/2017) ICP DAS USA, Inc. | www.icpdas-usa.com | 1-310-517-9888 | 24309 Narbonne Ave. Suite 200. Lomita, CA 90717...
  • Page 6 If user doesn’t know command, user can select Address and ID, it will show some refer commands as below. User can select necessary command to test or debug modules. tM-P8 8-channel Isolated Digital Input Module - QuickStart (Aug/2017) ICP DAS USA, Inc. | www.icpdas-usa.com...
