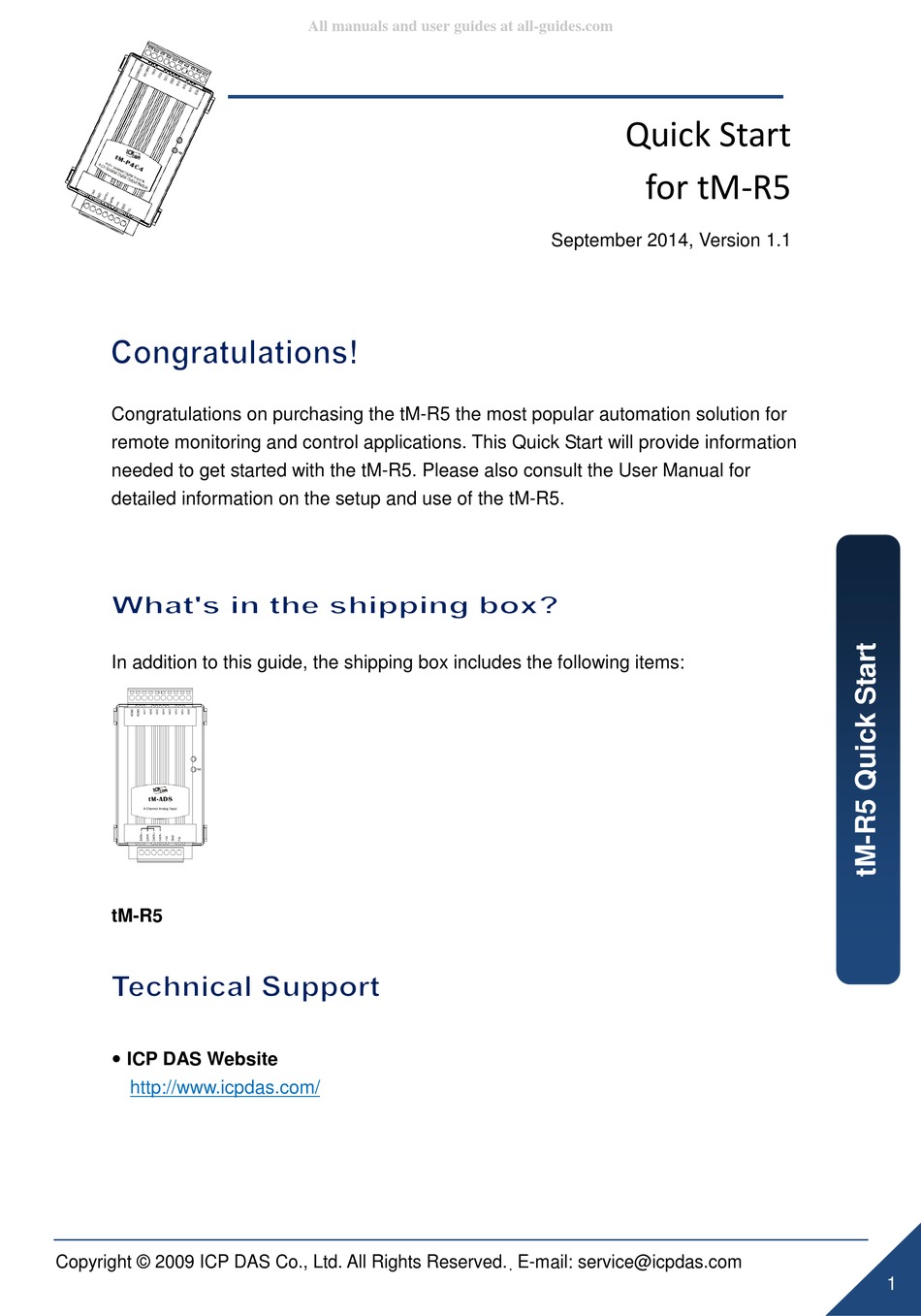

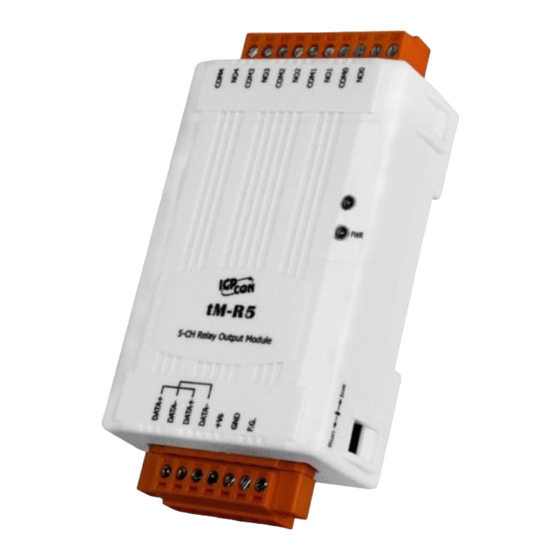

Quick Start
for tM-R5
September 2014, Version 1.1
Congratulations on purchasing the tM-R5 the most popular automation solution for
remote monitoring and control applications. This Quick Start will provide information
needed to get started with the tM-R5. Please also consult the User Manual for
detailed information on the setup and use of the tM-R5.
In addition to this guide, the shipping box includes the following items:
tM-R5
ICP DAS Website
http://www.icpdas.com/
Copyright © 2009 ICP DAS Co., Ltd. All Rights Reserved. E-mail: service@icpdas.com
1
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for ICP DAS USA tM-R5
Summary of Contents for ICP DAS USA tM-R5
- Page 1 Congratulations on purchasing the tM-R5 the most popular automation solution for remote monitoring and control applications. This Quick Start will provide information needed to get started with the tM-R5. Please also consult the User Manual for detailed information on the setup and use of the tM-R5.
- Page 2 All manuals and user guides at all-guides.com ---------------------------------------------------------------------------------- Understanding the Hardware Specifications and Wiring Diagrams Before installing the hardware, you should have a basic understanding of hardware specification and the wiring diagrams. System Specifications： Copyright © 2009 ICP DAS Co., Ltd. All Rights Reserved. E-mail: service@icpdas.com...
- Page 3 All manuals and user guides at all-guides.com I/O Specifications： Wire Connection： Copyright © 2009 ICP DAS Co., Ltd. All Rights Reserved. E-mail: service@icpdas.com...
- Page 4 All manuals and user guides at all-guides.com Pin Assignment： -------------------------------------------- Booting the tM-R5 in Init Mode Make sure the switch placed in the “Init” position. Copyright © 2009 ICP DAS Co., Ltd. All Rights Reserved. E-mail: service@icpdas.com...
- Page 5 All manuals and user guides at all-guides.com ---------------------------------------------------------------------------------- Connecting to the PC and the Power Supply The tM-Series series is equipped with an RS-485 port for connection to a 232/USB converter to PC Connect to the PC using an RS-485 Converter RS-232 Connect to PC Power Supply...
- Page 6 All manuals and user guides at all-guides.com --------------------------------------------------------------------------------- Installing the DCON Utility The DCON Utility is an easy-to-use tool designed to enable simple configuration of I/O modules that use the DCON protocol. Step 1: Locate the DCON Utility The DCON Utility can be obtained from the companion from the ICPDAS site:http://ftp.icpdas.com/pub/cd/8000cd/napdos/driver/dcon_utility/ Step 2: Follow the prompts to complete the installation After the installation has...
- Page 7 All manuals and user guides at all-guides.com Step 1: Run the DCON Utility Double-click the DCON Utility shortcut on your desktop. Step 2: Use the COM1 port to communicate with the tM-Series Click the “COM Port” option from the menu and a dialog box will be displayed that will allow you to set the communication parameters as described in the table below.
- Page 8 All manuals and user guides at all-guides.com Step 3: Search for the tM-Series module Click “Start Search” button from the toolbox to search for the tM-Series module. After the tM-Series module is displayed in the list, click “Stop Search” button. Start Search Stop Search Step 4: Connect to the tM-Series...
- Page 9 All manuals and user guides at all-guides.com Step 5: Initialize the tM-Series module Set the “Address” field in the dialog box to 1 and then click “Setting” button to save the settings. ---------------------------------------------------------------------------------- Rebooting the tM-Series Module in RUN Mode Make sure the INIT switch is placed in the“RUN”...
- Page 10 All manuals and user guides at all-guides.com --------------------------------------------------------------------------------- Modbus Address Mapping Address Description Attribute 40481 Firmware version (low word) 40482 Firmware version (high word) 40483 Module name (low word) 40484 Module name (high word) 40485 Module address, valid range: 1 ~ 247 40486 Bits 5:0 Baud rate, valid range: 3 ~ 10...
