What's in the box?
The package includes the following items:

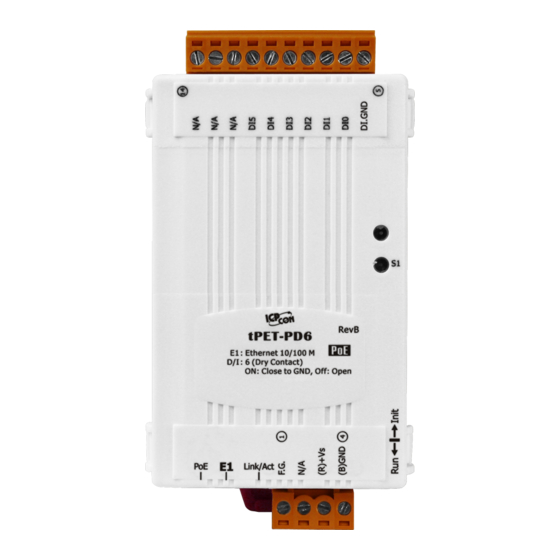

tET/tPET-P(D)6 Module x 1
Related Information
tET-P6/tPET-P6/tET-PD6/tPET-PD6 Series Product Page:
Documentation & Firmware:
NS-205/NS-205PSE/DP-665 Product Page (optional):
Technical support:
tET-P(D)6/tPET-P(D)6
service@icpdas.com
Quick Start
Quick Start x1 (This Document)
v1.2, Feb. 2018
P1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for ICP DAS USA tET-P6
Summary of Contents for ICP DAS USA tET-P6

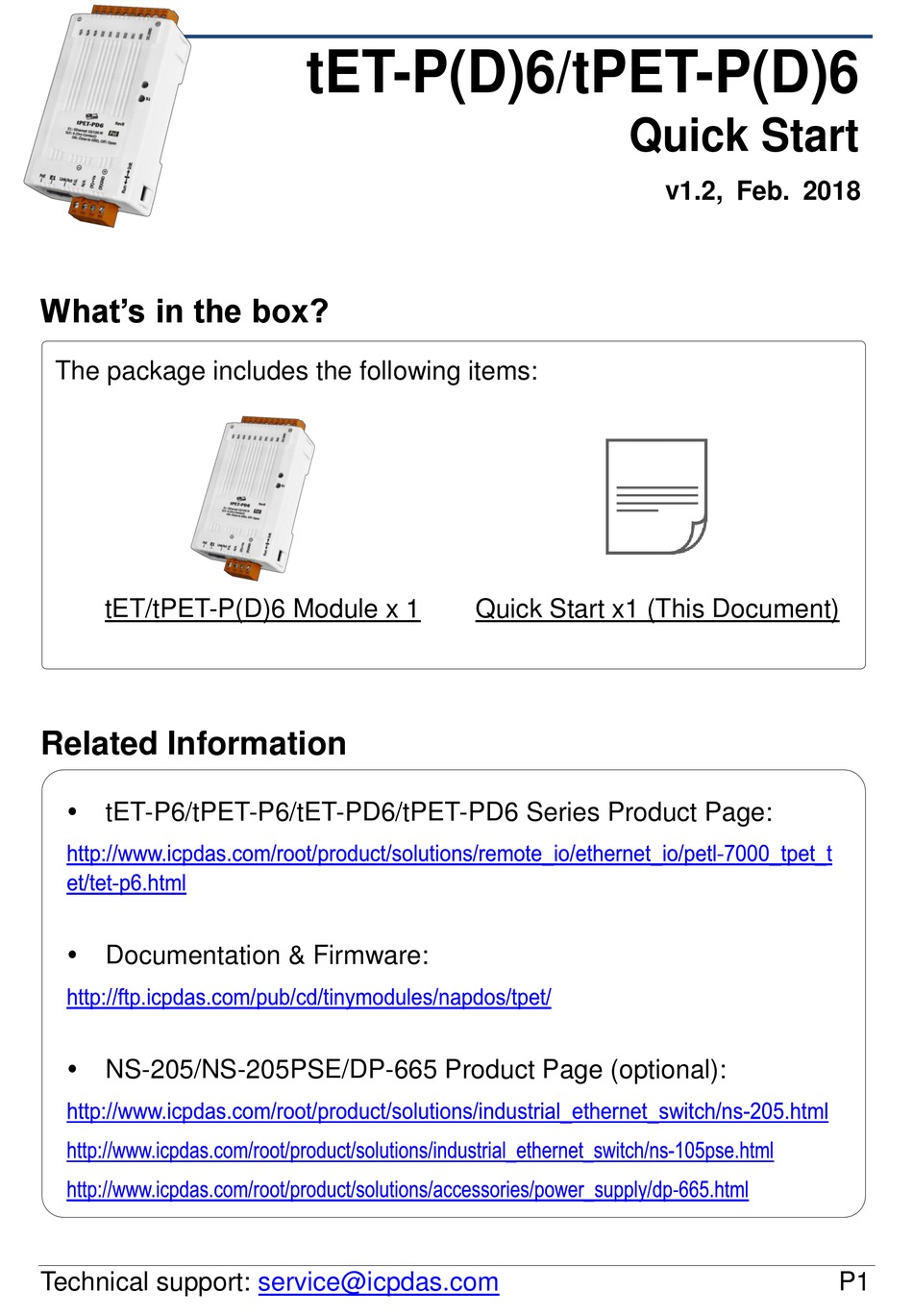

- Page 1 Feb. 2018 What’s in the box? The package includes the following items: tET/tPET-P(D)6 Module x 1 Quick Start x1 (This Document) Related Information tET-P6/tPET-P6/tET-PD6/tPET-PD6 Series Product Page: Documentation & Firmware: NS-205/NS-205PSE/DP-665 Product Page (optional): Technical support: service@icpdas.com...
- Page 2 Connecting the Power and Host PC Make sure your PC has workable network settings. Disable or well configure your Windows firewall and Anti-Virus firewall first, else the “Search Servers” on Chapter 5 may not work. (Please contact with your system Administrator) Connect both the tET/tPET-P(D)6 and your PC to the same sub network or the same Ethernet switch.
- Page 3 Pin Assignments & Wiring Note Pin Assignments: Digital Input Wiring of the tET/tPET-P6: Digital Input Readback as 1 Readback as 0 +10 ~ +50 V OPEN or <4 V Sink To other To other To other channels channels DI.COM channels DI.COM...
- Page 4 Wire the DI for Self-test tET/tPET-P6: 1) Supply the External Power +24V to DI0. (External +10V connect to Pin06 ) 2) Supply the External Power GND to DI.COM. (External GND connect to Pin05) tET/tPET-PD6: 1) Connect the DI0 and DI.COM. (Pin06 connect to Pin05) Technical support: service@icpdas.com...
- Page 5 Modbus Address (1xxxx) DI address: Begin Points Description Bits Range Access address Type Point 0:Off Digital Input (0x0) 1:On 0:no Digital latched status (high) (0x20) 1:latched 0:no Digital latched status (low) (0x40) 1:latched (0xxxx) DO address: Begin Points Description Bits Range Access...
- Page 6 Configuring Network Settings 1) Run the eSearch Utility. The eSearch Utility is located at: http://ftp.icpdas.com/pub/cd/tinymodules/napdos/software/esearch/ 2) Click the “Search Servers” to search your tET/tPET-P(D)6. 3) Double-click your tET/tPET-P(D)6 to configure the settings Factory Default Settings of tET/tPET-P(D)6: IP Address 192.168.255.1 Subnet Mask...
- Page 7 Testing your tET/tPET Module 1) Wait 2 seconds and click “Search Servers” button again to ensure the tET/tPET-P(D)6 is working well with new configuration. 2) Click the name of tET/tPET-P(D)6 to select it. 3) Click the “Web” button to log in to the web configuration pages. (Or enter the URL address of the tET/tPET-P(D)6 in the address bar of the browser.) ...
- Page 8 4) Enter the password in the “login password” field and click “Submit”. Use the default password: Admin 5) In the “Home” page, check that the “DI0” status should show current status is ON (Green). Technical support: service@icpdas.com...
