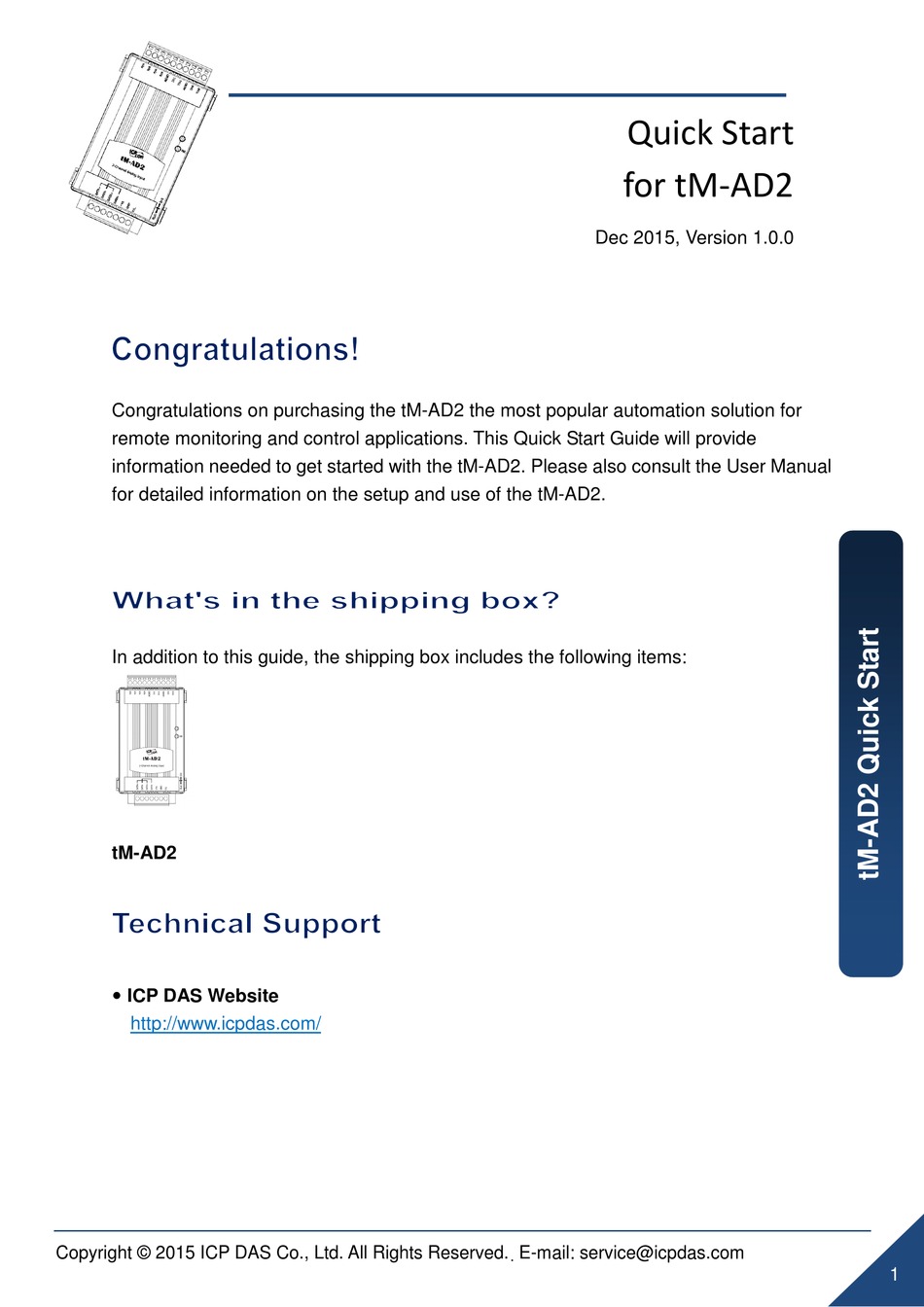

Quick Start
for tM-AD2
Dec 2015, Version 1.0.0
Congratulations on purchasing the tM-AD2 the most popular automation solution for
remote monitoring and control applications. This Quick Start Guide will provide
information needed to get started with the tM-AD2. Please also consult the User Manual
for detailed information on the setup and use of the tM-AD2.
In addition to this guide, the shipping box includes the following items:
tM-AD2
ICP DAS Website
http://www.icpdas.com/
1
Copyright © 2015 ICP DAS Co., Ltd. All Rights Reserved. E-mail: service@icpdas.com
1
Advertisement
Related Manuals for ICP DAS USA tM-AD2
Summary of Contents for ICP DAS USA tM-AD2
- Page 1 Congratulations on purchasing the tM-AD2 the most popular automation solution for remote monitoring and control applications. This Quick Start Guide will provide information needed to get started with the tM-AD2. Please also consult the User Manual for detailed information on the setup and use of the tM-AD2.
- Page 2 ---------------------------------------------------------------------------------- Understanding the Hardware Specifications and Wiring Diagrams Before installing the hardware, you should have a basic understanding of hardware specification and the wiring diagrams. System Specifications： Copyright © 2015 ICP DAS Co., Ltd. All Rights Reserved. E-mail: service@icpdas.com...
- Page 3 I/O Specifications： Wire Connection： Pin Assignment： Copyright © 2015 ICP DAS Co., Ltd. All Rights Reserved. E-mail: service@icpdas.com...
- Page 4 -------------------------------------------- Booting the tM-Series in Init Mode Make sure the switch placed in the “Init” position. ---------------------------------------------------------------------------------- Connecting to the PC and the Power Supply The tM-Series series is equipped with an RS-485 port for connection to a 232/USB converter to PC Connect to the PC using an RS-485 Converter RS-232...
- Page 5 --------------------------------------------------------------------------------- Installing the DCON Utility The DCON Utility is an easy-to-use tool designed to enable simple configuration of I/O modules that use the DCON protocol. Step 1: Locate the DCON Utility The DCON Utility can be obtained from the companion CD or from the ICPDAS FTP site: ftp://ftp.icpdas.com/pub/cd/8000cd/napdos/driver/dcon_utility/ CD:\Napdos\Driver\DCON_Utility...
- Page 6 Communication Factory parameter default Value Address 9600 Baud Rate Protocol DCON Checksum Disabled N,8,1 Parity tM-Series Step 3: Search for the module Click “Start Search” button from the toolbox to search for the tM-Series module. After the tM-Series module is displayed in the list, click “Stop Search” button. Start Search Stop Search Copyright ©...
- Page 7 Step 4: Connect to the tM-Series After clicking on the name of the module in the list, a dialog box will be displayed. Step 5: Initialize the tM-Series module Set the “Address” field in the dialog box to 1 and then click “Setting Module Configurations ”...
-
Page 8: Modbus Address Mapping
the configuration dialog box. --------------------------------------------------------------------------------- Modbus Address Mapping Address Description Attribute 30001 ~ 30002 Analog input value of channel 0 to 1 40001 ~ 40002 40257 ~ 40258 Analog input type code of channel 0 to 1 40481 Firmware version (low word) 40482 Firmware version (high word) 40483...
