PETL/ tET/ tPET DI O Series
User Manual
Ethernet I/O Modules
W
ARRANTY
All products manufactured by ICP DAS are warranted
against defective materials for a period of one year from
the date of delivery to the original purchaser.
W
ARNING
ICP DAS assumes no liability for damages consequent to
the use of this product. ICP DAS reserves the right to
change this manual at any time without notice. The
information furnished by ICP DAS is believed to be
accurate and reliable. However, no responsibility is
assumed by ICP DAS for its use, nor for any infringements
of patents or other rights of third parties resulting from
its use.
C
OPYRIGHT
Copyright © 2013 by ICP DAS. All rights are reserved.
T
RADEMARK
Names are used for identification only and may be
registered trademarks of their respective companies.
C
U
ONTACT
S
If you have any questions, please feel free to contact us
via email at:
service@icpdas.com, service.icpdas@gmail.com
+7(495)109-02-08 sales@bbrc.ru www.bbrc.ru
Ver. 2.1, Sep. 2014
S
UPPORT
This manual relates to the following modules:
PETL-7060

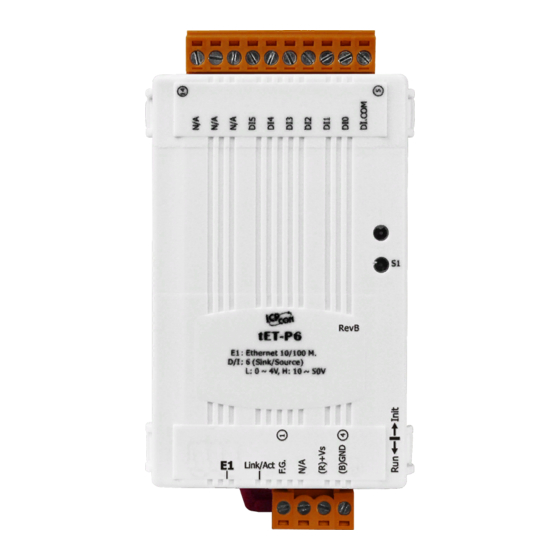

tET-P6, tPET-P6
tET-PD6, tPET-PD6
tET-C4, tPET-C4
tET-A4, tPET-A4
tET-P2C2, tPET-P2C2
tET-P2A2, tPET-P2A2
tET-P2POR2, tPET-P2POR2,
tET-PD2POR2, tPET-PD2POR2
tET-P2R2, tPET-P2R2
tET-PD2R1, tPET-PD2R1
