ICP DAS USA tM-AD8 Quick Start Manual

8-channel isolated analog voltage input module
Hide thumbs
1
2
3
4
5
6

Advertisement

Quick Links

Download this manual
8-channel Isolated Analog Voltage Input
Product Website:
http://www.icpdas-usa.com/tm_ad8.html
http://www.icpdas-usa.com/dcon_utility_pro.html
1. Introduction
The tM-AD8 is an analog input module that includes 8 single-ended analog input
channels and provides a programmable input range on all analog inputs (0 ~ 500 mV, 0
~ 1 V, 0 ~ 2.5 V, 0 ~ 5 V, 0 ~ 10 V). It provides a high overvoltage protection of 120
VDC. The sampling rate of the tM-AD8 is adjustable and is available in either fast or
normal mode and It also provides 4 KV ESD protection as well as 2500 Vrms intra-
module isolation.

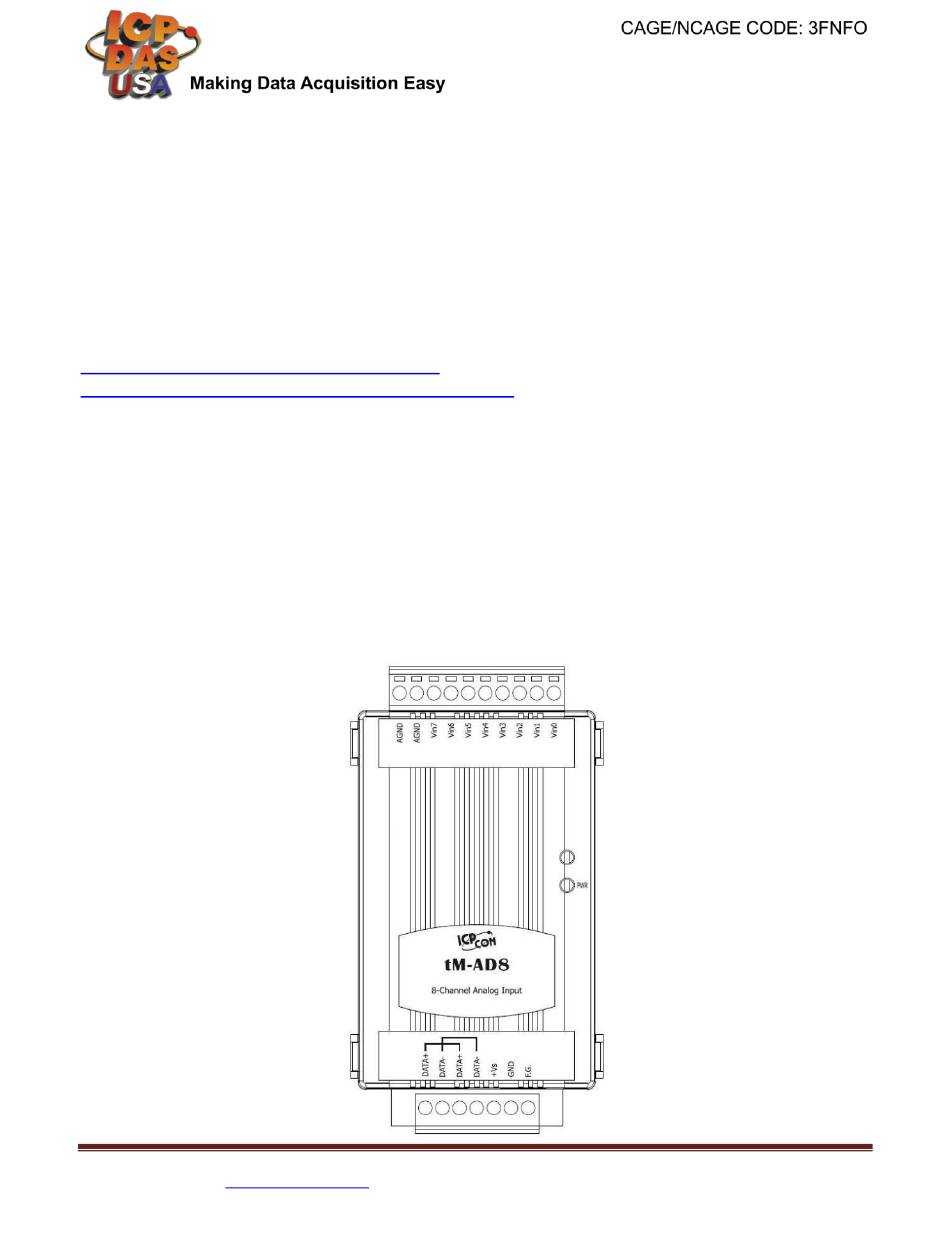

2. Terminal Assignment
tM-AD8 8-channel Isolated Analog Voltage Input Module - QuickStart (Jun/2016)
ICP DAS USA, Inc. |
www.icpdas-usa.com
tM-AD8
Module
Quick Start Guide
| 1-310-517-9888 | 24309 Narbonne Ave. Suite 200. Lomita, CA 90717
1

Advertisement

loading

Related Manuals for ICP DAS USA tM-AD8

Summary of Contents for ICP DAS USA tM-AD8

  • Page 1 ~ 1 V, 0 ~ 2.5 V, 0 ~ 5 V, 0 ~ 10 V). It provides a high overvoltage protection of 120 VDC. The sampling rate of the tM-AD8 is adjustable and is available in either fast or normal mode and It also provides 4 KV ESD protection as well as 2500 Vrms intra- module isolation.

  • Page 2: Block/ Wiring Diagram

    。 Module Address: 01 。 Analog Input Type: type code 08, -10V to 10V 。 Baud Rate: 9600 bps tM-AD8 8-channel Isolated Analog Voltage Input Module - QuickStart (Jun/2016) ICP DAS USA, Inc. | www.icpdas-usa.com | 1-310-517-9888 | 24309 Narbonne Ave. Suite 200. Lomita, CA 90717...
  • Page 3 3. Connect the module to the power supply using the +Vs and GND terminals. Note that the voltage supplied should be in the range of +10 to +30V DC. tM-AD8 8-channel Isolated Analog Voltage Input Module - QuickStart (Jun/2016) ICP DAS USA, Inc. | www.icpdas-usa.com...
  • Page 4 It can select multi-options such as Baud Rate, Protocol, Checksum, and Format to search module. The default settings for the module can be found in Section 3. Click OK after selecting the COM port setting. tM-AD8 8-channel Isolated Analog Voltage Input Module - QuickStart (Jun/2016) ICP DAS USA, Inc. | www.icpdas-usa.com...
  • Page 5 DCON Utility Pro supports DCON and Modbus protocol for all ICPDAS and the others modules. 6. Configuration I/O module setting on PC tM-AD8 8-channel Isolated Analog Voltage Input Module - QuickStart (Jun/2016) ICP DAS USA, Inc. | www.icpdas-usa.com...
  • Page 6 If user doesn’t know command, user can select Address and ID, it will show some refer commands as below. User can select necessary command to test or debug modules. tM-AD8 8-channel Isolated Analog Voltage Input Module - QuickStart (Jun/2016) ICP DAS USA, Inc. | www.icpdas-usa.com...
