I-7017(F)C, M-7017C Quick Start Guide
Warranty
All products manufactured by ICP DAS are under warranty regarding defective materials for a period of one year from the date
of delivery to the original purchaser.
Warning
ICP DAS assumes no liability for damages resulting from the use of this product. ICP DAS reserves the right to change this
manual at any time without notification. The information furnished by ICP DAS is believed to be accurate and reliable.
However, no responsibility is assumed by ICP DAS for its use, or for any infringements of patents or other rights of third
parties resulting from its use.
Packing List

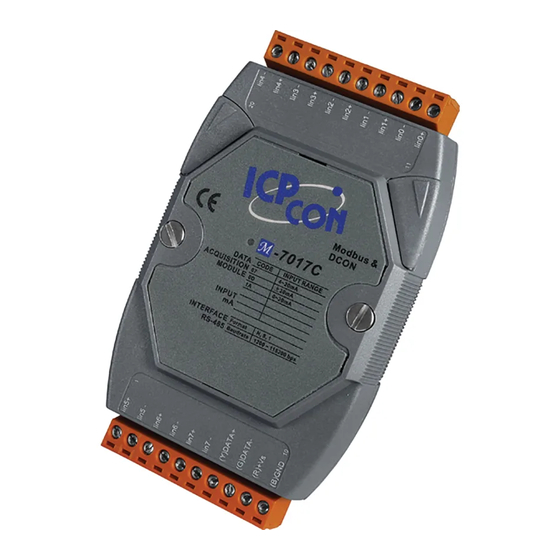

I-7017(F)C or M-7017C
Internal I/O Structure
Wire Connections
Plastic Rail
CD
Pin Assignments
Quick Start Guide
Page 1
Advertisement
Related Manuals for ICP DAS USA I-7017(F)C
Summary of Contents for ICP DAS USA I-7017(F)C
- Page 1 I-7017(F)C, M-7017C Quick Start Guide Warranty All products manufactured by ICP DAS are under warranty regarding defective materials for a period of one year from the date of delivery to the original purchaser. Warning ICP DAS assumes no liability for damages resulting from the use of this product. ICP DAS reserves the right to change this manual at any time without notification.
- Page 2 Modbus Table (M-7017C only) Address Description Address Description 10129 ~ Over/under range status of channel 0 40487 Type code 10136 to 7 for 4 ~ 20mA or 0 ~ 20mA ranges 40488 Modbus response delay time in ms, 00129 ~ valid range: 0 ~ 30 00136 40489...
- Page 3 Module test and configuration Step 1: INIT switch Operation Step 2: Install & Run DCON Utility 1. Please Install DCON Utility first You can find the software in the CD. CD path: <Driver>:\napdos\driver\dcon_utility\ Web link: http://ftp.icpdas.com/pub/cd/8000cd/napdos/driver/dcon_utility/ 2. Run DCON utility 1.
- Page 4 ICP DAS provide DCON Utility to configure I-7000 and M-7000 modules. Please download the last version from: http://ftp.icpdas.com/pub/cd/8000cd/napdos/driver/dcon_utility/ Q3. I-7017(F)C & M-7017C are the current input modules. Do they need external resistors for the measurement? No, please refer internal I/O structure.
