CHECKLIST

IMPORTANT: With the pump
removed from its packaging
check for any damage prior to
installation. If any damage is found
contact Stuart Turner Ltd within 24
hours of receipt.
28 mm copper
inlet pipework
(suction).

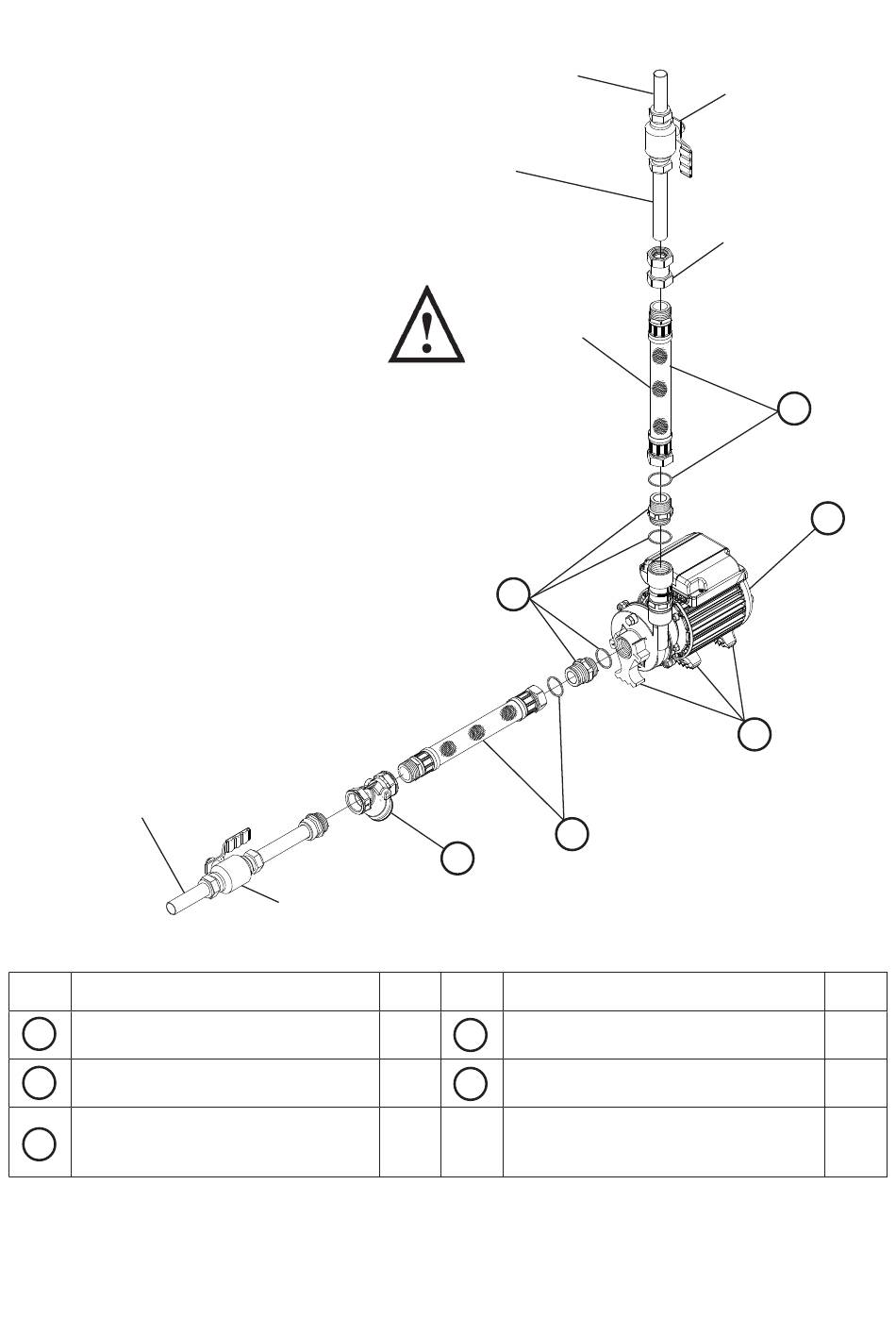

Fig. 1
Item Description
A
Pump
B
Hose & sealing washer
Inlet/outlet connectors &
C
gaskets
Your product may vary slightly from the picture above.
28 mm copper outlet pipework (discharge).
Short 28 mm copper pipe
tails to connect between
isolating valve and flexible
pipes.
suitable for connection to a G 1
(1 " BSP) adaptor or fitting.
28 mm isolating valve
(non restrictive) and
fittings (not supplied)
must be fitted to allow
easy pump service.
Qty Item Description
1
2
2
- 3 -
28 mm flexible
pipes. These
hoses are fitted
with G 1 female
connector
C
B
E
D
Anti-vibration feet
E
Inline strainer
28 mm isolating valve
(non restrictive) and
fittings (not supplied)
to allow easy pump
service.
28 mm - G 1 connector
(not supplied) must
be fitted
B
A
D
Qty
3
1
