2 LOCATION - HOT WATER INSTALLATION
2.26 Hot water supply: The pump must be supplied with a dedicated feed direct
from the hot water cylinder or storage tank which should be via a secondary
dedicated tapping (see Fig. 5).
Do not connect to the mains.

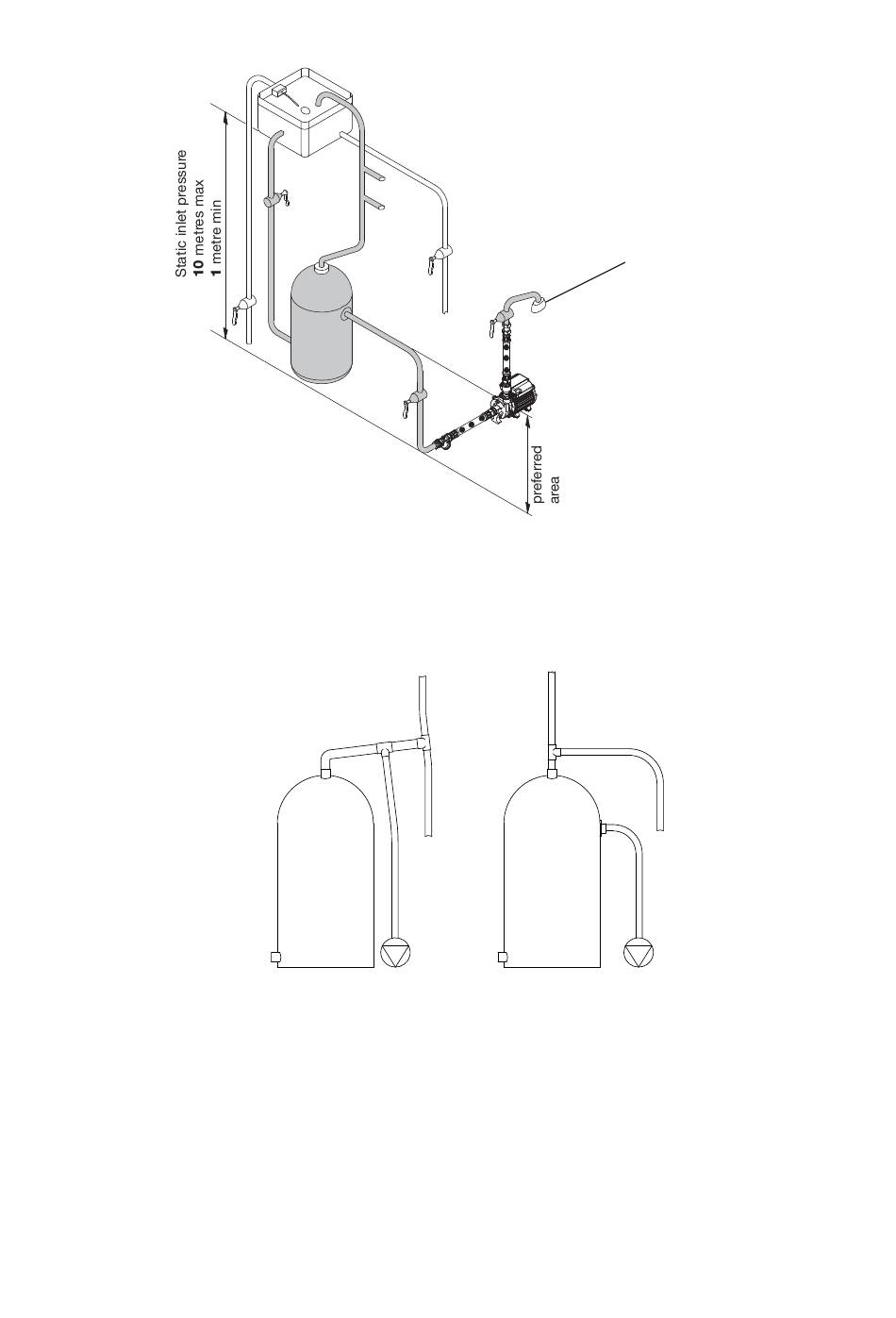

Fig. 5
Fig. 4
Off expansion
pipe with rising
28 mm offset
reducing to
28 mm pipework
to pump and
expansion pipe.
Factory installed
secondary tapping with
28 mm pipework to
pump.
- 7 -
Outlet head must be
below bottom of cold
water tank and able
to pass a minimum of
1 l/min of gravity flow
Cont ...
