Interlogix True Vision TVP-5104 Installation Manual page 15

BLACK/WHITE,
BROWN/WHITE)
Note: Hi-PoE (Max. 60 W) or 24 VAC is required to power the
PTZ.

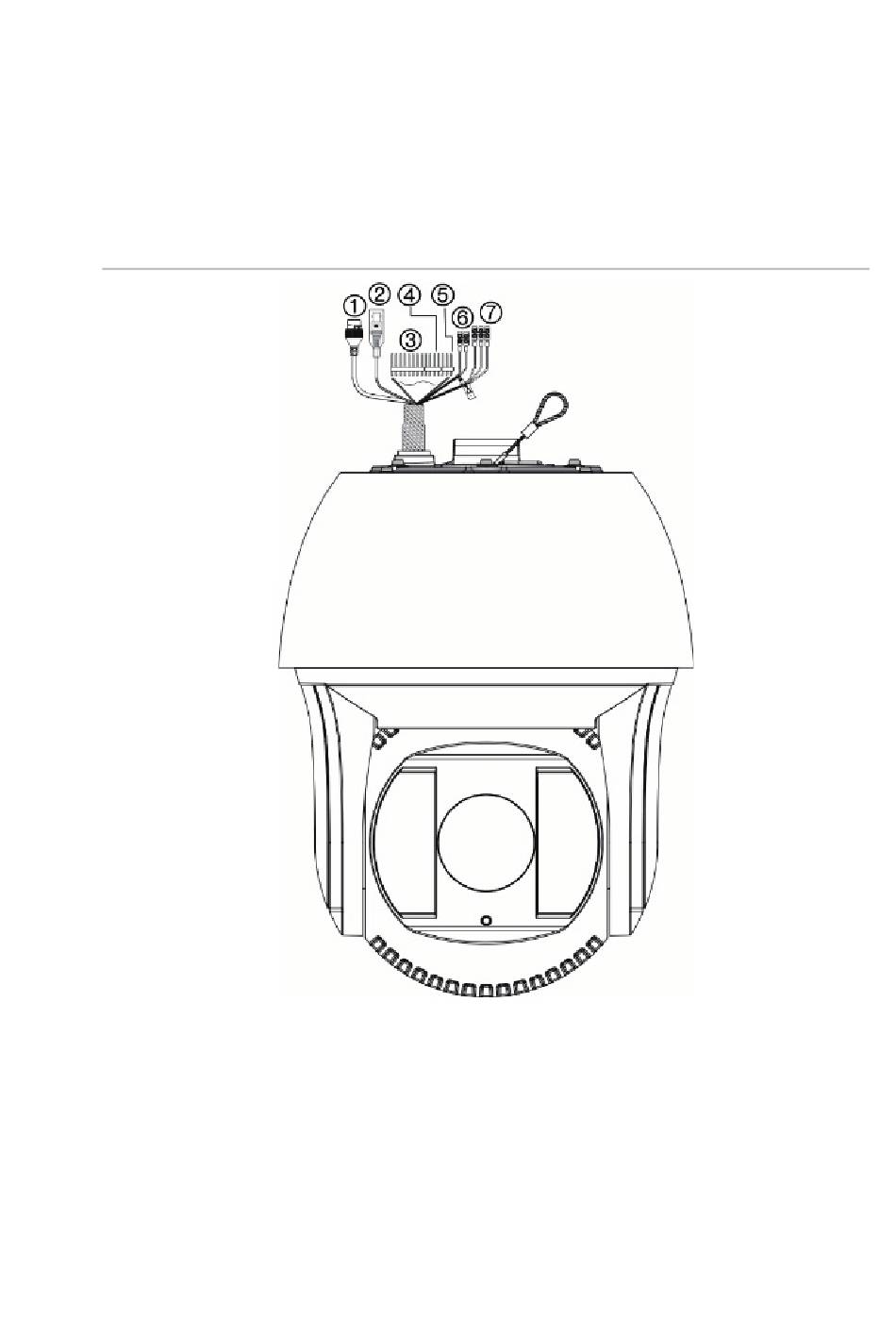

Figure 2: IR PTZ camera
1. Ethernet RJ45
connector
2. 960H analog output
3. 7 alarm inputs
Installation Guide
4. 2 alarm outputs
(WHITE_RED,
WHITE_PURPLE)
5. Audio in (PURPLE)/out
port (PINK)
9
