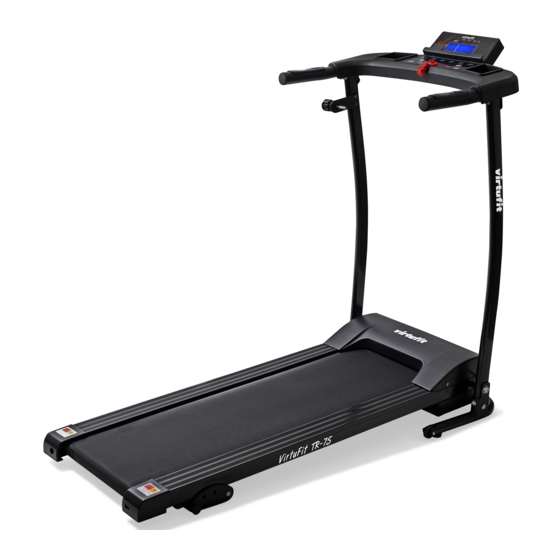

- Page 1 TR-75 Treadmill User manual VirtuFit TR-75 Treadmill...
-
Page 2: Table Of Contents
INDEX Safety instructions Checklist Assembly instructions Folding instructions Maintenance treadmill 10-12 Control panel Exploded drawing Parts list 15-16 Training instructions VirtuFit TR-75 Treadmill... -
Page 3: Safety Instructions
– Treadmill is indoor-using equipment, not outdoor-using for avoiding damage. Keep the store-place clean and flat, drying. Prohibiting the other purpose using, only for workout. – Please purchase the power-line to the distributor or contact with our company directly, for the powerline only equip to the treadmill. VirtuFit TR-75 Treadmill... -
Page 4: Safety Instructions
– This Treadmill only for home-using, the max user weight is 100 KGS. – Please keep the space at least 1 X 2 meter at the end of base frame to escape any accidents! VirtuFit TR-75 Treadmill... -
Page 5: Checklist
When you open the carton, and you will find the below parts in the carton: Parts list: Serial no. Description Spec. Stretch knob M16*55 Sil. oil Flat washer Ø8 Spring washer Ø8 Screw M8*15 Knob M12*20 L shape wrench Safety key Notice: Do not get through power before complete assembly. VirtuFit TR-75 Treadmill... -
Page 6: Assembly Instructions
In this way you prevent the head of the socket head screw from being rotated. STEP 1 Remove 4 screws and 4 corrugated rings from the lower part of the bag and attach the left and right uprights to the base frame. VirtuFit TR-75 Treadmill... - Page 7 ASSEMBLY INSTRUCTIONS STEP 2 Fasten the panel with the uprights by M8 screws and M8 washers. Pay attention and do not press the cables in the uprights during assembly; Secure the pull knob to the left upright. VirtuFit TR-75 Treadmill...
-
Page 8: Assembly Instructions
ASSEMBLY INSTRUCTIONS STEP 3 Use the security button to attach the base support to the base frame and place then the safety key in the yellow area on the panel; The device is now fully assembled. VirtuFit TR-75 Treadmill... -
Page 9: Folding Instructions
Then fold up the machine and fix by stretch knob (Part serial No. is 1. Please take off the two pins on incline blocks while folding). To spread the machine, just pull the stretch knob, put down the machine, then fix the knob and pins. VirtuFit TR-75 Treadmill... -
Page 10: Maintenance Treadmill
3. Use a dry cloth to clean the control panel and areas around the power switch. Use a soft clean cloth and cleanser to remove stubborn stains and dirt off the running belt. 4. Tighten the running belt once a month. 5. Keep your treadmill in a safe dry place away from heat and water. VirtuFit TR-75 Treadmill... - Page 11 There are incline blocks on both sides of the machine. It has 3-lev- el inclination. Please use the pins to adjust the incline level. Please note the pins must in the same position for both sides while adjusting the lever. VirtuFit TR-75 Treadmill...
-
Page 12: Maintenance Treadmill
There are incline blocks on both sides of the machine. It had 3-level inclination. Please use the pins to adjust the incline level. Please note the pins must in the same position for both sides while adjusting the lever VirtuFit TR-75 Treadmill... -
Page 13: Control Panel
Touch the heart sensors, the screen will show heart rate frequency; Left handrail has “start/stop” keys. The right handrail has speed shortcut keys + & - to adjust speed; Press “STOP” key to stop the machine after using. VirtuFit TR-75 Treadmill... -
Page 14: Exploded Drawing
EXPLODED DRAWING VirtuFit TR-75 Treadmill... -
Page 15: Parts List
Wheel Self lock bolt Strap Motor Front roll Bolt Foot pad Back roll Cross screws with pad ST4.2*16 Left end cap Nylon Hex screws M6*55 Right end cap Nylon Running frame Q235 IC board Switch Running board VirtuFit TR-75 Treadmill... -
Page 16: Parts List
PARTS LIST Description SPEC Hex screws M8*25 Running belt Side rail Motor up cover Handle cover foam Semi tube plug Right handle Q235 Power cord Hex screws M6*25 Safety key VirtuFit TR-75 Treadmill... -
Page 17: Training Instructions
The purpose of cooling down is to return the body to its normal or near normal, resting state at the end of each exercise session. A proper cool-down slowly lowers your heart rate and allows blood to return to the heart. VirtuFit TR-75 Treadmill... - Page 18 For questions or missing parts please contact your dealer.
