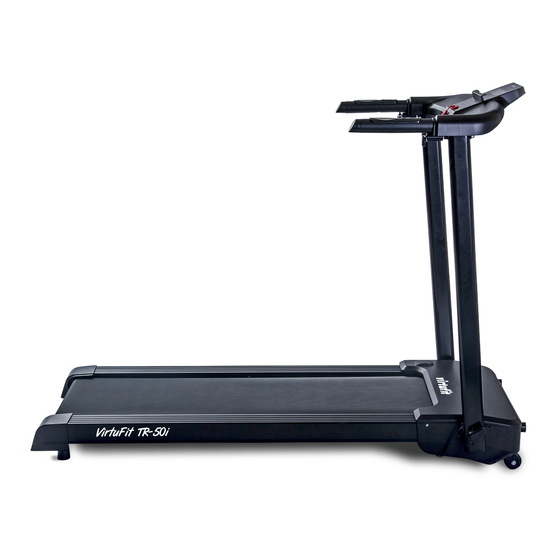

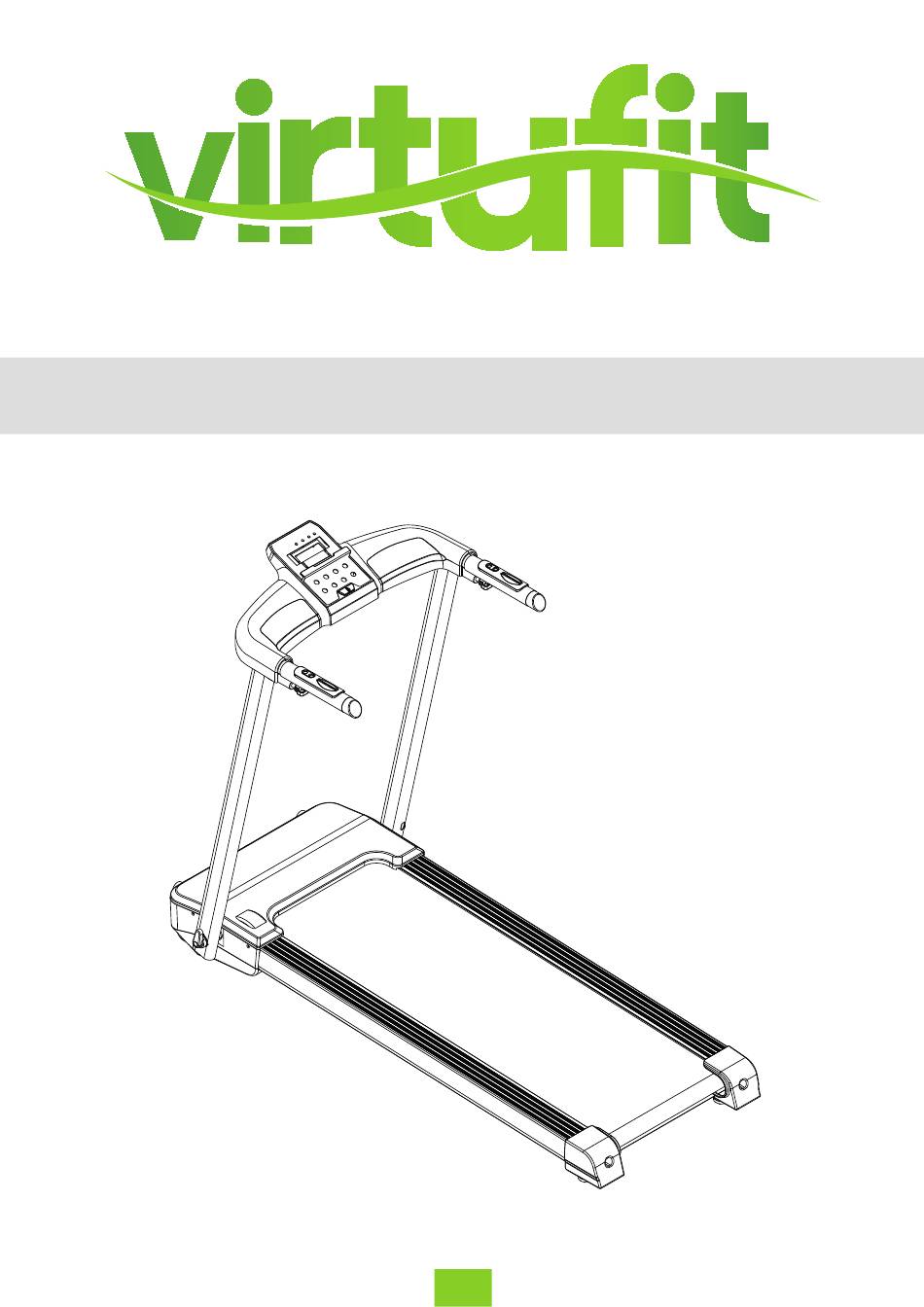

- Page 1 Totally Foldable TR-50i Treadmill Totally Foldable TR-50i Loopband User manual Gebruiksaanwijzing Voor vragen of ontbrekende onderdelen kunt u contact opnemen met Fitness Benelux:...
- Page 2 TECHNICAL PARAMETER 13 - 15 MAINTENANCE MAINTENANCE 16 - 18 TROUBLE SHOOTING TROUBLE SHOOTING 19 - 21 CONTROL PANEL CONTROL PANEL APPS APPS EXPLODED DRAWING EXPLODED DRAWING PARTS LIST PARTS LIST TRAINING INSTRUCTIONS TRAINING INSTRUCTIONS Virtufit Totally Foldable TR-50i Treadmill...
-
Page 3: Safety Instructions
– Before using the device, check that the nuts and bolts are securely tightened. – The safety of the device can only be maintained if it is regularly examined for damage and/or wear and tear. Virtufit Totally Foldable TR-50i Treadmill... - Page 4 – Maintenance assembly and repair work not carried out by an official dealer. – In the event of improper use, neglect and / or poor maintenance. – Failure to maintain the device in accordance with the manufacturer’s instructions (see the enclosed manual). Virtufit Totally Foldable TR-50i Treadmill...
- Page 5 When you open the carton, and you will find the below parts in the carton: DESCRIPTION Main frame Allen key 5mm Bold Lock washer Security key Oil bottle Bolt MP3 cable NOTE: Do not connect the appliance to the mains before it has been completely set up. Virtufit Totally Foldable TR-50i Treadmill...
-
Page 6: Montage Instructies
Unscrew the adjusting knob on the both sides of the frame respectively(suggest unscrew 3 circles) to make lower ends of upright tubes flick from the main frame. • Uplift the handle bar to the slot corresponding to the hinge of main frame. Virtufit Totally Foldable TR-50i Treadmill... - Page 7 STEP 2 STAP 2 After finishing the uplifting,screw the hand knob according to the direction as the arrow shows. • After finishing the uplifting, screw the hand knob according to the direction as the arrow shows. Virtufit Totally Foldable TR-50i Treadmill...
- Page 8 Attention: There are wires on the front and back side of the connector. Be careful not to pinch the wires. Also pay attention tot this when folding and unfolding when using the treadmill. Also pay attention tot this when folding and unfolding when using the treadmill. Virtufit Totally Foldable TR-50i Treadmill...
- Page 9 Put the handrails of the console in the horizontal direction and clip the pull pin of the left and right handrails into the holes on the upright tubes. handrails into the holes on the upright tubes. Virtufit Totally Foldable TR-50i Treadmill...
- Page 10 • Put the safety key (4) on the yellow area on the console. • The switch can be found on the rear of the TR-50i at the bottom near the power input. VirtuFit Totally Foldable TR-50i VirtuFit Totally Foldable TR-50I...
-
Page 11: Folding Instructions
Repeat process until the belt becomes central. 03. Running belt jam: If the running belt is in dead condition, use the Allen key to turn the screw 1/2 a turn both left and right until the jam solved (see fig 3). Virtufit Totally Foldable TR-50i Treadmill... -
Page 12: Technical Parameter
• Do not modify the plug provided with the product – if it will not t the outlet, have a proper outlet installed by a qualied electrician. • Make that the product is connected to an outlet having the same conguration as the plug. No adapter should be used with this product. Virtufit Totally Foldable TR-50i Treadmill... -
Page 13: Daily Maintenance
Be sure to clean the exposed area of the belt and the foot rails of the treadmill on both sides. In addition, wear clean shoes to reduce the risk of contamination of the treadmill. Remove the hood at least once a year to vacuum underneath. Virtufit Totally Foldable TR-50i Treadmill... -
Page 14: Lubricating The Belt
• Use a dry cloth to clean the control panel and areas around the power switch. Use a soft clean cloth and cleanser to remove stubborn stains and dirt off the running belt. • Tighten the running belt once a month. • Keep your treadmill in a safe dry place away from heat and water. Virtufit Totally Foldable TR-50i Treadmill... - Page 15 Use a soft clean cloth and detergent to remove stubborn stains and dirt from the treadmill. • Tighten the treadmill once a month. • Keep your treadmill away from heat and water in a safe, dry place. Regular maintenance prolongs the life of your treadmill and prevents injury! Virtufit Totally Foldable TR-50i Treadmill...
-
Page 16: Troubleshooting
If all of the above is correct, replace the console. Problem: Security key signal is not recognized by the computer, showing E07 or “--- --- ---”. Solution: Check if the magnetic parts of the safety key are good plugged in. Virtufit Totally Foldable TR-50i Treadmill... - Page 17 Check if the power supply is 8V, change the console, if not, change the computer. Solution: First turn off the device, restart the engine, see if the screen is Sceen display is poor back to normal, if not, take out the computer and the fixed PCB. Virtufit Totally Foldable TR-50i Treadmill...
- Page 18 If connection is good, change the computer. Solution: Button on the handle does • Check that the handle wire is good and the connection is good is not work connected. • Please replace the handle. Virtufit Totally Foldable TR-50i Treadmill...
-
Page 19: Control Panel
The maximum speed is 12 km / h and the minimum speed is 1 km / h. Press the “MODE” key, the screen displays “SPEED”, “TIME” and “CALORIES”. MODE The display will light up every 5 seconds with data from “SPEED”, “TIME” and “CALORIES”. Virtufit Totally Foldable TR-50i Treadmill... - Page 20 Pull out the safety cord and the treadmill will stop immediately. All windows will display “---”, the buzzer will sound “B-B -” 3 times, then the walking belt will stop. Attach the tip of the safety cord magnet to the computer and the treadmill will start moving again. Virtufit Totally Foldable TR-50i Treadmill...
- Page 21 Then select desired speed. For emergency stop, please pull out the safety key. The machine will stop very slowly. Pull out safety key and the screen will show “Err”, put it back and on it will show “OFF”. Press “STOP” key to stop the machine after using. Virtufit Totally Foldable TR-50i Treadmill...
- Page 22 3. Scan the QR code on the right to go to the user manual of the app. The manual describes step by step how the app should be connected to the device, how the app works and what the options are. FITSHOW APP STORE GOOGLE PLAY USER MANUAL FITSHOW FITSHOW FITSHOW Virtufit Totally Foldable TR-50i Treadmill...
- Page 23 EXPLODED DRAWING GEDETAILLEERDE TEKENING Description Remark Virtufit Totally Foldable TR-50i Treadmill...
-
Page 24: Parts List
Flat washer φ26 Round pipe plug M6 Flat washer φ6 Connector wire plug Q235 Flat washer φ8 Pull ring - φ38*28-PP Bolt Compession spring - ST4.2*16 Sponge sheath Damping washer - M6*55 Motor Panel MDF Virtufit Totally Foldable TR-50i Treadmill... -
Page 25: Training Instructions
The purpose of cooling down is to return the body to its normal or near normal, resting state at the end of each exercise session. A proper cool-down slowly lowers your heart rate and allows blood to return to the heart. Virtufit Totally Foldable TR-50i Treadmill... - Page 26 For questions or missing parts please contact your dealer.
