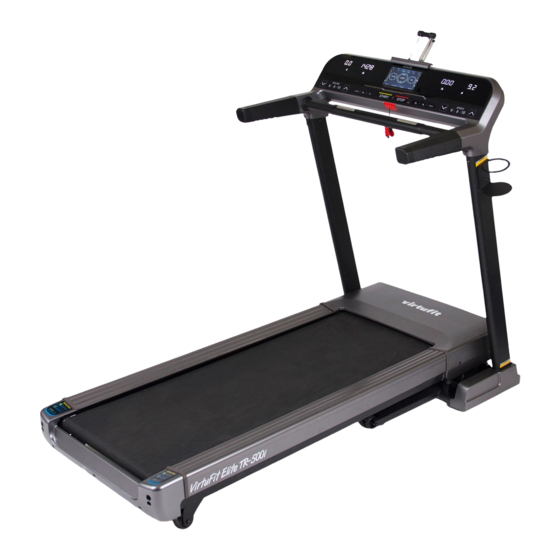

Elite TR-500i Treadmill
User manual
EN

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Elite TR-500i and is the answer not in the manual?

Questions and answers

Related Manuals for VIRTUFIT Elite TR-500i

Summary of Contents for VIRTUFIT Elite TR-500i

  • Page 1 Elite TR-500i Treadmill User manual...
  • Page 2 20 - 22 TROUBLE SHOOTING TROUBLE SHOOTING 23 - 38 CONTROL PANEL CONTROL PANEL APP INSTRUCTIONS APP INSTRUCTIONS 40 - 41 EXPLODED DRAWING EXPLODED DRAWING 42 - 44 PARTS LIST PARTS LIST TRAINING INSTRUCTIONS TRAINING INSTRUCTIONS VirtuFit Elite TR-500i Treadmill...

  • Page 3: Safety Instructions

    0.5 metres of free space all around it. – Before using the device, check that the nuts and bolts are securely tightened. – The safety of the device can only be maintained if it is regularly examined for damage and/or wear and tear. VirtuFit Elite TR-500i Treadmill...
  • Page 4 – Maintenance assembly and repair work not carried out by an official dealer. – In the event of improper use, neglect and / or poor maintenance. – Failure to maintain the device in accordance with the manufacturer’s instructions (see the enclosed manual). VirtuFit Elite TR-500i Treadmill...
  • Page 5 Left bottom cover Bottle holder Right bottom cover Cross solid wrench Bolt 5# Allen wrench Bolt Solid wrench Lock washer Left foam handlebar Big flat washer LET OP: Please don’t switch on before you finish the assembling. VirtuFit Elite TR-500i Treadmill...
  • Page 6 In this way you prevent the head of the socket head screw from being rotated. STEP 1 • Open the package and put the mainframe (A) on the floor. NOTE: Don’t open the packag belt (P) before set up of the treadmill. VirtuFit Elite TR-500i Treadmill...
  • Page 7 Fix the column A06 to the mainframe A with bolt E13 and lock washer E32 by 5# Allen wrench B09. • Fix the column A07 to the mainframe according to the steps above. NOTE: Support the column with hand to avoid falling down. VirtuFit Elite TR-500i Treadmill...
  • Page 8 Connect the monitor cable D03 with D04. Fix the monitor B to the left and right column A06\A07 with bolt E13 and lock washer E32 by 5# Allen wrench B09. NOTE: Please make sure cables are well connected before fasten. VirtuFit Elite TR-500i Treadmill...
  • Page 9 Attach the tablet holder (C) to the console (B) using the wrench (B15). The tablet holder is optional and can be omitted if you wish. NOTE: First, manually confirm the screw holder (B12) of the tablet holder in the console (B) and then tighten it with nut B13 and wrench B15. VirtuFit Elite TR-500i Treadmill...
  • Page 10 ASSEMBLY INSTRUCTIONS STEP 5 • Fix the left and right foam handlebar C05\C06 to the monitor B with bolt E22 and big washer E39 by cross solid wrench B08 VirtuFit Elite TR-500i Treadmill...
  • Page 11 ASSEMBLY INSTRUCTIONS STEP 6 • Attach the left and right cover (C14 / C15) to the frame. Make sure everything is well confirmed. VirtuFit Elite TR-500i Treadmill...
  • Page 12 ASSEMBLY INSTRUCTIONS STEP 7 • Fix the bottle holder B01 to the right column A07 with bolt E22 by solid cross solid wrench B08. VirtuFit Elite TR-500i Treadmill...
  • Page 13 STEP 8 • Remove the belt indicated at P. • Before running, please nip the safety key clip D07 with your cloth. • For any emergency, please pull the safety key rope, and the machine will stop. VirtuFit Elite TR-500i Treadmill...
  • Page 14 ASSEMBLY INSTRUCTIONS STEP 9 • Remove bolt M8 * 15 (E13) at the bottom of the steel cable (E) with 5 # inner wrench lock B09. VirtuFit Elite TR-500i Treadmill...
  • Page 15 ASSEMBLY INSTRUCTIONS STEP 10 • Take apart the bolt M8*15 ( E13) in the bottom side of the steel cable (E) with 5# Allen wrench B09. VirtuFit Elite TR-500i Treadmill...

  • Page 16: Folding Instructions

    NOTE: It’s forbidden to fold up when the machine is in running or incline mode. UNFOLDING Support place F with hand, kick the place E of airpressure bar, then the base frame will fall down automatically. VirtuFit Elite TR-500i Treadmill...

  • Page 17: Moving The Treadmill

    Once the Main Frame “F” reaches a low enough point, the wheels of the treadmill will become active. To transport, hold the treadmill from position “F” and tilt until the wheels are able to move on the ground. VirtuFit Elite TR-500i Treadmill...

  • Page 18: Daily Maintenance

    Cleaning: Wipe away the dust on the belt, running board and side footboard as excess dust may increase the frictional on the belt and cause damage to the machine. It is recommended to clean the machine once a month. VirtuFit Elite TR-500i Treadmill...
  • Page 19 Avoid making the belt too tight as this may damage it. NOTE: Any repair must be done by a professional technician unless otherwise specified by the supplier or manufacturer. VirtuFit Elite TR-500i Treadmill...

  • Page 20: Troubleshooting

    The display shows E05 after switch on-----overload protection • The load is too big, please reset. • Maybe some part is jammed which make the motor too heavy, so the machine cannot work. Please adjust the running belt or lubricate some oil. VirtuFit Elite TR-500i Treadmill...
  • Page 21 • Check motor • Check driver No speed sign Solution: • Check speed sensor • Change speed sensor • Change driver Incline learn fail Solution: • Check incline wire • Check incline motor • Check driver VirtuFit Elite TR-500i Treadmill...
  • Page 22 Change motor Motor break Solution: • Check motor wire • Check motor Storage wrong Solution: • Check storage IC • Change driver Moment current overflow Solution: • Adjust driver protentiometer • Check transmission • Change motor VirtuFit Elite TR-500i Treadmill...

  • Page 23: Control Panel

    Speed/Pulse window: usually it shows your current speed from 0.8-20.0km/h; if you hold the pulse sensor for several seconds it shows your current pulse from 50- 200/min. (the date just for reference, cannot be used as the medical purpose). VirtuFit Elite TR-500i Treadmill...
  • Page 24 Press it shortly and it will enter into the previous music or video. Press it for several seconds to turn up the volume in both music and video mode. Press it shortly and it will enter into the next music or video. VirtuFit Elite TR-500i Treadmill...

  • Page 25: Quick Start

    There are four function modules in the homepage. They are mode, program, music and video. There are 3 kind of countdown modes, contest mode and manual mode under mode function. There are 24 preset programs, 3 manual programs, 2 HRC programs (optional) and 1 FAT test program under program function. VirtuFit Elite TR-500i Treadmill...
  • Page 26 • Now you’ll see the word ‘search’ & click on it • Now bluetooth will search for the treadmill • Click on connect now • Now you’re connected to the treadmill Count/countdown timer. Distance/distance countdwn calculator. Calorie/calorie countdown calculator. VirtuFit Elite TR-500i Treadmill...

  • Page 27: Function Description

    “50.0” will be fl ashed displaying on the screen. Press the “-INCLINE+” or “-SPEED+” key to change the distance from 10.0 to 999.0. After finish exercising the system will display your running data automatically. VirtuFit Elite TR-500i Treadmill...
  • Page 28 Display the distance percentage of the user. Press MODE key, select your favorite contest distance and then Press the “-INCLINE+” or “-SPEED+” key to change the contest time. At last press START key to begin exercise. VirtuFit Elite TR-500i Treadmill...
  • Page 29 3. Press the START key to begin exercise. Press the “-INCLINE+” or “-SPEED+” key to change the inclination or speed during exercise at each stage. 4. When finish the previous stage, the system will go on next stage and the speed and inclination will be VirtuFit Elite TR-500i Treadmill...

  • Page 30: Program Table

    10 6 SPEED P24 SPEED 10 11 12 10 10 8 INCLINE 4 INCLINE 3 10 12 9 SPEED 10 6 INCLINE 1 10 7 SPEED INCLINE 3 12 9 11 11 6 SPEED INCLINE 5 VirtuFit Elite TR-500i Treadmill...
  • Page 31 0 - 15 (STEP) SPEED 0.8 - 20 0.8 - 20 (KM/H) DISTANCE 0.00 1.00 0.50 - 99.00 0.00 - 99.99 (KM) HEART RATE 50 - 200 (TIME/MIN) CALORIE 50.0 10.0 - 999 0.0 - 999 VirtuFit Elite TR-500i Treadmill...
  • Page 32 When the current speed is more than 10km/h in HP1 or 12km/h in HP2 and your current heart rate is still less than target heart rate, the system will increase the incline step by VirtuFit Elite TR-500i Treadmill...
  • Page 33 143 90 182 115 142 90 181 115 141 90 181 114 140 90 180 113 139 90 179 113 138 90 178 112 137 90 177 112 136 90 135 90 134 90 133 90 VirtuFit Elite TR-500i Treadmill...
  • Page 34 100 -200 0.8 - 20 F - 4 Weight 20 -150 0.50 - 99.00 F - 5 < 19 Thin = (20 - 25) Normal = (26 - 29) A little weight > 30 Too fat VirtuFit Elite TR-500i Treadmill...
  • Page 35 The icon stands for the progress of the playing music. LOCAL VIDEO Press the key to change the mode of music and video. When playing video, press this button will make the video full screen. VirtuFit Elite TR-500i Treadmill...

  • Page 36: Safety Function

    If any accident happened during exercise, please pull off the safety immediately until it stop. • If there is something wrong with the machine, please connect the retailer as soon as possible. It`s not allowed to repair the equipment by layperson. VirtuFit Elite TR-500i Treadmill...

  • Page 37: Pause Function

    Press STOP button twice, the system will stop and go back to standby mode and list your running date automatically at the same time. VirtuFit Elite TR-500i Treadmill...

  • Page 38: Lubrication Remind Function

    After finish oil please press the START key lasts for 3 seconds and the tip will be swept off automatically. And then system will display will give you a treadmill work report. • Press the START key shortly and then the treadmill will enter into standby mode. VirtuFit Elite TR-500i Treadmill...

  • Page 39: App Instructions

    ZWIFT APP STORE GOOGLE PLAY USER MANUAL ZWIFT ZWIFT ZWIFT FITSHOW APP STORE GOOGLE PLAY USER MANUAL FITSHOW FITSHOW FITSHOW VirtuFit Elite TR-500i Treadmill...

  • Page 40: Exploded Drawing

    EXPLODED DRAWING VirtuFit Elite TR-500i Treadmill...
  • Page 41 EXPLODED DRAWING VirtuFit Elite TR-500i Treadmill...
  • Page 42 C05 Left foam handlebar C36 Left anterior side rail cap C06 Right foam handlebar C37 Right anterior side rail cap C07 iPad rotation component C38 End cap C08 iPad holder C39 EVA pad C09 End cover D01 Monitor VirtuFit Elite TR-500i Treadmill...
  • Page 43 E38 Bolt - M8*45 E08 Bolt - M8*70 E39 Big flat washer E09 Bolt - M8*40 F01 Filter (optional) E10 Bolt - M8*40 F02 Inductance (optional) E11 Bolt - M8*30 F03 AC Single wire L500 (optional) VirtuFit Elite TR-500i Treadmill...
  • Page 44 G05 MP3 connection wire G06 USB connection wire H01 Bluetooth mould (optional) H02 Bluetooth connection wire (optional) H03 Screw - ST2.9*6.0 (optional) J01 Polar emitter (optional) J02 Heart rate receiver (optional) J03 HRC connection wire (optional) VirtuFit Elite TR-500i Treadmill...

  • Page 45: Training Instructions

    The purpose of cooling down is to return the body to its normal or near normal, resting state at the end of each exercise session. A proper cool-down slowly lowers your heart rate and allows blood to return to the heart. VirtuFit Elite TR-500i Treadmill...
  • Page 46 For questions or missing parts please contact your dealer.
