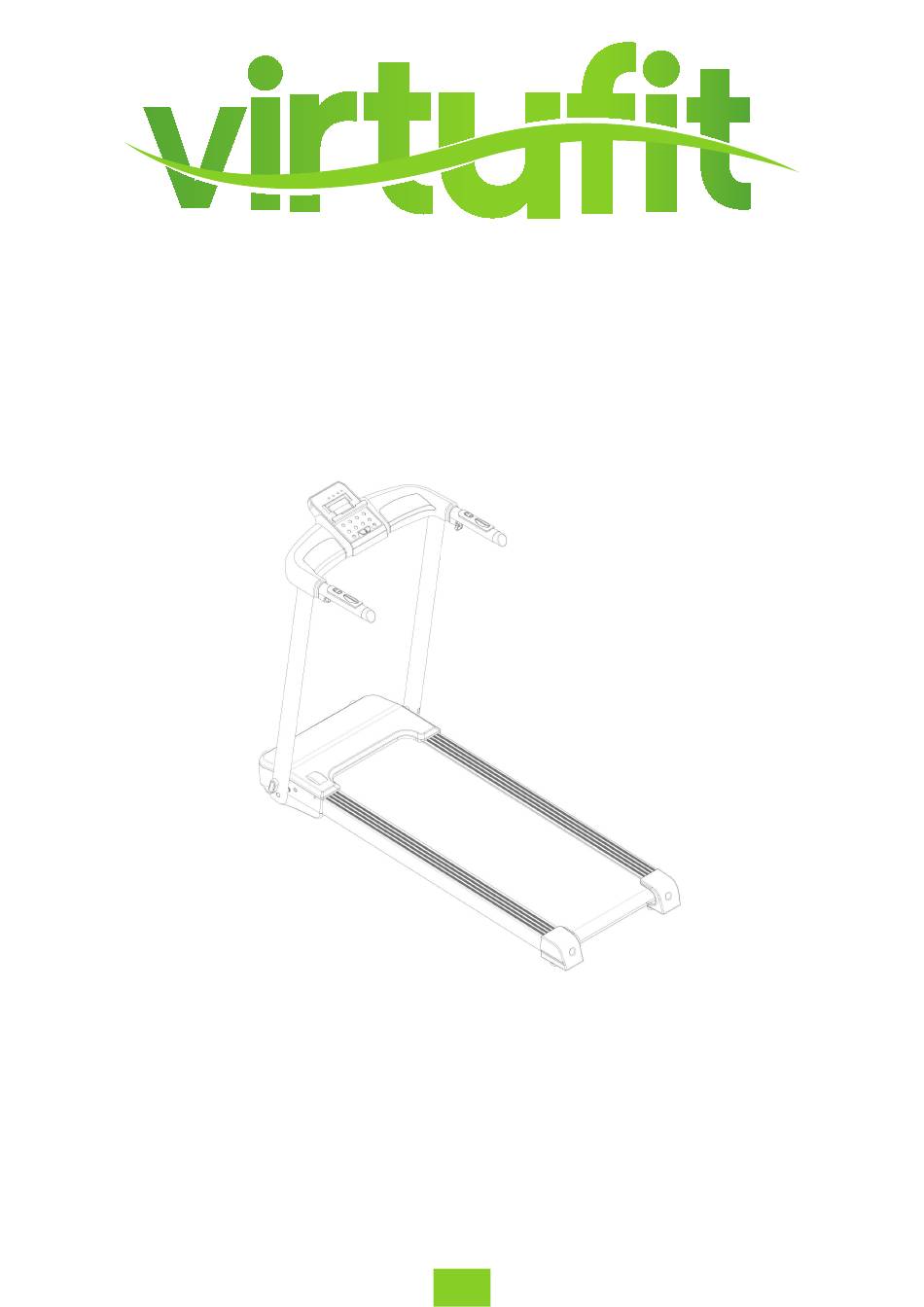

- Page 1 Totally Foldable TR-50i Treadmill Owner’s manual...
-
Page 2: Table Of Contents
INDEX Safety instructions Checklist Assembly instructions 6-10 Folding instructions Technical parameter Control panel 13-14 Warming-up instructions Maintenance treadmill 16-17 Problem solutions Exploded drawing Parts list Android app 21-24 iOS app 25-27 28-29 VirtuFit Totally Foldable TR-50i... -
Page 3: Safety Instructions
Treadmill is indoor-using equipment, not outdoor-using for avoiding damage. Keep the store-place clean and flat, drying. Prohibiting the other purpose using, only for workout. Please purchase the power-line to the distributor or contact with our company directly, for the power-line only equip to the treadmill. VirtuFit Totally Foldable TR-50i... -
Page 4: Safety Instructions
Please keep the space at least 1 X 2 meter at the end of base frame to escape any accidents! NOTE: THE VIRTUFIT TOTALLY FOLDABLE TR-50i TREADMILL IS PROVIDED IN 2 BOXES, WHEN THIS IS NOT THE CASE, PLEASE CONTACT FITNESS BENELUX. -
Page 5: Checklist
CHECKLIST (contents of packaging) TOOL KIT When you open the 2 boxes, you will find the below parts: VirtuFit Totally Foldable TR-50i... -
Page 6: Assembly Instructions
Open the carton, get out the above spare parts, put the main frame on the level ground. Two people work together to take out the machine from te carton. Use the two M12 knobs to fix the upright tubes with the base frame. Please do not tighten first. VirtuFit Totally Foldable TR-50i... - Page 7 Attention: There are wires on the front and back side of the connector. Be careful not to pinch the wires. Also pay attention tot this when folding and unfolding when using the treadmill. VirtuFit Totally Foldable TR-50i...
- Page 8 ASSEMBLY INSTRUCTIONS STEP 3 Put the handrails of the console in the horizontal direction and clip the pull pin of the left and right handrails into the holes on the upright tubes. VirtuFit Totally Foldable TR-50i...
- Page 9 ASSEMBLY INSTRUCTIONS STEP 4 Tighten the M12 knobs on the base to finish assembly. VirtuFit Totally Foldable TR-50i...
-
Page 10: Assembly Instructions
ASSEMBLY INSTRUCTIONS STEP 5 Put the safety key (4) on the yellow area on the console. VirtuFit Totally Foldable TR-50i... -
Page 11: Folding Instructions
- Then loosen the M12 knobs on the upright tubes and carefully fold the console up. - Place the machine leaning against the wall or place under a bed. CAUTION: Do not allow children to touch the machine, the treadmill may fall. VirtuFit Totally Foldable TR-50i VirtuFit TR-50i... -
Page 12: Technical Parameter
Do not modify the plug provided with the product – if it will not fit the outlet, have a proper outlet installed by a qualified electrician. Make that the product is connected to an outlet having the same configuration as the plug. No adapter should be used with this product. VirtuFit Totally Foldable TR-50i VirtuFit TR-50i... -
Page 13: Control Panel
Press “+” key to speed un and “-” key to slow down. The fastest speed is 12 km/h and lowest is 0.8 km/h. Press “MODE” key. The screen will show “SPEED” , “TIME” and “CALORIES”. The display will light from “SPEED”, “TIME” and “CALORIES” every 5 seconds. VirtuFit Totally Foldable TR-50i... -
Page 14: Control Panel
For emergency stop, please pull out the safety key. The machine will stop very slowly. Pull out safety key and the screen will show “Err”, put it back and on it will show “OFF”. Press “STOP” key to stop the machine after using. VirtuFit Totally Foldable TR-50i VirtuFit TR-50i... -
Page 15: Warming-Up Instructions
V. Sartorius muscle (inner thigh muscles) stretch: Foot In contrast, the knee outward to sit down. The hands grasp the feet to the groin pull. Maintain 10 to 15 seconds, then relax. Repeat three times(see Figure 5). VirtuFit Totally Foldable TR-50i VirtuFit TR-50i... -
Page 16: Maintenance Treadmill
Use a dry cloth to clean the control panel and areas around the power switch. Use a soft clean cloth and cleanser to remove stubborn stains and dirt off the running belt. Tighten the running belt once a month. Keep your treadmill in a safe dry place away from heat and water. VirtuFit Totally Foldable TR-50i VirtuFit TR-50i... -
Page 17: Maintenance Treadmill
(3) Running belt jam - If the running belt is in dead condition, use the Allen key to turn the screw 1/2 a turn both left and right until the jam solved (see fig 3). VirtuFit Totally Foldable TR-50i VirtuFit TR-50i... -
Page 18: Problem Solutions
Restart. Trouble with motor. Change the motor. Trouble with connected line. Change the connected line. Overload protection. Restart. Overheat protection. Restart. Overvoltage protection. Restart. Low-voltage protection. Restart. If you can not solve the problem, please contact your dealer. VirtuFit TR-50i... -
Page 19: Exploded Drawing
EXPLODED DRAWING VirtuFit Totally Foldable TR-50i... -
Page 20: Parts List
M6*55 Right end cap Running plank Countersunk hexagon socket screw M8*40 Side rail Running belt Cross recessed countersunk head tapping screw ST4*16 Top motor cover Power cord Round pipe plug Pulse sensor IPAD-holder Philip’s head screw VirtuFit Totally Foldable TR-50i... -
Page 21: Android App
If you’ve already registered, please enter your surename and password to login. Please register with an email address or phone number then select a username and password for your FitShow account. VirtuFit Totally Foldable TR-50i VirtuFit TR-50i... - Page 22 Connect to the correspond- ing device to ensure proper intergration. TR-50i Once connected, if you click image of de- vice, the Device Details will appear, display- ing the obtainable range of specifications. VirtuFit Totally Foldable TR-50i VirtuFit TR-50i...
- Page 23 Once connected, the App will display four modes, you can select one mode and click “START” button to begin exercising. WARNING: Move with caution while exercising and using the App as multitasking may be a distraction. VirtuFit Totally Foldable TR-50i VirtuFit TR-50i...
-
Page 24: Android App
Traveled, Steps Per Minute, Heart BPM, Average Speed, and Average Pace will be displayed. Once you’ve completed your workout, hit the “STOP” button and the FitShow will save this record in your workout history. VirtuFit Totally Foldable TR-50i VirtuFit TR-50i... - Page 25 For the first use you can sign up. Enter a username and password to save your personal training history. If you already registered, enter your username and password to log in. VirtuFit Totally Foldable TR-50i VirtuFit TR-50i...
- Page 26 After you have logged in or continued as a guest, the app will search for the fitness device. Make sure you are near the fitness device and the Bluetooth is turned on. Then you will see your device in the list and select it. VirtuFit Totally Foldable TR-50i VirtuFit TR-50i...
- Page 27 Select a training mode and start the training. During the training you can view the data and possibly use a scene. When you have finished the training, select “STOP”. If you have created an account, the app will remember your data. VirtuFit Totally Foldable TR-50i VirtuFit TR-50i...
- Page 28 You can test this by standing in the middle of the running deck (on the foot rails) and pulling the belt up on both sides. You can obtain an audiovisual explanation from your supplier. VirtuFit Totally Foldable TR-50i VirtuFit TR-50i...
- Page 29 At all times, the main switch must first be switched off before you do this. If you have any questions or missing parts, please contact your dealer. VirtuFit Totally Foldable TR-50i VirtuFit TR-50i...
