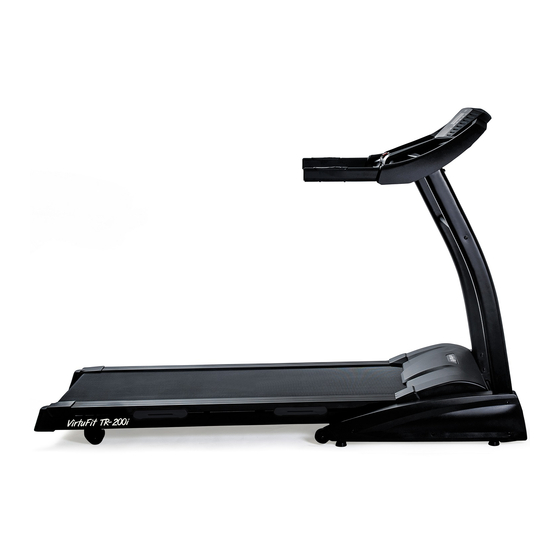

VIRTUFIT TR-200i User Manual

Only for home-using, the max user weight is 140 kgs
Hide thumbs Also See for TR-200i:
Table of Contents

Advertisement

Quick Links

Download this manual
TR-200i Treadmill
User manual
EN

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TR-200i and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for VIRTUFIT TR-200i

Summary of Contents for VIRTUFIT TR-200i

  • Page 1 TR-200i Treadmill User manual...

  • Page 2: Table Of Contents

    INDEX Safety instructions Assembly instructions Folding instructions Maintenance Treadmill Problem Solutions Operating instruction Programs Android Apps IOS App Exploted Drawing Parts List VirtuFit TR-200i Treadmill...

  • Page 3: Safety Instructions

    – Treadmill is indoor-using equipment, not outdoor-using for avoiding damage. Keep the store-place clean and flat, drying. Prohibiting the other purpose using, only for workout. – Please purchase the power-line to the distributor or contact with our company directly, for the powerline only equip to the treadmill. VirtuFit TR-200i Treadmill...
  • Page 4 – This Treadmill only for home-using, the max user weight is 140 KGS. – Please keep the space at least 1 X 2 meter at the end of base frame to escape any accidents! VirtuFit TR-200i Treadmill...

  • Page 5: Assembly Instructions

    In this way you prevent the head of the socket head screw from being rotated. STEP 1 – Let the Upright cable thought the right upright. – Use the bolts and washer fix the left and right upright. VirtuFit TR-200i Treadmill...
  • Page 6 ASSEMBLY INSTRUCTIONS STEP 2 – Fix the strengthen tube to the uprights with bolts and washers. VirtuFit TR-200i Treadmill...
  • Page 7 ASSEMBLY INSTRUCTIONS STEP 3 – Connect the console cable and upright cable. – Assembly the console with bolts and washers. VirtuFit TR-200i Treadmill...
  • Page 8 ASSEMBLY INSTRUCTIONS STEP 4 – Fix the side covers with screws. VirtuFit TR-200i Treadmill...
  • Page 9 – Remove the safety key, press MODE and hold, then insert the safety key again, the machine enters into self-checking state. During this state, pressing START/STOP two times , the machine begins to self –check. It stops automatically after self-checking. Note: Don’t stand on the machine when self-checking. VirtuFit TR-200i Treadmill...

  • Page 10: Folding Instructions

    Attention: it is forbidden to fold up when the machine is in running or incline mode. UNFOLDING Support place F with hand , kick the place E of air pressure bar, then the base frame will fall down automatically. VirtuFit TR-200i Treadmill...
  • Page 11 With your foot at “D”, slowly tilt the top of the treadmill downward towards the ground. Once the Main Frame “F” reaches a low enough point, the wheels of the treadmill will become active. VirtuFit TR-200i Treadmill...

  • Page 12: Maintenance Treadmill

    3. Use a dry cloth to clean the control panel and areas around the power switch. Use a soft clean cloth and cleanser to remove stubborn stains and dirt off the running belt. 4. Tighten the running belt once a month. 5. Keep your treadmill in a safe dry place away from heat and water. VirtuFit TR-200i Treadmill...
  • Page 13 Repeat process until the belt becomes central. (3) Running belt jam - If the running belt is in dead condition, use the Allen key to turn the screw 1/2 a turn both left and right until the jam solved (see fig 3). VirtuFit TR-200i Treadmill...

  • Page 14: Problem Solutions

    2.Change the incline motor 1.Check the distance from speed sensor to the Speed error when selfchecking magnetic of roller, and ajust it with 3mm 2.Change the speed sensor Short-Circuit problem Change the control board VirtuFit TR-200i Treadmill...
  • Page 15 3. Check Power Cable (You may need to take it to an electrician). 4. Ensure that the safety key is installed, as the treadmill will not power on without it. If you can not solve the problem, please contact your dealer. VirtuFit TR-200i Treadmill...

  • Page 16: Operating Instruction

    Power on the machine, press it to choose time,distance,calorie count-down CLEAR / SET training. When running, clear up time,distance and calorie. When running, press it to increase speed by 0.5km/h. Hold on it, speed is (4) SPEED + increased continuously. VirtuFit TR-200i Treadmill...
  • Page 17 When running, press it to increase speed by 0.5km/h. Hold on it, speed is in the handrail increased continuously. (13) SPEED - When running, press it to decrease speed by 0.5km/h.Hold on it, speed is in the handrail deceased continuously. VirtuFit TR-200i Treadmill...
  • Page 18 – In the state of running, single press CLEAR/SET will reset time, distance, calorie. Incline Feature – Incline may be adjusted anytime after belt movement. – Incline can’t be back to 0 after removing safety key. – Incline can be back to 0 after starting machine again. VirtuFit TR-200i Treadmill...
  • Page 19 Calorie Display Displays the cumulative calories burned at any given time during your workout. – Note: This is only a rough guide used for comparison of different exercise sessions, which cannot be used for medical purposes. VirtuFit TR-200i Treadmill...

  • Page 20: Programs

    Program 1 Program 2 speed speed 12345678 91 0 123456789 minute minute Program 4 Program 3 speed speed 12345678 91 0 12345678 91 0 minute minute Program 5 Program 6 speed speed 123456789 123456789 minute minute VirtuFit TR-200i Treadmill...
  • Page 21 91 0 minute minute Program 11 Program 12 speed speed 123456789 minute 123456789 minute Program 14 Program 13 speed speed 123456789 123456789 minute minute Program 16 Program 15 speed speed 12345678 91 0 12345678 91 0 minute minute VirtuFit TR-200i Treadmill...
  • Page 22 Program 21 Program 22 speed speed 123456789 12345678 minute minute Program 24 Program 23 speed speed 12345678 91 0 12345678 minute minute Program 25 Program 26 speed speed incline incline 12345678 91 0 123456789 minute minute VirtuFit TR-200i Treadmill...
  • Page 23 12345678 12345678 91 0 minute minute Program 34 Program 33 speed speed incline incline 12345678 91 0 123456789 minute minute Program 36 Program 35 speed speed incline incline 12345678 91 0 1 2345678 91 0 minute minute VirtuFit TR-200i Treadmill...

  • Page 24: Android Apps

    If you’ve already registered, please enter your surename and password to login. Please register with an email address or phone number then select a username and password for your FitShow account. VirtuFit TR-200i Treadmill...
  • Page 25 With bluetooth enabled, it will automatically locate your device. Connect to the corresponding device to ensure TR-200i proper intergration. TR-200i Once connected, if you click image of device, the Device Details will appear, displaying the obtainable range of specifications. VirtuFit TR-200i Treadmill...
  • Page 26 Control” Once connected, the App will display four modes, you can select one mode and click “START” button to begin exercising. WARNING: Move with caution while exercising and using the App as multitasking may be a distraction. VirtuFit TR-200i Treadmill...
  • Page 27 Once you begin exercising, your workout progress of Time Elapsed, Calories Burned, Distance Traveled, Steps Per Minute, Heart BPM, Average Speed, and Average Pace will be displayed. Once you’ve completed your workout, hit the “STOP” button and the FitShow will save this record in your workout history. VirtuFit TR-200i Treadmill...
  • Page 28 Click on “Search” to search your fitness device. The app will ask you now to log in or to continue as a guest. For the first use you can sign up. Enter a username and password to save your personal training history. If you already registered, enter your username and password to log in. VirtuFit TR-200i Treadmill...
  • Page 29 After you have logged in or continued as a guest, the app will search for the fitness device. Make sure you are near the fitness device and the Bluetooth is turned on. Then you will see your device in the list and select it. VirtuFit TR-200i Treadmill...
  • Page 30 Select a training mode and start the training. During the training you can view the data and possibly use a scene. When you have finished the training, select “STOP”. If you have created an account, the app will remember your data. TR-100i VirtuFit TR-200i Treadmill...
  • Page 31 EXPLODED DRAWING VirtuFit TR-200i Treadmill...

  • Page 32: Parts List

    24M Flat head screw ST3*8 66 Bolt M8*12 24N Console cable 67 Bolt M8*16 24P Cable for button board 68 Bolt M10*50 24Q Console sticker -1 69 Bolt M10*65 24R Console sticker -2 70 M10 non-metallic insert hexagon lock nut,type 1 VirtuFit TR-200i Treadmill...

  • Page 33: Installation Guide

    82 Countersunk head Bolt M6*25 83 Φ6 Flat washer class C 84 Nylon Nut M6 8.INSTALLATION GUIDE 8.1 .1 Let the Upright cable thought the right upright. 8.1.2 Use the bolts and washer fix the left and right upright. VirtuFit TR-200i Treadmill...
  • Page 34 For questions or missing parts please contact your dealer.
