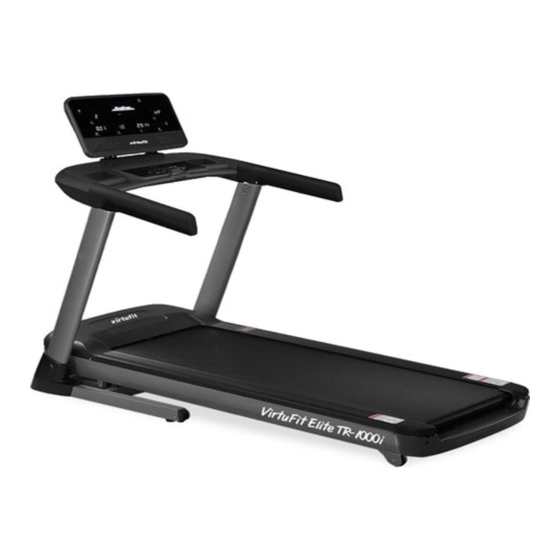

Summary of Contents for VIRTUFIT Elite TR-1000i
- Page 1 Elite TR-1000i Treadmill User manual...
-
Page 2: Table Of Contents
INDEX Safety instructions Checklist Assembly instructions 7-11 Folding instructions 12-13 Maintenance treadmill 14-15 Problem solutions Control panel 17-23 Kinomap Program speed table 25-26 Training instructions Exploded drawing Part list 29-32 VirtuFit Elite TR-1000i Treadmill... -
Page 3: Safety Instructions
– Treadmill is indoor-using equipment, not outdoor-using for avoiding damage. Keep the store-place clean and flat, drying. Prohibiting the other purpose using, only for workout. – Please purchase the power-line to the distributor or contact with our company directly, for the powerline only equip to the treadmill. VirtuFit Elite TR-1000i Treadmill... -
Page 4: Safety Instructions
– This Treadmill only for home-using, the max user weight is 155 KGS. – Please keep the space at least 1 X 2 meter at the end of base frame to escape any accidents! VirtuFit Elite TR-1000i Treadmill... -
Page 5: Checklist
CHECKLIST TOOL KIT Main Frame Upright Post Frame ( L & R ) Console Display Base frame cover Console rear cover Manual Hardware bag Silicon oil Safety key VirtuFit Elite TR-1000i Treadmill... -
Page 6: Checklist
Philips C.K.S self-taping screw ( ST4*12 ) 2pcs Allen C.K.S half thread screw ( M8*30*20) 2pcs Philips C.K.S. self-taping screw ( ST4*16 ) 4 pcs Cross Wrench 1pcs T shaped wretch ( S6 ) 1 pcs VirtuFit Elite TR-1000i Treadmill... -
Page 7: Assembly Instructions
– Connect communication wire of the console with the right upright post. Insert the left and right upright post on the base frame, and then fix the each upright post with 2pcs M8*60*20 screw and 1pc M8*20 screw. VirtuFit Elite TR-1000i Treadmill... - Page 8 – Put the base frame covers in the left and right side of upright post, then clip-on the covers together; – Last, fix the covers by 1pc ST4*12 screw. VirtuFit Elite TR-1000i Treadmill...
- Page 9 – Use 2pcs M8*15 screw to fix each upright post, and then use 1pc M8*30*20 screw to fix the hole under each handlebar. (Note: The screw M8*30*20 is for adjusting the handlebar, it can not be fixed tightly, or else the tube will be damaged). VirtuFit Elite TR-1000i Treadmill...
- Page 10 ASSEMBLY INSTRUCTIONS STEP 4 – Put the display on the console, and lock the two parts together with 4pcs M8*15 screw. VirtuFit Elite TR-1000i Treadmill...
-
Page 11: Assembly Instructions
STEP 5 – Place the rear cover on the rear of the console and fix it with 4pcs ST4*16 screw; – Check all screws were fixed rightly or not. Make sure the treadmill was assembled stably. VirtuFit Elite TR-1000i Treadmill... -
Page 12: Folding Instructions
Attention: it is forbidden to fold up when the machine is in running or incline mode. UNFOLDING Support place F with hand , kick the place E of air pressure bar, then the base frame will fall down automatically. VirtuFit Elite TR-1000i Treadmill... -
Page 13: Folding Instructions
With your foot at “D”, slowly tilt the top of the treadmill downward towards the ground. Once the Main Frame “F” reaches a low enough point, the wheels of the treadmill will become active. VirtuFit Elite TR-1000i Treadmill... -
Page 14: Maintenance Treadmill
3. Use a dry cloth to clean the control panel and areas around the power switch. Use a soft clean cloth and cleanser to remove stubborn stains and dirt off the running belt. 4. Tighten the running belt once a month. 5. Keep your treadmill in a safe dry place away from heat and water. VirtuFit Elite TR-1000i Treadmill... -
Page 15: Maintenance Treadmill
Repeat process until the belt becomes central. (3) Running belt jam - If the running belt is in dead condition, use the Allen key to turn the screw 1/2 a turn both left and right until the jam solved (see fig 3). VirtuFit Elite TR-1000i Treadmill... -
Page 16: Problem Solutions
Replace the inverter or ask for checking or repair Inverter output short circuit Replace the inverter or ask for checking or repair Overvoltage protection Overvoltage protection Low voltage display Low voltage display Emergency stop display Emergency stop display Motor overload protection Motor overload protection VirtuFit Elite TR-1000i Treadmill... -
Page 17: Control Panel
1.0 ~ 20.0KM/H. Decrease or increase the running speed. INCLINE ADJUSTED In the treadmill running state, set the incline directly to the key specified value; INCLINE SHORTCUT the incline range is 0 ~ 15%. VirtuFit Elite TR-1000i Treadmill... - Page 18 P1-P36, it is the reset button to countdown time default value (30 minutes); Adjust the speed intelligently. SMART SPEED Select the program P0 ~ P36, U02, U03, HRC1 ~ HRC3, FAT PROGRAM SELECT when the treadmilll is stopped. VirtuFit Elite TR-1000i Treadmill...
- Page 19 6. “STOP” key, when the treadmill is running, stop the treadmill slowly by pressing the STOP key. All setting returns to default state. 7. Press “+”,“-” key or “QUICK INCLINE” key to adjust treadmill incline; 8. In any state, pull-out safety locks, window displays: ”E7” and sound buzzer DI-DI-DI. Treadmill stops running. VirtuFit Elite TR-1000i Treadmill...
- Page 20 Setting range: 1.0-99.0KM, work for 1.KM. When in distance countdown mode, press ‘ MODE’ to set the calories, calorie window shines. Initial window shines. Initial calorie displays: 50， Default:50Cal, press speed key ‘+’ and ‘-’to set the calorie range: 20-9990CAL. VirtuFit Elite TR-1000i Treadmill...
- Page 21 8 seconds, and the window will show the BMI. Take the Asian people for example, BMI under 18 is under weight; Between 18 and 14 is normal weight; Between 25 and 28 is over weight; And over 29 is obesity. VirtuFit Elite TR-1000i Treadmill...
- Page 22 When the user’s heart rate is higher than the target heart rate 6-29 times / min, the speed reduced by 1.0 km / h. When the user’s hearth rate is higher or lower than the target hearth rate 0 - 5 times minute, the speed remains the same. VirtuFit Elite TR-1000i Treadmill...
-
Page 23: Control Panel
The min. incline level is 3. Press again the “ECO” key to quit the ECO mode. Treadmill will decrease 3 levels based on the current incline, the min. incline is 0. In every time using, the default of treadmill is not in the ECO mode. VirtuFit Elite TR-1000i Treadmill... -
Page 24: Kinomap
Download the Kinomap app in the App Store or in Google Play Store by entering “Kinomap” in the search bar or follow one of the links below: Apple IOS App Store: https://itunes.apple.com/us/app/kinomap/id611177969 Google Android Play Store: https://play.google.com/store/apps/details?id=com.kinomap.training&hl=en VirtuFit Elite TR-1000i Treadmill... -
Page 25: Program Speed Table
PROGRAM SPEED TABLE VirtuFit Elite TR-1000i Treadmill... -
Page 26: Program Speed Table
PROGRAM SPEED TABLE VirtuFit Elite TR-1000i Treadmill... -
Page 27: Training Instructions
The purpose of cooling down is to return the body to its normal or near normal, resting state at the end of each exercise session. A proper cool-down slowly lowers your heart rate and allows blood to return to the heart. VirtuFit Elite TR-1000i Treadmill... -
Page 28: Exploded Drawing
EXPLODED DRAWING LOOPBAND AFSTELLEN VirtuFit Elite TR-1000i Treadmill... -
Page 29: Part List
Philips C.K.S. self-tapping screw ST4X16 Philips C.K.S. self-tapping screw ST4X40 Phillips countersunk head self-tapping screw ST3X10 Phillips countersunk head self-tapping screw ST4X15 Philips C.K.S. full head screw M5X10 Philips C.K.S. full head screw M4X10 Philips C.K.S. self-tapping screw ST4X15 VirtuFit Elite TR-1000i Treadmill... - Page 30 Serrated kicj wasger Φ5 Incline axle Φ25XΦ17XΦ10X6X1 Side rail guider Φ25XΦ5X4.5 Wire protector Front roller Rear roller Cylinder Motor Incline motor Running deck Running belt Motor belt Side rail Console upper cover Console lower cover Panel Handle bar VirtuFit Elite TR-1000i Treadmill...
- Page 31 Magnetic ring Control set Speed sensor Wire Wire Wire Handle pulse Handle pulse wire Controller Safety key Power cord Power cord Wire ( Ground wire ) Wire ( Ground wire ) Rocker switch Automotive switch Power cord VirtuFit Elite TR-1000i Treadmill...
-
Page 32: Part List
PARTS LIST Description Quantity Plug Cable clamp Wire clip Allen C.K.S. half thread screw M8X30X20 Allen C.K.S. full thread screw M8X20 VirtuFit Elite TR-1000i Treadmill... - Page 33 For questions or missing parts please contact your dealer.
