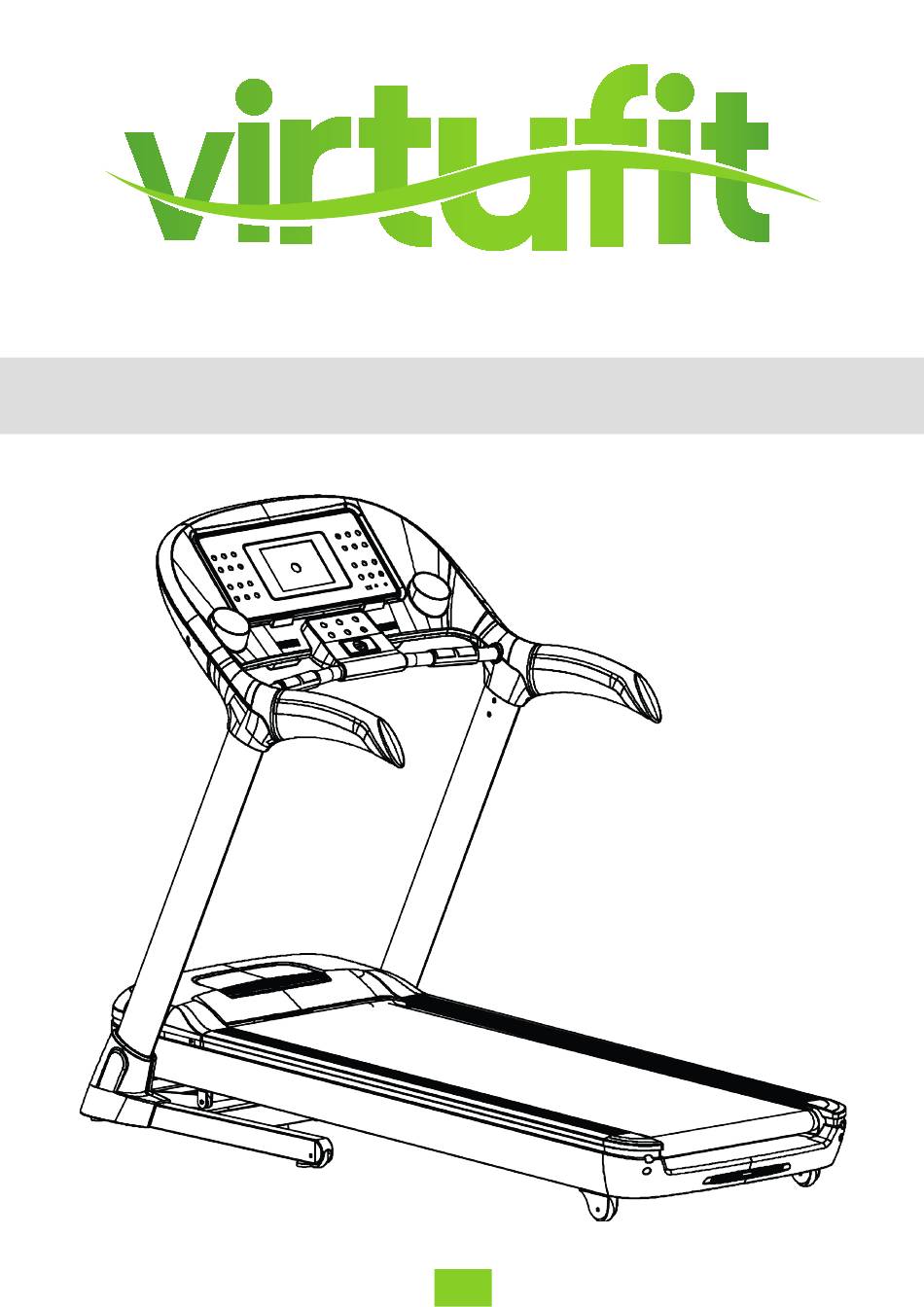

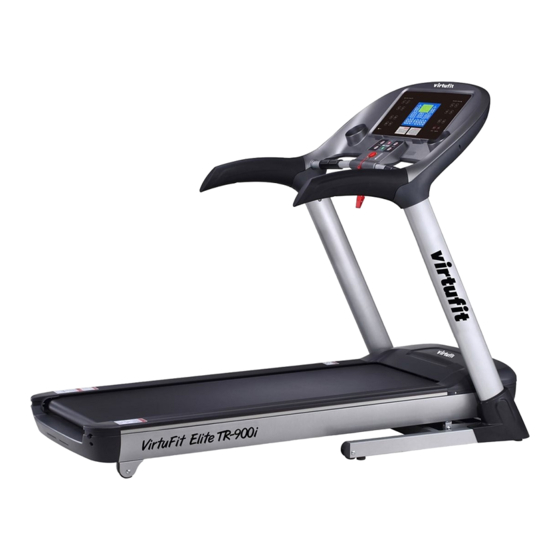

- Page 1 Elite TR-900i Treadmill User manual...
-
Page 2: Table Of Contents
13 - 15 MAINTENANCE MAINTENANCE 16 - 17 TROUBLE SHOOTING TROUBLE SHOOTING 18 - 23 CONTROL PANEL CONTROL PANEL APP INSTRUCTIONS APP INSTRUCTIONS EXPLODED DRAWING EXPLODED DRAWING 26 - 27 PARTS LIST PARTS LIST TRAINING INSTRUCTIONS TRAINING INSTRUCTIONS VirtuFit Elite TR-900i Treadmill... -
Page 3: Safety Instructions
0.5 metres of free space all around it. – Before using the device, check that the nuts and bolts are securely tightened. – The safety of the device can only be maintained if it is regularly examined for damage and/or wear and tear. VirtuFit Elite TR-900i Treadmill... - Page 4 – Maintenance assembly and repair work not carried out by an official dealer. – In the event of improper use, neglect and / or poor maintenance. – Failure to maintain the device in accordance with the manufacturer’s instructions (see the enclosed manual). VirtuFit Elite TR-900i Treadmill...
-
Page 5: Checklist
When you open the carton, and you will find the below parts in the carton. Motor cover Console Upright post (L/R) Silicon oil Main frame Base cap 1 & 2 (L) Base cap 1 & 2 (R) Safety key Console clamping ring VirtuFit Elite TR-900i Treadmill... - Page 6 When you open the carton, and you will find the below parts in the carton. Allen screw (full) M8*15 (10 pieces) Allen screw (half ) M8*60*20 (4 pieces) Cross wrench (1 piece) T shaped wrench M6 (1 piece) VirtuFit Elite TR-900i Treadmill...
-
Page 7: Assembly Instructions
Insert the upright post into the clamping ring of both sides of the main frame. • Attach the upright post with two M8*60*20 bolts on the side of the tube and with a M8*15 bolt on the front. Tighten all bolts securely. VirtuFit Elite TR-900i Treadmill... - Page 8 Remove the clamping ring fromt the console frame and align the hole on the two sides of the handles. NOTE: Take the cable from the right handle out of the hole of the clamping ring to prevent the cable from pinching, lock them using two M8*15 screws. VirtuFit Elite TR-900i Treadmill...
- Page 9 Insert the console with the installed console clamping ring into the upright tubes (connect the cable until they snap in). Be careful and avoid pinching off the cable. • Use screw M8*15 to secure the console to the upright tubes. Tighten all screws securely. VirtuFit Elite TR-900i Treadmill...
- Page 10 Fold the machine by lifting the Running desk at the back. Install the caps L 1&2 and R 1& 2 (63, 64, 65, 66) with the self-tapping screw (33). • Place the security key (78-8) on the console. • The treadmill is ready to be used. VirtuFit Elite TR-900i Treadmill...
-
Page 11: Folding Instructions
3. HHold the deck for a few seconds when it’s slowly dropping then you can release your hands. Do not depress the running Transport desk, it will fall down automatically with wheels the gas spring. VirtuFit Elite TR-900i Treadmill... -
Page 12: Transport And Adjustment
Repeat process until the belt becomes central. 03. Running belt jam: If the running belt is in dead condition, use the Allen key to turn the screw 1/2 a turn both left and right until the jam solved (see fig 3). VirtuFit Elite TR-900i Treadmill... -
Page 13: Maintenance
It is recommended to clean the machine once a month. In addition, wear clean shoes to reduce the risk of contamination of the treadmill. Remove the hood at least once a year to vacuum underneath. VirtuFit Elite TR-900i Treadmill... - Page 14 • Use a dry cloth to clean the control panel and areas around the power switch. Use a soft clean cloth and cleanser to remove stubborn stains and dirt off the running belt. • Tighten the running belt once a month. • Keep your treadmill in a safe dry place away from heat and water. VirtuFit Elite TR-900i Treadmill...
- Page 15 Use a soft clean cloth and detergent to remove stubborn stains and dirt from the treadmill. • Tighten the treadmill once a month. • Keep your treadmill away from heat and water in a safe, dry place. Regular maintenance prolongs the life of your treadmill and prevents injury! VirtuFit Elite TR-900i Treadmill...
-
Page 16: Trouble Shooting
Solution: Check an reconnect the cable or replace the controller. E-03 2. Reason: Controller defected. Solution: Replace the controller. 3. Reason: SSpeed sensor not placed well. Solution: Place Speed sensor correctly. 4. Reason: Speed sensor defected. Solution: Replace the speed sensor. VirtuFit Elite TR-900i Treadmill... - Page 17 Well connect the wire or chang the wire. 2. Reason: Console circuitry defected. Solution: Change the console. CONSOLE 1. Reason: The screw on the PCB is loose. Solution: Tight the screw well. SHORT OF 2. Reason: Console defected. Solution: Change the console. DISPLAY VirtuFit Elite TR-900i Treadmill...
-
Page 18: Control Panel
Incline “+” “-” BUTTON FUNCTION DISTANCE Displays the distance value. CALORIE Displays the calorie value TIME Displays the time value. INCLINE Displays the incline value. PULSE Displays the heart rate value. SPEED Displays the speed value. VirtuFit Elite TR-900i Treadmill... - Page 19 With this shortcut, the treadmill can go at once to the desired speed. SPEED Increase the incline by pressing this key. Decrease the incline by pressing this key. QUICK When the treadmill is moving, you can use this shortcut to go at once to the INCLINE desired incline. VirtuFit Elite TR-900i Treadmill...
- Page 20 • When in distance settings, press “MODE” to set the calories. The calorie window lights up. Initial calorie value is: 50 calories, Press “SPEED” “+” or “-” to set the calorie value. Setting range of the calorie value is: 5 ~ 990 calories. VirtuFit Elite TR-900i Treadmill...
- Page 21 5. When the time reaches 0, the treadmill will stop slowly and the middle window will show “END” and a sound will go off; 6. Pull out the safety key so the treadmill will stop immediately. The time window will display “Er-07” and a buzzer will sound. VirtuFit Elite TR-900i Treadmill...
- Page 22 After setting, the user can press “START” to start the movement. The user’s special program will be saved. When the customer runs the next time, he can enter the corresponding mode and run the same program. VirtuFit Elite TR-900i Treadmill...
- Page 23 The safety key can be removed in each status, after which the display shows “E-07” and a buzzer sounds. Then carefully reset the safety key after which all buttons will light up for 2 seconds, then go to the manual start mode (equivalent reset). VirtuFit Elite TR-900i Treadmill...
-
Page 24: App Instructions
3. Scan the QR code on the right to go to the user manual of the app. The manual describes step by step how the app should be connected to the device, how the app works and what the options are. KINOMAP APP STORE GOOGLE PLAY USER MANUAL KINOMAP KINOMAP KINOMAP VirtuFit Elite TR-900i Treadmill... -
Page 25: Exploded Drawing
EXPLODED DRAWING VirtuFit Elite TR-900i Treadmill... -
Page 26: Parts List
Hex full head screw M8*75 Incline motor Screw ST4*16 Running desk Screw ST4*40 Running belt Countersunk head self-tapping screw Motor belt Countersunk head self-tapping screw Side rail Screw M5*10 Console upper cover Screw M4*10 Console lower cover VirtuFit Elite TR-900i Treadmill... - Page 27 78-8 Safety sticker Magnetic ring 78-9 Speaker Console set Console upper cover Speed sensor PAnel Main wire Print wire Console wire Handle pulse Handle pulse wire Console Power cord Power cord Wire (ground wire) Wire (ground wire) VirtuFit Elite TR-900i Treadmill...
-
Page 28: Training Instructions
The purpose of cooling down is to return the body to its normal or near normal, resting state at the end of each exercise session. A proper cool-down slowly lowers your heart rate and allows blood to return to the heart. VirtuFit Elite TR-900i Treadmill... - Page 29 For questions or missing parts please contact your dealer.
