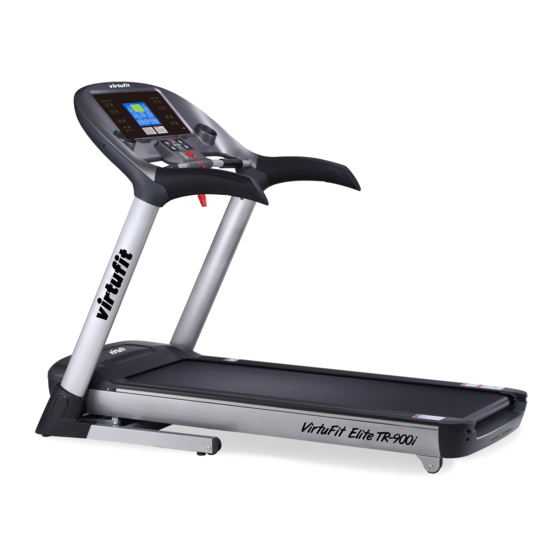

- Page 1 TR-900i Treadmill User manual VirtuFit TR-900i Treadmill...
-
Page 2: Table Of Contents
INDEX Safety instructions Checklist Assembly instructions 7-10 Folding instructions 11-12 Maintenance treadmill 13-14 Problem solutions 15-16 Control panel 17-23 App possibilities Exploded drawing Parts list 26-29 Training instructions VirtuFit TR-900i Treadmill... -
Page 3: Safety Instructions
– Treadmill is indoor-using equipment, not outdoor-using for avoiding damage. Keep the store-place clean and flat, drying. Prohibiting the other purpose using, only for workout. – Please purchase the power-line to the distributor or contact with our company directly, for the powerline only equip to the treadmill. VirtuFit TR-900i Treadmill... -
Page 4: Safety Instructions
– This Treadmill only for home-using, the max user weight is 150 KGS. – Please keep the space at least 1 X 2 meter at the end of base frame to escape any accidents! VirtuFit TR-900i Treadmill... -
Page 5: Checklist
When you open the carton, you will find the below parts in the carton: Motor cover Console Upright post (L/R) Silicon oil Main frame Base cap 1 & 2 (L) Base cap 1 & 2 (R) Safety key Console clamping ring VirtuFit TR-900i Treadmill... -
Page 6: Checklist
CHECKLIST TOOL KIT Allen screw (full) M8*15 (10 pieces) Allen screw (half ) M8*60*20 (4 pieces) Cross wrench (1 piece) T shaped wrench M6 (1 piece) VirtuFit TR-900i Treadmill... -
Page 7: Assembly Instructions
– Insert the upright post into the clamping ring of both sides of the main frame; – Attach the upright post with two M8*60*20 bolts on the side of the tube and with a M8*15 bolt on the front. Tighten all bolts securely. VirtuFit TR-900i Treadmill... - Page 8 – Remove the clamping ring fromt the console frame and align the hole on the two sides of the handles (note: take the cable from the right handle out of the hole of the clamping ring to prevent the cable from pinching), lock them using two M8*15 screws. VirtuFit TR-900i Treadmill...
- Page 9 – Insert the console with the installed console clamping ring into the upright tubes (connect the cable until they snap in). Be careful and avoid pinching off the cable; – Use screw M8*15 to secure the console to the upright tubes. Tighten all screws securely. VirtuFit TR-900i Treadmill...
-
Page 10: Assembly Instructions
Fold the machine by lifting the Running desk at the back. Install the caps L 1&2 and R 1& 2 (63, 64, 65, 66) with the self-tapping screw (33); – Place the security key (78-8) on the console; – The treadmill is ready to be used. VirtuFit TR-900i Treadmill... -
Page 11: Folding Instructions
3. Hold the deck for a few seconds when it’s slowly dropping then you can release your hands. Do not depress the running desk, it will fall down Transport automatically with the gas spring. wheels VirtuFit TR-900i Treadmill... -
Page 12: Folding Instructions
(F). When the lower point is reached with (F), the wheels of the treadmill will become active. To transport the treadmill, hold the treadmill at postition and lift the treadmill so it can roll over the ground with the wheels. VirtuFit TR-900i Treadmill... -
Page 13: Maintenance Treadmill
3. Use a dry cloth to clean the control panel and areas around the power switch. Use a soft clean cloth and cleanser to remove stubborn stains and dirt off the running belt. 4. Tighten the running belt once a month. 5. Keep your treadmill in a safe dry place away from heat and water. VirtuFit TR-900i Treadmill... -
Page 14: Maintenance Treadmill
Repeat process until the belt becomes central. (3) Running belt jam - If the running belt is in dead condition, use the Allen key to turn the screw 1/2 a turn both left and right until the jam solved (see fig 3). VirtuFit TR-900i Treadmill... -
Page 15: Problem Solutions
Check and reconnect the cable, or replace the with the controller, or controller controller breaks A: Speed sensor cable does not Check an reconnect the cable or replace the connect well with the controller controller E-03 B: Controller defected Replace the controller VirtuFit TR-900i Treadmill... -
Page 16: Problem Solutions
Well connect the wire or chang the wire connect well or wire defected No pulse B: Console circuitry defected Change the console Console A: The screw on the PCB is loose Tight the screw well short of display B: Console defected Change the console VirtuFit TR-900i Treadmill... -
Page 17: Control Panel
HRC-test (optional): Switch on the treadmill. Hold the HRC mental sensors with your hands, after a few seconds the heart rate display shows the heart rate value. NOTE: The measured value can not be considered as the basis of medical treatment and is an approximation. VirtuFit TR-900i Treadmill... - Page 18 Incline “+” “-” FUNCTION FUNCTION EXPLANATION DISTANCE Displays the distance value. CALORIE Displays the calorie value. TIME Displays the time value. INCLINE Displays the incline value. PULSE Displays the heart rate value. SPEED Displays the speed value. VirtuFit TR-900i Treadmill...
- Page 19 With this shortcut, the treadmill can go at once to the desired speed. Increase the incline by pressing this key. Decrease the incline by pressing this key. When the treadmill is moving, you can use this shortcut to go at once to the QUICK INCLINE desired incline. VirtuFit TR-900i Treadmill...
- Page 20 C: When in time settings, press “MODE” to set the distance. The distance window lights up. The initial time is 1.0 KM. Press “SPEED” “+” or “-” to set the distance. Setting range of the distance is: 1.0 ~ 99.0 KM. VirtuFit TR-900i Treadmill...
- Page 21 When the time reaches 0, the treadmill will stop slowly and the middle window will show “END” and a sound will go off; Pull out the safety key so the treadmill will stop immediately. The time window will display “Er-07” and a buzzer will sound. VirtuFit TR-900i Treadmill...
- Page 22 After setting, the user can press “START” to start the movement. The user’s special program will be saved. When the customer runs the next time, he can enter the corresponding mode and run the same program. VirtuFit TR-900i Treadmill...
-
Page 23: Control Panel
MP3 OPERATION LNSTRUCTION The console is with built-in double channel audio, switching regulated power supply, connect the adapter wire of audio with the audio source and MP3 input port of the console , then MP3 starts to perate. VirtuFit TR-900i Treadmill... -
Page 24: App Possibilities
Download the Kinomap app in the App Store or in Google Play Store by entering “Kinomap” in the search bar or follow one of the links below: Apple IOS App Store: https://itunes.apple.com/us/app/kinomap/id611177969 Google Android Play Store: https://play.google.com/store/apps/details?id=com.kinomap.training&hl=en VirtuFit TR-900i Treadmill... -
Page 25: Exploded Drawing
EXPLODED DRAWING VirtuFit TR-900i Treadmill... -
Page 26: Parts List
Allen countersunk head full thread screw M8X75 Screw M6X30XØ16 Motor bolt -1 M8X65 Hex full head screw M8X75 Screw ST4X16 Screw ST4X40 Phillips countersunk head self-tapping screw ST3X10 Phillips countersunk head self-tapping screw ST4X15 Screw M5X10 Screw M4X10 Phillips self-tapping screw ST4X15 VirtuFit TR-900i Treadmill... - Page 27 Serrated lock washers Ø5 Incline axle Ø25XØ17XØ10X6X1 Side rail guider Ø25XØ5X4.5 Wire protector Front roller Rear roller Cylinder Motor Incline motor Running desk Running belt Motor belt Side rail Console upper cover Console lower cover Panel Handle bar VirtuFit TR-900i Treadmill...
- Page 28 Front wheel Rear wheel Magnetic ring Console set Speed sensor Main wire Print wire Console wire Handle pulse Handvat pulse wire Console Power cord Power cord Wire (ground wire) Wire (ground wire) Current input Switch Power cord VirtuFit TR-900i Treadmill...
-
Page 29: Parts List
CONSOLE SET PARTS LIST Description Quantity Console set 78-1 PCB of meter 78-2 PCB of keyboard 78-3 Screen overlay 78-4 Keyboard overlay 78-5 Spring tip 78-6 Microswitch 78-7 Safety key iron 78-8 Safety sticker 78-9 Speaker Console upper cover Panel VirtuFit TR-900i Treadmill... -
Page 30: Training Instructions
The purpose of cooling down is to return the body to its normal or near normal, resting state at the end of each exercise session. A proper cool-down slowly lowers your heart rate and allows blood to return to the heart. VirtuFit TR-900i Treadmill... - Page 31 For questions or missing parts please contact your dealer.
