TR-200i Treadmill
User manual
EN

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TR-200i and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for VIRTUFIT TR-200i

Summary of Contents for VIRTUFIT TR-200i

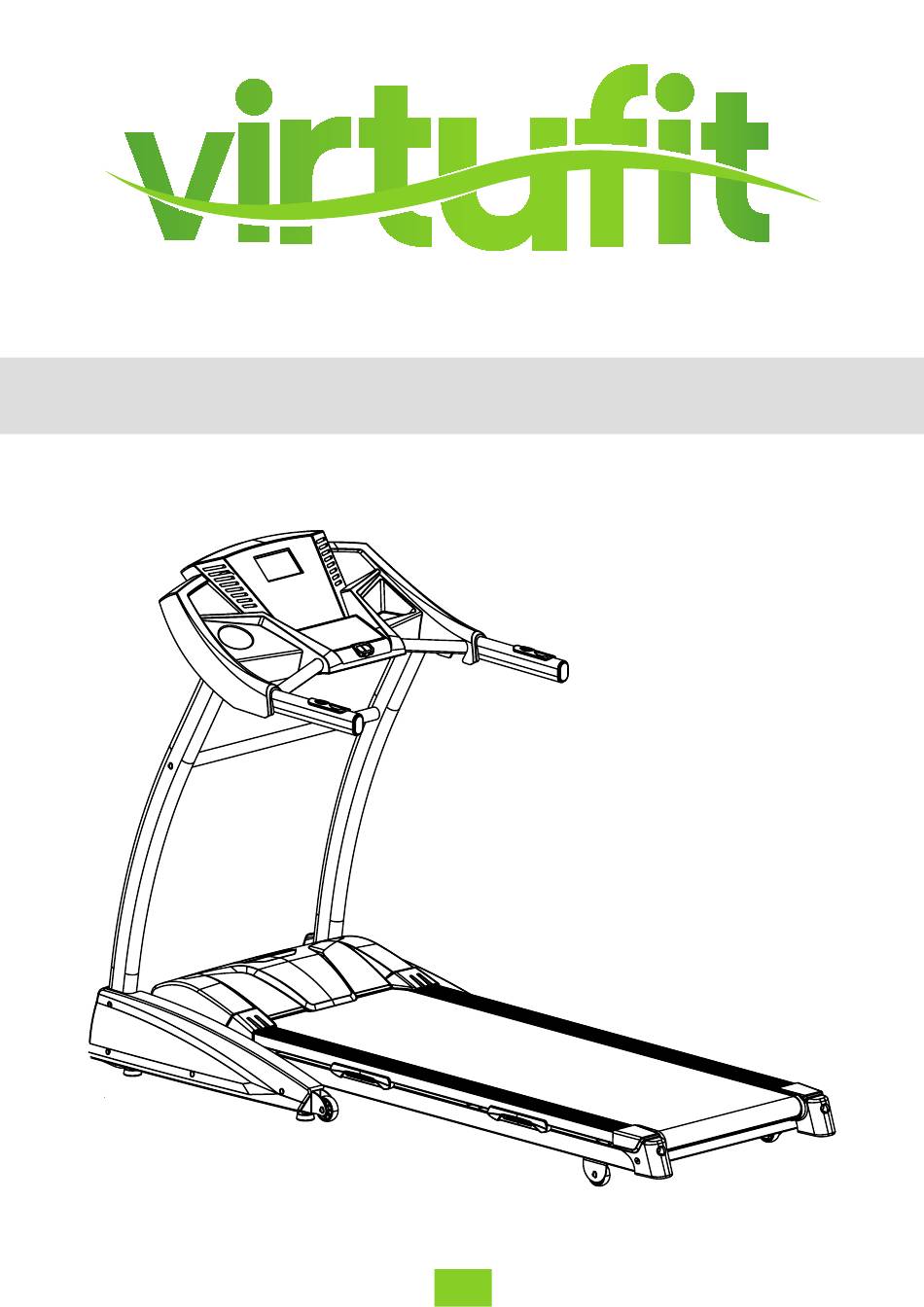

  • Page 1 TR-200i Treadmill User manual...
  • Page 2 17 - 18 TROUBLE SHOOTING TROUBLE SHOOTING 19 - 22 CONTROL PANEL CONTROL PANEL 23 - 26 PROGRAMS PROGRAMS APP INSTRUCTIONS APP INSTRUCTIONS EXPLODED DRAWING EXPLODED DRAWING 29 - 30 PARTS LIST PARTS LIST TRAINING INSTRUCTIONS TRAINING INSTRUCTIONS VirtuFit TR-200I Treadmill...

  • Page 3: Safety Instructions

    0.5 metres of free space all around it. – Before using the device, check that the nuts and bolts are securely tightened. – The safety of the device can only be maintained if it is regularly examined for damage and/or wear and tear. VirtuFit TR-200I Treadmill...
  • Page 4 – Maintenance assembly and repair work not carried out by an official dealer. – In the event of improper use, neglect and / or poor maintenance. – Failure to maintain the device in accordance with the manufacturer’s instructions (see the enclosed manual). VirtuFit TR-200I Treadmill...
  • Page 5 In this way you prevent the head of the socket head screw from being rotated. STEP 1 • Let the Upright cable thought the right upright. • Use the bolts and washer fix the left and right upright. VirtuFit TR-200I Treadmill...
  • Page 6 ASSEMBLY INSTRUCTIONS STEP 2 • Fix the strengthen tube to the uprights with bolts and washers. VirtuFit TR-200I Treadmill...
  • Page 7 ASSEMBLY INSTRUCTIONS STEP 3 • Connect the console cable and upright cable. • Assembly the console with bolts and washers. VirtuFit TR-200I Treadmill...
  • Page 8 ASSEMBLY INSTRUCTIONS STEP 4 • Fix the side covers with screws.n. VirtuFit TR-200I Treadmill...
  • Page 9 MODE and hold, then insert the safety key again, the machine enters into self-checking state. During this state, pressing START/STOP two times , the machine begins to self –check. It stops automatically after self-checking. Don’t stand on the machine when self-checking. VirtuFit TR-200I Treadmill...
  • Page 10 Remove the security key, press and hold MODE, then replace the security key. The treadmill is now in the “Self-check” mode, press START / STOP twice to perform installation. The treadmill now performs a check independently. IMPORTANT Do not stand on the treadmill when calibrating the treadmill. VirtuFit TR-200I Treadmill...

  • Page 11: Folding Instructions

    ATTENTION It’s forbidden to fold up when the machine is in running or incline mode. UNFOLDING Support place F with hand, kick the place E of air pressure bar, then the base frame will fall down automatically. VirtuFit TR-200I Treadmill...
  • Page 12 With your foot at “D”, slowly tilt the top of the treadmill downward towards the ground. Once the Main Frame “F” reaches a low enough point, the wheels of the treadmill will become active. VirtuFit TR-200I Treadmill...

  • Page 13: Daily Maintenance

    Be sure to clean the exposed area of the belt and the foot rails of the treadmill on both sides. In addition, wear clean shoes to reduce the risk of contamination of the treadmill. Remove the hood at least once a year to vacuum underneath. VirtuFit TR-200I Treadmill...

  • Page 14: Lubricating The Belt

    • Use a dry cloth to clean the control panel and areas around the power switch. Use a soft clean cloth and cleanser to remove stubborn stains and dirt off the running belt. • Tighten the running belt once a month. • Keep your treadmill in a safe dry place away from heat and water. VirtuFit TR-200I Treadmill...
  • Page 15 Use a soft clean cloth and detergent to remove stubborn stains and dirt from the treadmill. • Tighten the treadmill once a month. • Keep your treadmill away from heat and water in a safe, dry place. Regular maintenance prolongs the life of your treadmill and prevents injury! VirtuFit TR-200I Treadmill...

  • Page 16: Running Belt Adjustment

    Adjust the tightness of the tire in time, as it becomes looser through use. In this case, remove the safety pin and switch and turn the left and right adjusting bolts 1/4 turn clockwise. Start walking again until the tire has the correct tightness. VirtuFit TR-200I Treadmill...

  • Page 17: Troubleshooting

    2. Change the incline motor 1. Check the distance from speed sensor to the Speed error when self- magnetic of roller, and ajust it with 3mm checking 2. Change the speed sensor Short-Circuit problem Change the control board VirtuFit TR-200I Treadmill...
  • Page 18 Check Power Cable (You may need to take it to an electrician). • Ensure that the safety key is installed, as the treadmill will not power on without it. If you can not solve the problem, please contact your dealer. VirtuFit TR-200I Treadmill...

  • Page 19: Control Panel

    When running, press it to increase speed by 0.5km/h. Hold on it, speed is increased (4) SPEED + continuously. When running, press it to decrease speed by 0.5km/h.Hold on it, speed is deceased (5) SPEED - continuously. (6) QUICK Speed 3,6,9, when running, press it to choose speed. SPEED VirtuFit TR-200I Treadmill...
  • Page 20 When running, press it to increase speed by 0.5km/h. Hold on it, speed is increased in handvatten continuously. (13) SPEED - When running, press it to decrease speed by 0.5km/h.Hold on it, speed is deceased in handvatten continuously. VirtuFit TR-200I Treadmill...
  • Page 21 -’ key to desired speed. You may also press the rapid speed adjust keys: 3, 6, 9. • In a state of running, single press START/STOP, the walking belt will gradually slow down. • In the state of running, single press CLEAR/SET will reset time, distance, calorie. VirtuFit TR-200I Treadmill...
  • Page 22 HRC program. During this program, the speed and incline will change based on your heart rate. The incline become higher as soon as the pre-entered target heart rate has not yet been reached. If this heartbeat is exceeded, the speed and incline will decrease. VirtuFit TR-200I Treadmill...
  • Page 23 Program 1 Program 2 speed speed 12345678 91 0 123456789 minute minute Program 3 Program 4 speed speed 12345678 91 0 12345678 91 0 minute minute Program 5 Program 6 speed speed 123456789 123456789 minute minute VirtuFit TR-200I Treadmill...
  • Page 24 91 0 minute minute Program 12 Program 11 speed speed 123456789 123456789 minute minute Program 14 Program 13 speed speed 123456789 123456789 minute minute Program 16 Program 15 speed speed 12345678 91 0 12345678 91 0 minute minute VirtuFit TR-200I Treadmill...
  • Page 25 Program 21 Program 22 speed speed 123456789 12345678 minute minute Program 23 Program 24 speed speed 12345678 91 0 12345678 minute minute Program 25 Program 26 speed speed incline incline 12345678 91 0 123456789 minute minute VirtuFit TR-200I Treadmill...
  • Page 26 12345678 12345678 91 0 minute minute Program 34 Program 33 speed speed incline incline 123456789 12345678 91 0 minute minute Program 35 Program 36 speed speed incline incline 1 2345678 91 0 12345678 91 0 minute minute VirtuFit TR-200I Treadmill...

  • Page 27: App Instructions

    3. Scan the QR code on the right to go to the user manual of the app. The manual describes step by step how the app should be connected to the device, how the app works and what the options are. FITSHOW APP STORE GOOGLE PLAY USER MANUAL FITSHOW FITSHOW FITSHOW VirtuFit TR-200I Treadmill...

  • Page 28: Exploded Drawing

    EXPLODED DRAWING VirtuFit TR-200I Treadmill...

  • Page 29: Parts List

    Front roller Plastic cushion Rear roller Upper console cover Running deck Console board Running belt Keyboard V-belt Lower console cover Socket Main control board Switch Button board Power cord Safety key sensor Incline motor Sheet iron Motor VirtuFit TR-200I Treadmill...
  • Page 30 Black zinc screw M4*8 Screw ST4.2*38 Screw M8*50 Screw M8*16 Screw M8*12 Screw M8*55 Saddle washer Φ8 Hexagon bolt M8*35 Bolt M8*12 Bolt M8*16 Bolt M10*50 Bolt M10*65 Non-metallic hexagon locknut M10 Controller Speed sensor Incline easy key VirtuFit TR-200I Treadmill...

  • Page 31: Training Instructions

    The purpose of cooling down is to return the body to its normal or near normal, resting state at the end of each exercise session. A proper cool-down slowly lowers your heart rate and allows blood to return to the heart. VirtuFit TR-200I Treadmill...
  • Page 32 For questions or missing parts please contact your dealer.
