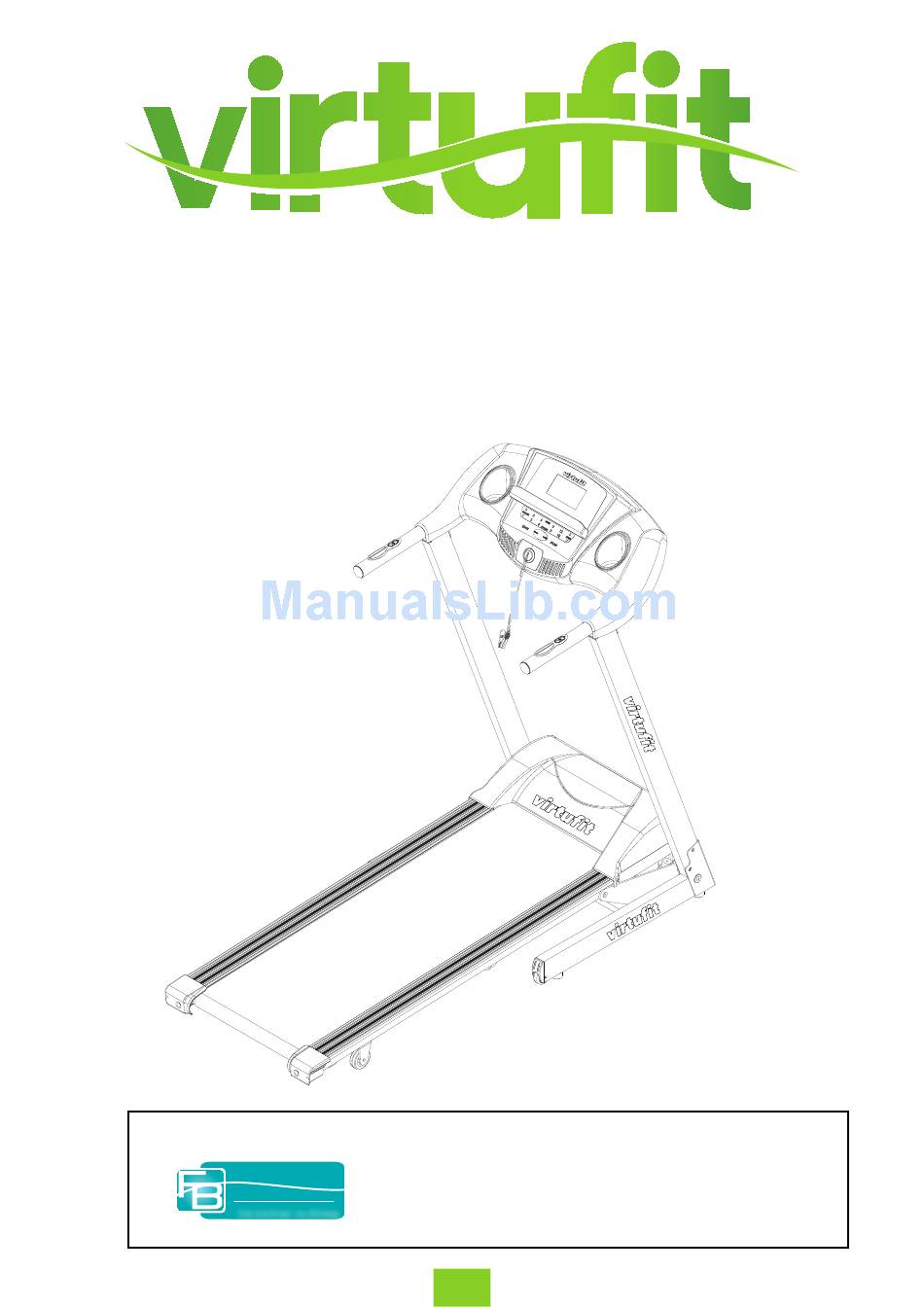

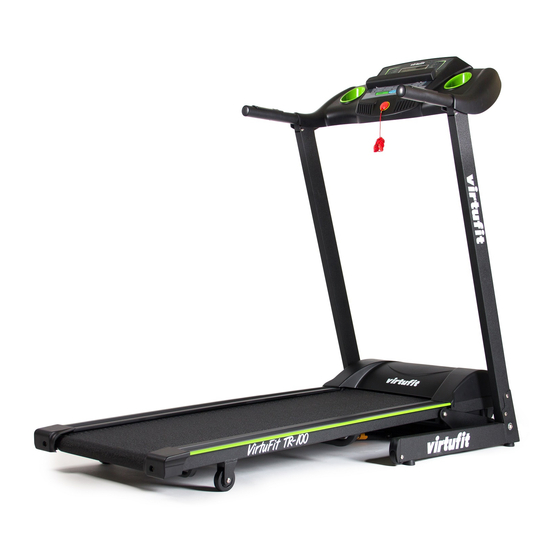

- Page 1 TR-100 Treadmill Owner’s manual For questions or missing parts please contact Fitness Benelux: Twekkelerweg 263 +31 (0)74-7600219 Fitness 7553 LZ Hengelo service@fitnessbenelux.nl Benelux Benelux The Netherlands www.fitnessbenelux.nl Uw partner in fitness...
-
Page 2: Safety Instruction
Treadmill is indoor-using equipment, not outdoor-using for avoiding damage. Keep the store-place clean and flat, drying. Prohibiting the other purpose using, only for workout. Please purchase the power-line to the distributor or contact with our company directly, for the power-line only equip to the treadmill. VirtuFit TR-100... - Page 3 .You must contact with the professional people directly while the line is damaged. This Treadmill only for home-using, the max user weight is 120 KGS. Please keep the space at least 1 X 2 meter at the end of base frame to escape any accidents! VirtuFit TR-100...
-
Page 4: Checklist (Contents Of Packaging)
Part list: DESCRIPTION SPECIFICATION NO S. Main Frame 5#Allen Wrench Bolt M8*16 Lock washer Safety key Oil bottle Bolt M8*45 MP3 wire Option Fixing tools: 5#Allen Wrench 5mm 1pcs Notice: Do not get through power before complete assembly VirtuFit TR-100... -
Page 5: Assembly Instruction
ASSEMBLY INSTRUCTION STEP 1 Open the carton, get out the above spare parts, put the Main Frame on the level ground. VirtuFit TR-100... - Page 6 Hold the console frame, use the 5# Allen Wrench, lock the console frame onto left and right upright tube with bolt M8*16(51)& lock washer (64) as the picture above Notice: When folding, please don’t press the computer connecting wires. VirtuFit TR-100...
- Page 7 ASSEMBLY INSTRUCTION STEP 3 Hold up the Upright. Notice: Please hold the L& R upright, avoid to have any hurt. VirtuFit TR-100...
- Page 8 II. Use 5# Allen wrench, drill through M8*16 Bolt (51) to Lock Washer (64) then lock the right upright tubes into the main frame. Reference the picture above. Attention: Hold the upright tube at when locking the upright tube to main frame VirtuFit TR-100...
- Page 9 ASSEMBLY INSTRUCTION STEP 5 Put on the safety key(71) on the computer VirtuFit TR-100...
-
Page 10: Folding Instruction
Please keep people and animal away to escape any hurt. ATTENTION: Please confirm complete assembly as the require above and lock all the bolt. Do the following operation after checking everything is OK. Before you use the treadmill, please read the instruction carefully. VirtuFit TR-100... -
Page 11: Technical Parameter
220-240/100-120-volt circuit and has a grounding plug that looks like the plug illustrated in sketch A in following figure. Make that the product is connected to an outlet having the same configuration as the plug. No adapter should be used with this product.(This picture is just reference) VirtuFit TR-100... - Page 12 OPERATION GUIDE LCD WINDOW DISPLAY TIME Show time DIST. Show distance CALO. Show calories PUSLE Show heart beat SPEED Show speed INCLINE Show incline VirtuFit TR-100...
-
Page 13: Key Function
Adjust the incline. Press the button to adjust incline section when run, and adjust the data when stop; INCLINE (3, 6, 9, 12) Adjust the incline quickly BUTTON ON LEFT HANDLE BAR Speed button; BUTTON ON RIGHT HANDLE BAR Incline button; VirtuFit TR-100... -
Page 14: Main Function
30 seconds. The heart beat data is just for reference, can not be as the medical data. VirtuFit TR-100... -
Page 15: Body Fat Test
Pull out the safety pulling rope, then the treadmill will stop immediately. All the windows display“---”, the buzzer will make 3 sound “B—B—”,now the treadmill must be stop. Attach the magnet end of the safety pulling rope to the computer, the treadmill will be at the beginning of running. VirtuFit TR-100... -
Page 16: Program Table
INCLINE 2 SPEED INCLINE 3 SPEED INCLINE 3 SPEED INCLINE 4 SPEED INCLINE 4 10 10 12 SPEED INCLINE 5 SPEED INCLINE 5 SPEED 10 7 10 10 7 10 10 INCLINE 4 SPEED INCLINE 1 SPEED SPEED SPEED VirtuFit TR-100... -
Page 17: Exercise Instruction
. You can acquaint the best efficiency of workout for calorie burning during the advertisement time and subsequent heart frequency increasing time. Finally , you should slow down the speed step by step for 4Mints. VirtuFit TR-100... -
Page 18: Exercise Frequency
Speed 7.5-9.0 KM/H jogging Speed 9.0-12.0 KM/H intermediate speed walking Speed 12.0-14.5 KM/H well experiences of running Speed 14.5-16.0 KM/H excellent runner Attention: The velocity of movement ≤6KM/H , the normal walking; The velocity of movement ≥8.0KM/H ,the runner. VirtuFit TR-100... - Page 19 (see Figure 4) V. Sartorius muscle (inner thigh muscles) stretch: Foot In contrast, the knee outward to sit down. The hands grasp the feet to the groin pull. Maintain 10 to 15 seconds, then relax. Repeat three times(see Figure 5). VirtuFit TR-100...
-
Page 20: Running Belt Adjustment
,the belt not too tight. You can adjust the distance between plates and belt, the belt be away from the plates about 50-75mm on both sides ,if the best not too tight and loose. VirtuFit TR-100... - Page 21 PIC C. Timely adjust the tightness of the belt ,for the looseness after a period of time running. Pull out of the safety lock and switch , turn the left and right adjusting bolt 1/4 turn clockwise, then re-start running, confirm the belt-tightness until the belt be right tightness. VirtuFit TR-100...
-
Page 22: Exploded Drawing
EXPLODED DRAWING GedetaiLLeerde tekeNiNG VirtuFit TR-100 VirtuFit TR-100... -
Page 23: Parts List
Running belt Foot pad Ring wire protector B transportation wheel Interval tube Standard power wire switch foam Bolt ST4.2*13 Computer up cover Computer sealing Bolt ST4.2*20 Computer Overload protector Control board Computer bottom wire Computer up wire Cushion VirtuFit TR-100... - Page 24 Lock washer Bolt M6*37 Bolt M6*35 Bolt M8*45 Safety key Oil bottle Bolt M6*35 Bolt ST4.2*25 Incline motor Bolt M10*42 Lock washer 1 nut lock Bolt M10*20 Plat ring Wheel cover Nylon isolation mat Ipad frame MP3 wire Option VirtuFit TR-100...
-
Page 25: Troubleshooting Guide
I. remove the computer wire installed on the controller(safety lock),turn on the power,press the small key on the right conner of controller 2 seconds II. release this key,the incline motor will detect signal by itself,and lift to the highest level,fallen down to the lowest level after a while VirtuFit TR-100... - Page 26 II. Please check the hand heartbeat cables damaged or not, connecting terminal is good contact or not III. change PCB or computer HAND BUTTON NO ACTION Solution: I.Please check the hand heartbeat cables damaged or not, connecting terminal is good contact or not, II.change the computer VirtuFit TR-100...
- Page 27 Solution: I. Please check the wire of hand pulse is ok or not, connecting terminal is good contact or not II. Please change the hand pulse. For questions or missing parts please contact Fitness Benelux: Twekkelerweg 263 +31 (0)74-7600219 Fitness 7553 LZ Hengelo service@fitnessbenelux.nl Benelux Benelux The Netherlands www.fitnessbenelux.nl Uw partner in fitness VirtuFit TR-100...
