Summary of Contents for Smartgen BAC06T

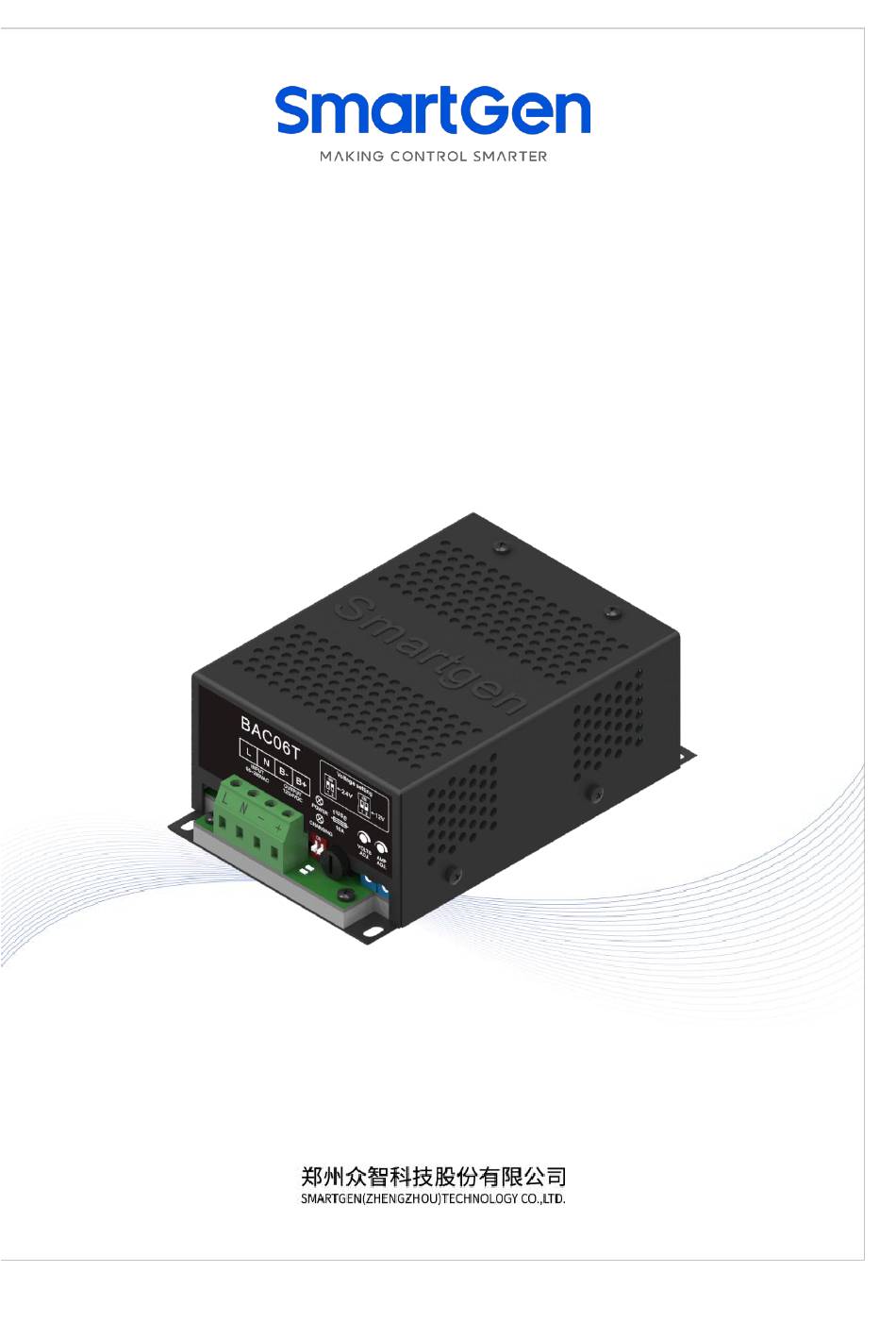

- Page 1 BAC06T BATTERY CHARGER USER MANUAL...
- Page 2 Smartgen Technology at the address above. Any reference to trademarked product names used within this publication is owned by their respective companies. SmartGen Technology reserves the right to change the contents of this document without prior notice. Table 1 – Version History Date...
-
Page 3: Table Of Contents
PERFORMANCE AND CHARACTERISTICS ..................4 CHARGING PRINCIPLE ........................4 SPECIFICATION ............................5 SETTING ...............................5 DIP SWITCH ........................... 5 VOLTAGE ADJUSTMENT ......................5 CURRENT ADJUSTMENT ......................5 OPERATION ............................6 PANEL DRAWING DESCRIPTION ....................6 TROUBLESHOOTING ........................6 CASE DIMENSIONS ..........................7 BAC06T Battery Charger Page 3 of 7... -
Page 4: Overview

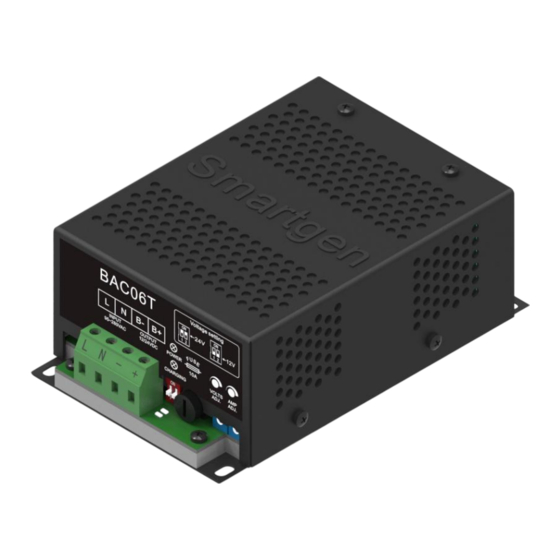

1 OVERVIEW BAC06T battery charger adopts the latest switch power components, which is designed for charging lead-acid starting battery according to its property. The charger is suitable for lead-acid battery float charge. The maximum charge current for 12V charger is 6A; the maximum charge current for 24V charger is 3A. -
Page 5: Specification
Output connects battery pack, when charging voltage is not higher than 25.0V (12.5V) measure charging current; adjust the current potentiometer (AMP) and set proper charge current. Output current can also be estimated according to the current potentiometer scales. BAC06T Battery Charger Page 5 of 7... -
Page 6: Operation
6 OPERATION 6.1 PANEL DRAWING DESCRIPTION Fig.2 — BAC06T Panel Drawing — Terminals L and N connect AC 220V, using multi-strand BVR 1mm copper wires. — Terminals B+ and B- connect battery positive and negative, using multi-strand BVR1.5mm copper wires. -
Page 7: Case Dimensions
Put a new fuse into the block, press the slotted screwdriver and screw clockwise. NOTE: improper operation or over tightening may damage the block. 7 CASE DIMENSIONS Fig.3 — BAC06T Dimension _________________________________ BAC06T Battery Charger Page 7 of 7...
